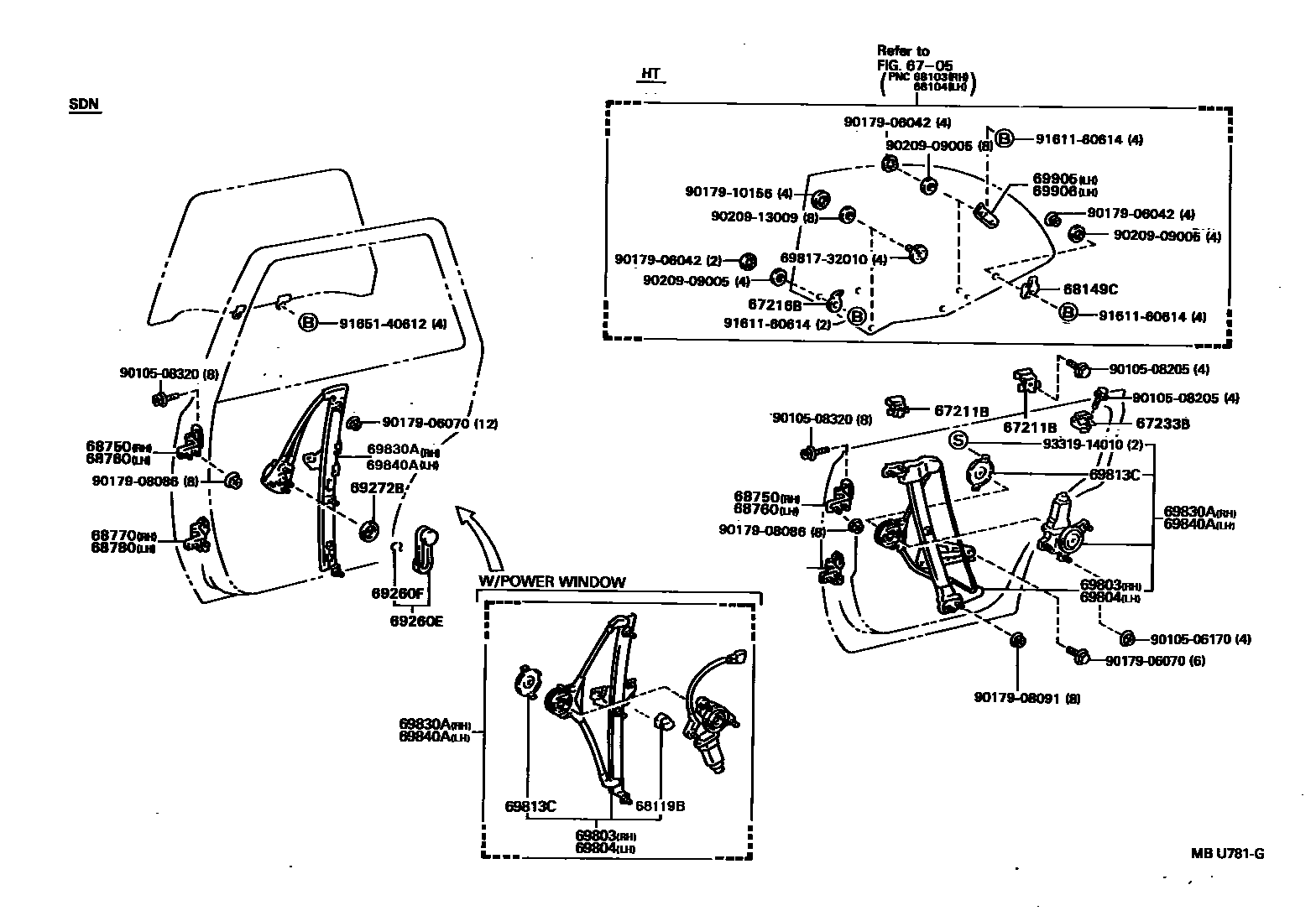

REAR DOOR WINDOW REGULATOR & HINGE

6705

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32040iCV30,SV3#,VZV3#..HT199007-199406

67216BSTOPPER, REAR DOOR GLASS, UPPER NO.2

main67216-32020iCV30,SV3#,VZV3#..HT199007-199406

67233BSUPPORT, REAR DOOR TRIM

main67233-32010iCV30,SV3#,VZV3#..HT199007-199303

STAMPED NO.1

sub67233-32040

main67233-32020iCV30,SV3#,VZV3#..HT199007-199303

STAMPED NO.2

sub67233-32050

main67233-32030iCV30,SV3#,VZV3#..HT199007-199303

STAMPED NO.3

sub67233-32060

main67233-32040iCV30,SV3#,VZV3#..HT199303-199406

STAMPED NO.1

main67233-32050iCV30,SV3#,VZV3#..HT199303-199406

STAMPED NO.2

main67233-32060iCV30,SV3#,VZV3#..HT199303-199406

STAMPED NO.3

68119BCUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2

main69888-33011iCV30,SV3#..SED199206-199406

68149CSTABILIZER, REAR DOOR GLASS MALE

main68149-20010iCV30,SV3#,VZV3#..HT199007-199406

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32040iCV30,SV3#,VZV3#199007-199106

sub68750-32041

main68750-32041iCV30,SV3#,VZV3#199106-199406

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32040iCV30,SV3#,VZV3#199007-199106

sub68760-32041

main68760-32041iCV30,SV3#,VZV3#199106-199406

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32040iCV30,SV3#..SED199007-199106

sub68770-32041

main68770-32041iCV30,SV3#..SED199106-199406

main68770-32050iCV30,SV3#,VZV3#..HT199007-199106

sub68770-32051

main68770-32051iCV30,SV3#,VZV3#..HT199106-199406

sub68770-50030

68780HINGE ASSY, REAR DOOR, LOWER LH

main68770-32050iCV30,SV3#,VZV3#..HT199007-199106

sub68770-32051

main68770-32051iCV30,SV3#,VZV3#..HT199106-199406

sub68770-50030

main68780-32040iCV30,SV3#..SED199007-199106

sub68780-32041

main68780-32041iCV30,SV3#..SED199106-199406

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-32010-02iCV30,SV30,35..VL,XT,ZV199007-199206

TAUPE,TRIM9#

sub69260-32010

main69260-32010-03iCV30,SV30,35..VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

sub69260-32010

main69260-32010-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

sub69260-32010

main69260-32010-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

sub69260-32010

main69260-32010-S4iSV30..VL,XT199206-199406

MEDIUM GRAY,TRIM1#

sub69260-32010

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCV30,SV30,35..VL,XT,ZV199007-199406

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCV30,SV30,35..VL,XT,ZV199007-199206

NATURAL WHITE,TRIM1#,9#

sub69285-22010

main69285-22010-08iSV30..VL,XT199206-199406

NATURAL WHITE,TRIM1#,4#,9#

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32050iCV30,SV3#..SED199007-199406

main69803-32060iCV30,SV3#,VZV3#..HT199007-199406

sub69803-32061

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32050iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)199007-199406

main69804-32060iCV30,SV3#,VZV3#..HT199007-199406

sub69804-32061

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-32010iCV30,SV3#..SED199007-199406

main69813-32030iCV30,SV3#,VZV3#..HT199007-199406

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-32080iCV30,SV30,35..VL,XT,ZV199007-199406

main69830-32090iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main69830-32090iSV30..VL,XT199206-199406

main69830-32100iCV30,SV3#,VZV3#..HT199007-199406

sub69830-32101

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-32080iCV30,SV30,35..VL,XT,ZV199007-199406

main69840-32090iCV30,SV30,35..ZV199007-199406

main69840-32090iSV30..VL,XT199206-199406

main69840-32100iCV30,SV3#,VZV3#..HT199007-199406

sub69840-32101

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-32040iCV30,SV3#,VZV3#..HT199007-199406

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-32030iCV30,SV3#,VZV3#..HT199007-199406

6981732010PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-32010

9010506170

main90105-06170

9010508205

main90105-08205

9010508320

main90105-08320

9017906042

main90179-06042

9017906070

main90179-06070

9017908086

main90179-08086

9017908091

main90179-08091

9017910156

main90179-10156

9020909005

main90209-09005

9020913009

main90209-13009

9161160614

main91611-60614

9165140612

main91651-40612

9331914010

main93319-14010

34 parts on this diagram · 1 diagram in section
