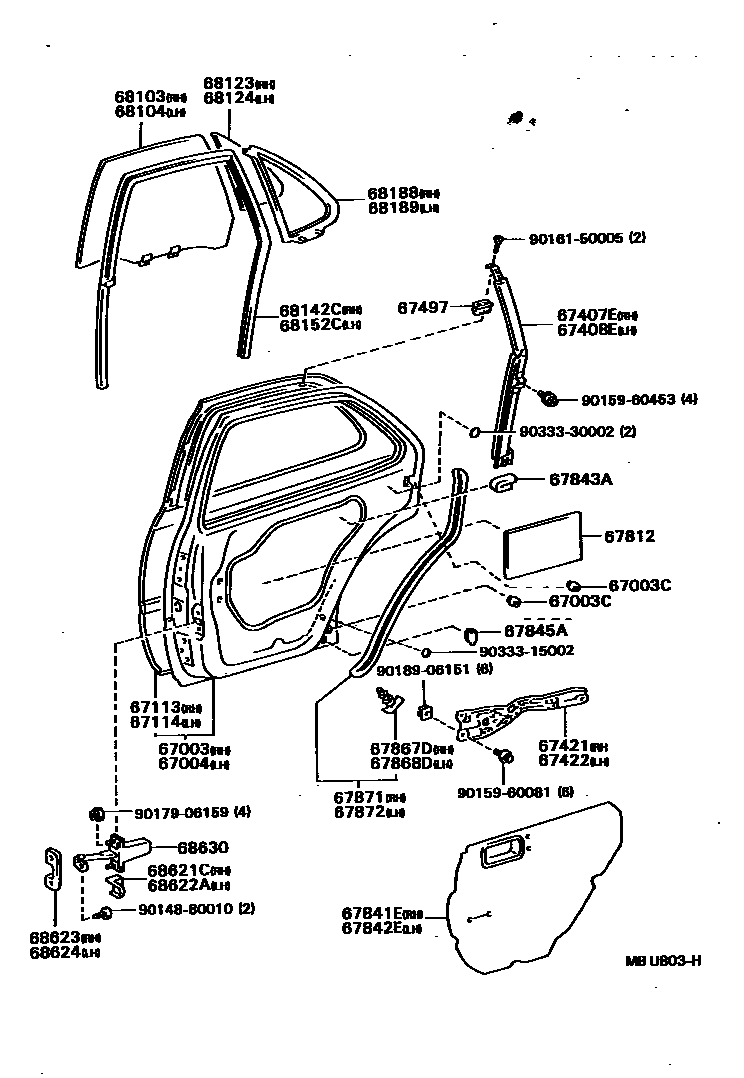

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-32290iCV30,SV3#..SED199007-199206

sub67003-33010

main67003-32300iCV30,SV3#,VZV3#..HT199007-199206

sub67003-32310

main67003-32310iVZV3#199105-199406

main67003-33010iCV30,SV3#..SED199206-199406

sub67003-33011

67003CCUSHION, REAR DOOR PANEL

main90541-09006iCV30,SV3#..SED199007-199210

main90541-09006iCV30,SV3#..SED199210-199406

UPR

main90541-09069iCV30,SV3#,VZV3#..HT199007-199406

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-32290iCV30,SV3#..SED199007-199206

sub67004-33010

main67004-32300iCV30,SV3#..HT199007-199206

sub67004-32310

main67004-32310iCV30,SV3#,VZV3#..HT199105-199406

main67004-33010iCV30,SV3#..SED199206-199406

sub67004-33011

67113PANEL, REAR DOOR, OUTER RH

main67113-32090iCV30,SV3#..SED199007-199406

sub67113-32091

main67113-32100iCV30,SV3#,VZV3#..HT199007-199406

67114PANEL, REAR DOOR, OUTER LH

main67114-32090iCV30,SV3#..SED199007-199406

sub67114-32091

main67114-32100iCV30,SV3#,VZV3#..HT199007-199406

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-32060iCV30,SV3#..SED199007-199406

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-32060iCV30,SV3#..SED199007-199406

67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH

main67421-32050iCV30,SV3#..SED199007-199406

main67421-32060iCV30,SV3#,VZV3#..HT199007-199406

67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH

main67422-32050iCV30,SV3#..SED199007-199406

main67422-32060iCV30,SV3#,VZV3#..HT199007-199406

67497BRACKET, REAR DOOR FRAME

main67497-32010iCV30,SV3#..SED199007-199205

main67497-33020iCV30,SV3#..SED199205-199406

67812PAD, REAR DOOR SILENCER

main67811-30050iCV30,SV3#,VZV3#..HT199206-199406

main67811-33010iVZV3#199105-199206

sub67811-30050

main67812-12010iCV30,SV3#,VZV3#199007-199206

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-32080iCV30,SV3#..SED199007-199106

sub67841-32081

main67841-32081iCV30,SV3#..SED199106-199109

sub67841-32100

main67841-32090iCV30,SV3#,VZV3#..HT199007-199406

sub67841-33010

main67841-32100iCV30,SV3#..SED199109-199406

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-32050iCV30,SV3#..SED199007-199106

sub67842-32051

main67842-32051iCV30,SV3#..SED199106-199109

sub67842-32070

main67842-32060iCV30,SV3#,VZV3#..HT199007-199406

sub67842-33010

main67842-32070iCV30,SV3#..SED199109-199406

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-32020iCV30,SV3#..SED199007-199406

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67845-32010iCV30,SV3#..SED199007-199406

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-20160iCV30,SV3#,VZV3#..HT199206-199406

sub67867-12150

main67868-22020iCV30,SV3#..SED199007-199406

LOWER

sub67867-12150

main67868-30050iCV30,SV3#..SED199007-199406

UPPER(TOP)

sub67867-12150

main67868-32040iCV30,SV3#,VZV3#..HT199007-199206

sub67867-20160

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-20160iCV30,SV3#,VZV3#..HT199308-199406

sub67867-12150

main67867-22020iCV30,SV3#..SED199007-199106

LOWER

main67868-22020iCV30,SV3#..SED199106-199406

LOWER

sub67867-12150

main67868-30050iCV30,SV3#..SED199007-199406

UPPER(TOP)

sub67867-12150

main67868-32040iCV30,SV3#,VZV3#..HT199007-199308

sub67867-20160

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32090iCV30,SV3#..SED199007-199406

main67871-32100iCV30,SV3#,VZV3#..HT199007-199406

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32090iCV30,SV3#..SED199007-199406

main67872-32100iCV30,SV3#,VZV3#..HT199007-199406

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-32110iCV30,SV30,35..VL,XT,ZV199007-199206

main68103-32120iCV30,SV3#..SED199007-199406

main68103-32130iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main68103-32150iCV30,SV3#,VZV3#..HT199007-199406

main68103-32160iCV30,SV3#,VZV3#..HT199007-199406

sub68103-32150

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-32110iCV30,SV30,35..VL,XT,ZV199007-199206

main68104-32120iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main68104-32130iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main68104-32150iCV30,SV3#,VZV3#..HT199007-199406

main68104-32160iCV30,SV3#,VZV3#..HT199007-199406

sub68104-32150

68123GLASS, REAR DOOR WINDOW, RH

main68123-32010iCV30,SV30,35..VL,XT,ZV199007-199206

main68123-32020iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main68123-32030iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

68124GLASS, REAR DOOR WINDOW, LH

main68124-32010iCV30,SV30,35..VL,XT,ZV199007-199206

main68124-32020iCV30,SV3#..SED199007-199406

main68124-32030iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

68142CRUN, REAR DOOR GLASS, RH

main68142-32060iCV30,SV3#..SED199007-199406

68152CRUN, REAR DOOR GLASS, LH

main68152-32020iCV30,SV3#..SED199007-199406

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-32010iCV30,SV3#..SED199007-199406

sub68188-32011

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-32010iCV30,SV3#..SED199007-199406

sub68189-32011

68621CCOVER, REAR DOOR CHECK, RH

main68621-32010iCV30,SV3#,VZV3#199007-199308

sub68621-30020

68622ACOVER, REAR DOOR CHECK, LH

main68622-32010iCV30,SV3#,VZV3#199007-199308

sub68622-30020

68623COVER, DOOR CHECK, RH

main68623-32010iCV30,SV3#..SED199007-199308

68624COVER, DOOR CHECK, LH

main68623-32010iCV30,SV3#..SED199007-199308

68630CHECK ASSY, REAR DOOR

main68630-32050iCV30,SV3#..SED199007-199308

main68630-32060iCV30,SV3#,VZV3#..HT199007-199308

sub68630-32100

main68630-32070iCV30,SV3#,VZV3#..HT199308-199406

main68630-33011iCV30,SV3#..SED199308-199406

main68640-32010iCV30,SV3#,VZV3#..HT199308-199406

main68640-32030iCV30,SV3#,VZV3#..HT199007-199308

sub68640-32060

main68640-32040iCV30,SV3#..SED199007-199308

main68640-33011iCV30,SV3#..SED199308-199406

9014880010

main90148-80010

9015960081

main90159-60081

9015960453

main90159-60453

9016150005

main90161-50005

9017906159

main90179-06159

9018906151

main90189-06151

9033315002

main90333-15002

9033330002

main90333-30002

40 parts on this diagram · 3 diagrams in section
