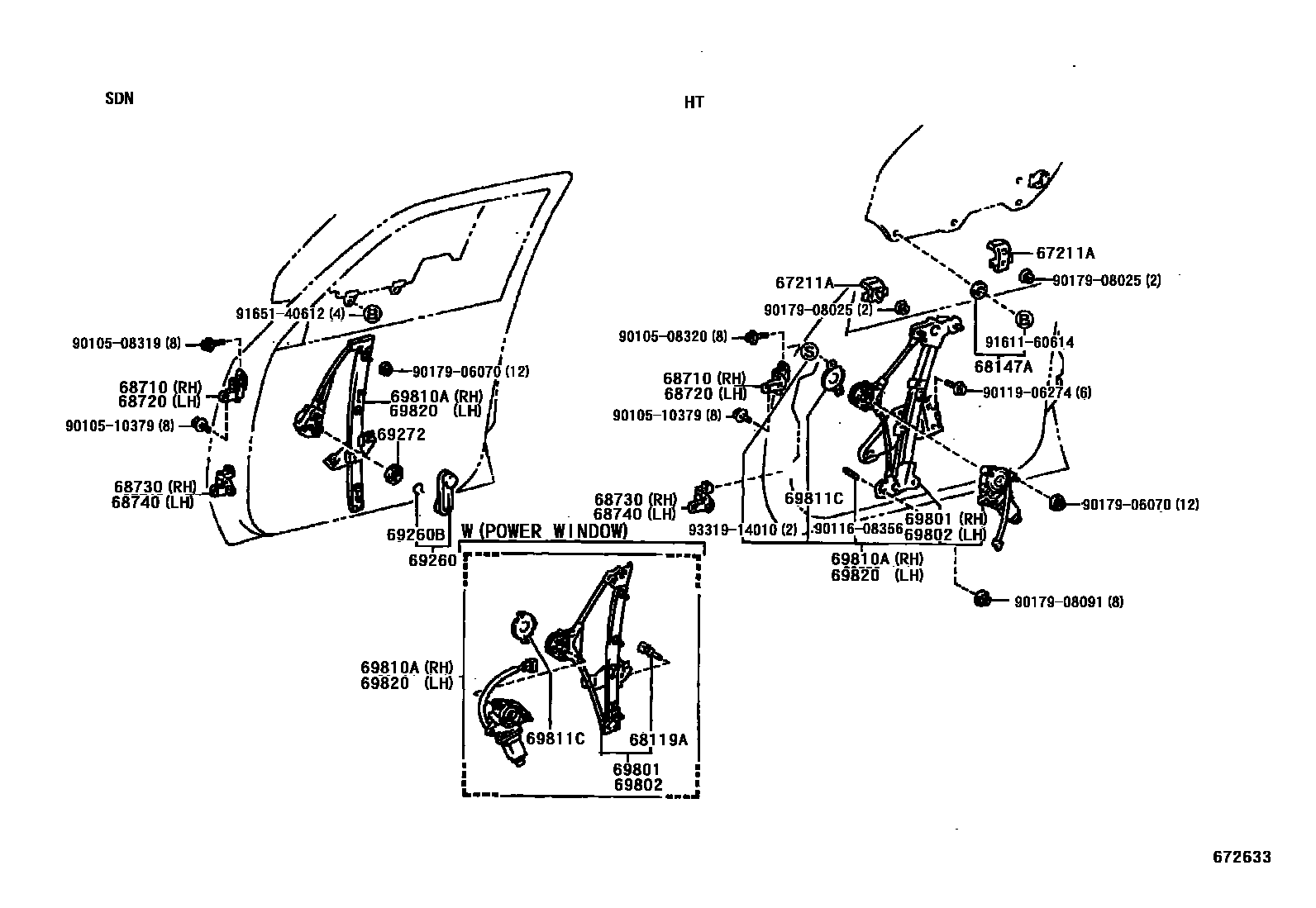

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-32051iCV30,SV3#,VZV3#..HT199007-199406

REAR

sub67211-32052

main67211-32071iCV30,SV3#,VZV3#..HT199007-199406

FRONT

68119ACUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1

main69887-33010iCV30,SV30,35..ZV199007-199406

main69888-33011iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199206

68147ASTOP, FRONT DOOR GLASS, UPPER

main67205-32010iCV30,SV3#,VZV3#..HT199007-199406

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32040iCV30,SV3#..SED199007-199406

sub68710-32050

main68710-32050iCV30,SV3#,VZV3#..HT199007-199406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32040iCV30,SV3#..SED199007-199406

sub68720-32050

main68720-32050iCV30,SV3#,VZV3#..HT199007-199406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32030iCV30,SV3#,VZV3#199007-199406

main68730-32040iCV30,SV3#,VZV3#..HT199007-199105

sub68730-32030

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-32030iCV30,SV3#..SED199007-199406

main68730-32040iCV30,SV3#,VZV3#..HT199007-199105

sub68730-32030

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-32010-02iCV30,SV30,35..VL,XT,ZV199007-199206

TAUPE,TRIM9#

sub69260-32010

main69260-32010-03iCV30,SV30,35..VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

sub69260-32010

main69260-32010-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

sub69260-32010

main69260-32010-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

sub69260-32010

main69260-32010-S4iSV30..VL,XT199206-199406

MEDIUM GRAY,TRIM1#

sub69260-32010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCV30,SV30,35..VL,XT,ZV199007-199406

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCV30,SV30,35..VL,XT,ZV199007-199206

NATURAL WHITE,TRIM1#,9#

sub69285-22010

main69285-22010-08iSV30..VL,XT199206-199406

NATURAL WHITE,TRIM1#,4#,9#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-32060iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)199007-199406

main69801-32070iCV30,SV3#,VZV3#..HT199007-199406

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-32050iCV30,SV3#..SED199007-199406

main69802-32070iCV30,SV3#,VZV3#..HT199007-199406

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-32100iCV30,SV30,35..VL,XT,ZV199007-199406

main69810-32110iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main69810-32110iCV30,SV30,35..ZV199007-199406

main69810-32120iCV30,SV3#,VZV3#..HT199007-199406

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040iCV30,SV3#..SED199007-199406

main69811-32050iCV30,SV3#,VZV3#..HT199007-199406

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-32090iCV30,SV30,35..VL,XT,ZV199007-199406

main69820-32110iCV30,SV30,35..ZV199007-199406

main69820-32110iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main69820-32120iCV30,SV3#,VZV3#..HT199007-199406

9010508319

main90105-08319

9010508320

main90105-08320

9010510379

main90105-10379

9011608356

main90116-08356

9011906274

main90119-06274

9017906070

main90179-06070

9017908025

main90179-08025

9017908091

main90179-08091

9161160614

main91611-60614

9165140612

main91651-40612

9331914010

main93319-14010

26 parts on this diagram · 1 diagram in section
