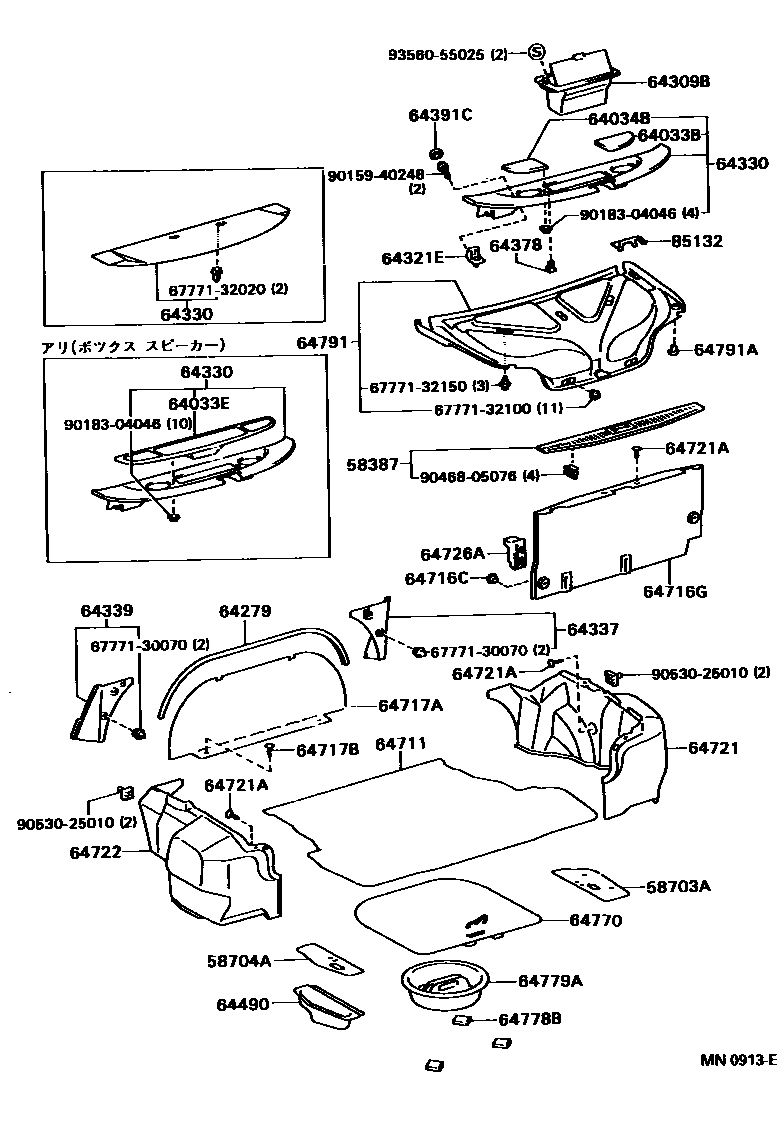

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-32030-01iCV30,SV3#..SED199007-199206

BLACK,TRIM1#,9#

sub58387-32030

main58387-32030-22iCV30,SV3#..SED199206-199406

BLACK,TRIM1#,4#,9#

sub58387-32030

main58387-32040-01iCV30,SV3#,VZV3#..HT199007-199206

BLACK,TRIM1#,4#,9#

sub58387-32040

main58387-32040-22iCV30,SV3#,VZV3#..HT199206-199406

BLACK,TRIM1#,4#,9#

sub58387-32040

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32040iCV30,SV3#,VZV3#199007-199406

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32050iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199406

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-32070-02iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64033-32070

main64033-32070-03iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64033-32070

main64033-32070-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub64033-32070

main64033-32070-E1iCV30,SV30,35..ETO199312-199406

sub64033-32070

main64033-32070-E1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64033-32070

main64033-32070-E1iCV30,SV30,35..ETO199312-199406

sub64033-32070

main64033-32070-K1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64033-32070

main64033-32070-S4iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64033-32070

main64033-32070-S4iCV30,SV30,35..LUM199312-199406

sub64033-32070

main64033-32070-S4iCV30,SV30,35..LUM199312-199406

sub64033-32070

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-32080-02iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64033-32080

main64033-32080-03iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64033-32080

main64033-32080-06iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub64033-32080

main64033-32080-E1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64033-32080

main64033-32080-K1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64033-32080

main64033-32080-S4iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64033-32080

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-32040-02iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64034-32040

main64034-32040-03iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64034-32040

main64034-32040-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub64034-32040

main64034-32040-E1iCV30,SV30,35..LUM199312-199406

sub64034-32040

main64034-32040-E1iCV30,SV30,35..ETO199312-199406

sub64034-32040

main64034-32040-E1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64034-32040

main64034-32040-K1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64034-32040

main64034-32040-S4iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64034-32040

main64034-32040-S4iCV30,SV30,35..LUM199312-199406

sub64034-32040

main64034-32040-S4iCV30,SV30,35..LUM199312-199406

sub64034-32040

64279PROTECTOR, ROOM PARTITION

main64279-32040iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

sub64279-32041

main64279-32040iCV30,SV30..HT..ETO199105-199206

sub64279-32041

main64279-32040iCV30,SV30..HT..ETO199212-199303

sub64279-32041

main64279-32040iCV30,SV30,35..ETO199304-199307

sub64279-32041

main64279-32040iCV30,SV30,35..ETO199308-199312

sub64279-32041

main64279-32040-C0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199307

BLACK,TRIM1#,4#,9#

sub64279-32041

main64279-32041-C0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199307-199308

BLACK,TRIM1#,4#,9#

sub64279-32042

main64279-32042-C0iCV30,SV30,35..ETO199312-199406

sub64279-33012

main64279-32042-C0iCV30,SV30,35..ETO199312-199406

sub64279-33012

main64279-32042-C0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199308-199406

BLACK,TRIM1#,4#,9#

sub64279-33012

64309BPOCKET SUB-ASSY, PACKAGE TRAY TRIM

main64309-32010-02iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64309-32010

main64309-32010-03iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64309-32010

main64309-32010-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub64309-32010

main64309-32010-E0iCV30,SV30,35..LUM199312-199406

sub64309-32010

main64309-32010-E0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64309-32010

main64309-32010-E0iCV30,SV30,35..LUM199312-199406

sub64309-32010

main64309-32010-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64309-32010

main64309-32010-S4iCV30,SV30,35..ETO199312-199406

sub64309-32010

main64309-32010-S4iCV30,SV30,35..ETO199312-199406

sub64309-32010

main64309-32010-S4iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64309-32010

64321EBRACKET, PACKAGE TRAY TRIM

main64321-32010iCV30,SV30,35..ETO199312-199406

main64321-32010iCV30,SV30,35..ETO199308-199406

main64321-32010iCV30,SV30,35..ETO199304-199307

main64321-32010iCV30,SV3#..HT..(ETO,VE);CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32250-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32250

main64330-32250-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32250

main64330-32250-B0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32250

main64330-32250-E1iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32250

main64330-32250-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32250

main64330-32260-02iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

TAUPE,TRIM9#

sub64330-32260

main64330-32260-03iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

MEDIUM GRAY,TRIM1#

sub64330-32260

main64330-32340-B0iCV30,SV3#..SED..(ETO,LUM,VL,XT)199206-199406

MI.GRAY,TRIM1#

sub64330-32340

main64330-32340-E1iCV30,SV3#..SED..(ETO,LUM,VL,XT)199206-199406

OAK,TRIM4#

sub64330-32340

main64330-32340-K0iCV30,SV3#..SED..(ETO,LUM,VL,XT)199206-199406

TAUPE,TRIM9#

sub64330-32340

main64330-32350-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

TAUPE,TRIM9#

main64330-32350-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

MEDIUM GRAY,TRIM1#

main64330-32360-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32360

main64330-32360-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32360

main64330-32360-B0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32360

main64330-32360-E1iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32360

main64330-32360-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32360

main64330-32370-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32370

main64330-32370-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

sub64330-32370

main64330-32370-16iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32370

main64330-32370-E1iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32370

main64330-32370-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub64330-32370

main64330-32380-02iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32380

main64330-32380-03iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32380

main64330-32380-06iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32380

main64330-32380-B0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32380

main64330-32380-E1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32380

main64330-32380-K0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32380

main64330-32390-02iCV30,SV30,35..HT..ETO199007-199206

TAUPE,TRIM9#

sub64330-32390

main64330-32390-03iCV30,SV30,35..HT..ETO199007-199206

MEDIUM GRAY,TRIM1#

sub64330-32390

main64330-32390-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

sub64330-32390

main64330-32390-16iCV30,SV3#..HT..ETO199206-199406

sub64330-32390

main64330-32390-E1iCV30,SV3#..HT..ETO199206-199406

sub64330-32390

main64330-32390-K0iCV30,SV3#..HT..ETO199206-199406

sub64330-32390

main64330-32400-B0iCV30,SV30,35..SED..ETO199312-199406

main64330-32400-B0iCV30,SV30,35..LUM199312-199406

main64330-32400-B0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

MI.GRAY,TRIM1#

main64330-32400-E1iCV30,SV30,35..LUM199312-199406

main64330-32400-E1iCV30,SV30,35..SED..ETO199312-199406

main64330-32400-E1iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

main64330-32400-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

TAUPE,TRIM9#

main64330-32401-B0iCV30,SV30,35..SED..ETO199304-199307

main64330-32401-B0iCV30,SV30,35..SED..ETO199308-199312

main64330-32401-E1iCV30,SV30,35..SED..ETO199304-199307

main64330-32401-E1iCV30,SV30,35..SED..ETO199308-199312

main64330-32410-B0iCV30,SV3#..HT..ETO199206-199406

MI.GRAY,TRIM1#

main64330-32410-E1iCV30,SV3#..HT..ETO199206-199406

OAK,TRIM4#

main64330-32410-K0iCV30,SV3#..HT..ETO199206-199406

TAUPE,TRIM9#

main64330-32420-02iVZV30,32199007-199106

main64330-32420-02iSV30,32,33..HT..VE199007-199206

TAUPE,TRIM9#

main64330-32420-02iCV30,SV30..HT..ETO199105-199206

main64330-32420-03iSV30,32,33,VZV30,31..HT..(PRO,VE)199007-199206

MEDIUM GRAY,TRIM1#

main64330-32420-03iCV30,SV30..HT..ETO199105-199206

main64330-32420-03iSV30,32,33..HT..VE199007-199106

main64330-32420-06iVZV30,32199007-199106

main64330-32420-06iVZV30,32199007-199206

SABLE,TRIM4#

main64330-32430-B0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

MI.GRAY,TRIM1#

main64330-32430-B0iCV30,SV30,35..HT..ETO199312-199406

main64330-32430-E1iCV30,SV30,35..HT..ETO199312-199406

main64330-32430-E1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

OAK,TRIM4#

main64330-32430-K0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

TAUPE,TRIM9#

main64330-32440-02iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

TAUPE,TRIM9#

main64330-32440-03iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

MEDIUM GRAY,TRIM1#

main64330-32440-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

main64330-32450-02iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32450

main64330-32450-03iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32450

main64330-32450-06iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32450

main64330-32450-B0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32450

main64330-32450-E1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32450

main64330-32450-K0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32450

main64330-32460-02iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32460

main64330-32460-03iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32460

main64330-32460-06iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199206

sub64330-32460

main64330-32460-16iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32460

main64330-32460-E1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32460

main64330-32460-K0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

sub64330-32460

main64330-32470-02iVZV30,31199106-199206

main64330-32470-02iVZV30,32199007-199106

main64330-32470-03iVZV30,32199007-199106

main64330-32470-03iVZV30,31199106-199206

main64330-32470-06iVZV30,32199007-199106

main64330-32470-06iVZV30,31199106-199206

main64330-32480-B0iCV30,SV30,35..HT..ETO199308-199312

main64330-32480-B0iCV30,SV30,35..HT..ETO199304-199307

main64330-32480-E0iCV30,SV30,35..HT..ETO199304-199307

main64330-32480-E0iCV30,SV30..HT..ETO199212-199303

main64330-32480-E0iCV30,SV30,35..HT..ETO199308-199312

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-32020-02iCV30,SV30..HT..ETO199105-199206

sub64337-32020

main64337-32020-02iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64337-32020

main64337-32020-03iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64337-32020

main64337-32020-03iCV30,SV30..HT..ETO199105-199206

sub64337-32020

main64337-32020-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub64337-32020

main64337-32020-16iCV30,SV30,35..LUM199312-199406

sub64337-32020

main64337-32020-16iCV30,SV30,35..ETO199308-199406

sub64337-32020

main64337-32020-16iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64337-32020

main64337-32020-16iCV30,SV30,35..ETO199304-199307

sub64337-32020

main64337-32020-E1iCV30,SV30..HT..ETO199212-199303

sub64337-32020

main64337-32020-E1iCV30,SV30,35..ETO199304-199307

sub64337-32020

main64337-32020-E1iCV30,SV30,35..ETO199308-199406

sub64337-32020

main64337-32020-E1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64337-32020

main64337-32020-E1iCV30,SV30,35..LUM199312-199406

sub64337-32020

main64337-32020-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64337-32020

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-32020-02iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub64339-32020

main64339-32020-02iCV30,SV30..HT..ETO199105-199206

sub64339-32020

main64339-32020-03iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub64339-32020

main64339-32020-03iCV30,SV30..HT..ETO199105-199206

sub64339-32020

main64339-32020-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub64339-32020

main64339-32020-16iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MI.GRAY,TRIM1#

sub64339-32020

main64339-32020-16iCV30,SV30,35..ETO199308-199406

sub64339-32020

main64339-32020-16iCV30,SV30,35..LUM199312-199406

sub64339-32020

main64339-32020-16iCV30,SV30,35..ETO199304-199307

sub64339-32020

main64339-32020-E1iCV30,SV30,35..ETO199308-199406

sub64339-32020

main64339-32020-E1iCV30,SV30..HT..ETO199212-199303

sub64339-32020

main64339-32020-E1iCV30,SV30,35..ETO199304-199307

sub64339-32020

main64339-32020-E1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub64339-32020

main64339-32020-E1iCV30,SV30,35..LUM199312-199406

sub64339-32020

main64339-32020-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub64339-32020

64378GROMMET, PACKAGE TRAY TRIM LID

main64378-32010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main64378-32010iCV30,SV30,35..ETO199304-199307

main64378-32010iCV30,SV30,35..ETO199308-199406

main64378-32010iCV30,SV30,35..LUM199312-199406

64391CCAP

main90339-10005-02iCV30,SV30..HT..ETO199105-199206

sub90339-10005

main90339-10005-02iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub90339-10005

main90339-10005-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub90339-10005

main90339-10005-13iSV30,32,33..HT..VE;CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub90339-10005

main90339-10005-13iCV30,SV30..HT..ETO199105-199206

sub90339-10005

main90339-10005-B2iCV30,SV30,35..ETO199312-199406

sub90339-10005

main90339-10005-B2iCV30,SV30,35..ETO199308-199406

sub90339-10005

main90339-10005-B2iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

MEDIUM GRAY,TRIM1#

sub90339-10005

main90339-10005-B2iCV30,SV30,35..ETO199304-199307

sub90339-10005

main90339-10005-E0iCV30,SV30..HT..ETO199212-199303

sub90339-10005

main90339-10005-E0iCV30,SV30,35..ETO199304-199307

sub90339-10005

main90339-10005-E0iCV30,SV30,35..ETO199308-199406

sub90339-10005

main90339-10005-E0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

sub90339-10005

main90339-10005-E0iCV30,SV30,35..LUM199312-199406

sub90339-10005

main90339-10005-K1iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

sub90339-10005

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-32010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

main64490-32010-C0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

BLACK,TRIM1#,4#,9#

sub64490-32010

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-32150-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

BLACK,TRIM1#,9#

sub64711-32150

main64711-32150-C0iCV30,SV3#..SED..(ETO,LUM,VL,XT)199206-199406

BLACK,TRIM1#,4#,9#

sub64711-32150

main64711-32160-01iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

BLACK,TRIM1#,9#

sub64711-32160

main64711-32160-C0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

BLACK,TRIM1#,4#,9#

sub64711-32160

main64711-32170-01iCV30,SV30..HT..ETO199105-199206

main64711-32170-01iSV30,32,33..HT..VE199007-199206

BLACK,TRIM1#,4#,9#

main64711-32180-01iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

BLACK,TRIM1#,4#,9#

sub64711-32180

main64711-32180-C0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

BLACK,TRIM1#,4#,9#

sub64711-32180

main64711-32190-01iCV30,SV30,35..HT..ETO199007-199206

BLACK,TRIM1#,4#,9#

sub64711-32190

main64711-32190-C0iCV30,SV3#..HT..ETO199206-199406

BLACK,TRIM1#,4#,9#

sub64711-32190

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05085-01iCV30,SV3#..SED199007-199206

BLACK,TRIM1#,9#

sub90467-05085

main90467-05085-01iCV30,SV3#..SED199007-199206

BLACK,TRIM1#,4#,9#

sub90467-05085

main90467-05085-C2iCV30,SV3#,VZV3#199206-199406

BLACK,TRIM1#,4#,9#

sub90467-05085

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-32140-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

BLACK,TRIM1#,9#

sub64716-32140

main64716-32140-C0iCV30,SV3#..SED199206-199406

BLACK,TRIM1#,4#,9#

sub64716-32140

main64716-32150-01iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

BLACK,TRIM1#,9#

main64716-32160-01iCV30,SV3#..HT..(ETO,VE)199007-199202

BLACK,TRIM1#,4#,9#

sub64716-32161

main64716-32161-C1iCV30,SV3#..HT..(ETO,VE)199202-199406

BLACK,TRIM1#,4#,9#

main64716-32170-01iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199202

BLACK,TRIM1#,4#,9#

sub64716-32171

main64716-32171-C0iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199202-199206

BLACK,TRIM1#,4#,9#

sub64716-32161

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32060-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

BLACK,TRIM1#,9#

sub64717-32060

main64717-32060-01iCV30,SV30,35..HT..ETO199007-199206

BLACK,TRIM1#,4#,9#

sub64717-32060

main64717-32060-C0iCV30,SV3#..ETO,LUM,VL,XT199206-199406

BLACK,TRIM1#,4#,9#

sub64717-32060

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09066iSV30..HT..ETO;CV30,SV35..ETO,ZV;SV30,32,33..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199106

main90467-09066-22iCV30,SV3#..HT..ETO199106-199406

BLACK,TRIM1#,4#,9#

sub90467-09066

main90467-09066-22iCV30,SV30,35..HT..ETO199106-199206

BLACK,TRIM1#,9#

sub90467-09066

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32140-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

BLACK,TRIM1#,9#

sub64721-32140

main64721-32140-C1iCV30,SV3#..SED199206-199406

BLACK,TRIM1#,4#,9#

sub64721-32140

main64721-32150-01iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

BLACK,TRIM1#,9#

main64721-32160-01iCV30,SV3#..HT..(ETO,VE)199007-199202

BLACK,TRIM1#,4#,9#

sub64721-32161

main64721-32161-C1iCV30,SV3#..HT..(ETO,VE)199202-199406

BLACK,TRIM1#,4#,9#

main64721-32170-01iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199202

BLACK,TRIM1#,4#,9#

sub64721-32171

main64721-32171-C0iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199202-199206

BLACK,TRIM1#,4#,9#

sub64721-32161

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-11iCV30,SV3#..SED199007-199206

NEW BLACK,TRIM1#,9#

sub90467-07042

sub90467-06175

main90467-07042-11iCV30,SV3#,VZV3#..HT199007-199206

NEW BLACK,TRIM1#,4#,9#

sub90467-07042

sub90467-06175

main90467-07042-C0iCV30,SV3#,VZV3#..HT199206-199406

BLACK,TRIM1#,4#,9#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32140-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)199007-199206

BLACK,TRIM1#,9#

sub64722-32140

main64722-32140-C1iCV30,SV3#..SED199206-199406

BLACK,TRIM1#,4#,9#

sub64722-32140

main64722-32150-01iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

BLACK,TRIM1#,9#

main64722-32160-01iCV30,SV3#..HT..(ETO,VE)199007-199206

BLACK,TRIM1#,4#,9#

sub64722-32160

main64722-32160-C1iCV30,SV3#,VZV3#..HT199206-199406

BLACK,TRIM1#,4#,9#

sub64722-32160

main64722-32170-01iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

BLACK,TRIM1#,4#,9#

sub64722-32160

64726ACLIP, LUGGAGE TRIM, REAR

main64726-32010-01iCV30,SV3#,VZV3#..HT199007-199206

BLACK,TRIM1#,4#,9#

main64726-32010-01iCV30,SV3#..SED199007-199206

BLACK,TRIM1#,9#

main64726-32010-C0iCV30,SV3#,VZV3#199206-199406

BLACK,TRIM1#,4#,9#

64770COVER ASSY, SPARE WHEEL

main64770-32070iCV30,SV3#,VZV3#199007-199406

sub64770-32090

main64770-32080iCV30,SV3#,VZV3#199007-199406

64778BPROTECTOR, SPARE WHEEL

main64778-20040iCV30,SV3#,VZV3#199007-199406

sub64778-32020

64779ASTOPPER, SPARE WHEEL COVER

main64779-32030iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199308

64791COVER, BACK DOOR TRIM

main64791-32050-11iCV30,SV3#..SED..(ETO,LUM,VE,VL,VR,XT,ZE,ZV)199007-199206

BLACK,TRIM1#,9#

sub64791-32050

main64791-32050-11iCV30,SV3#..SED..(ETO,LUM,VE,VL,VR,XT,ZE,ZV)199007-199206

sub64791-32050

main64791-32050-C0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub64791-32050

main64791-32050-C0iCV30,SV3#..SED..(ETO,LUM,VL,VR,XT,ZE)199206-199406

BLACK,TRIM1#,4#,9#

sub64791-32050

main64791-32060-11iSV32,33,35,VZV3#..HT..(GT,PRO,VX)199007-199206

sub64791-32060

main64791-32060-11iSV32,33,35,VZV3#..HT..(GT,PRO,VX)199007-199206

BLACK,TRIM1#,4#,9#

sub64791-32060

main64791-32060-C0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

BLACK,TRIM1#,4#,9#

sub64791-32060

main64791-32060-C0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

sub64791-32060

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07059-01iCV30,SV3#..HT..(ETO,VE,VR)199007-199206

BLACK,TRIM1#,4#,9#

sub90467-07059

main90467-07059-01iCV30,SV3#..SED..(ETO,LUM,VE,VL,VR,XT,ZE,ZV)199007-199206

BLACK,TRIM1#,9#

sub90467-07059

main90467-07059-22iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

BLACK,TRIM1#,4#,9#

sub90467-07059

85132COVER, REAR WIPER SHAFT

main85132-32280-02iCV30,SV3#,VZV31,33..HT..(GT,PRO,VR,VX)199007-199206

TAUPE,TRIM9#

sub85132-32280

main85132-32280-03iVZV30,32199007-199206

MEDIUM GRAY,TRIM1#

sub85132-32280

main85132-32280-06iVZV30,32199007-199206

SABLE,TRIM4#

sub85132-32280

main85132-32280-E1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

OAK,TRIM4#

sub85132-32280

main85132-32280-K0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

TAUPE,TRIM9#

sub85132-32280

main85132-32280-S4iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

MI.GRAY,TRIM1#

sub85132-32280

main85132-32290-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

TAUPE,TRIM9#

sub85132-32290

main85132-32290-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

MEDIUM GRAY,TRIM1#

sub85132-32290

main85132-32290-E0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

sub85132-32290

main85132-32290-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

TAUPE,TRIM9#

sub85132-32290

main85132-32290-S4iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

MI.GRAY,TRIM1#

sub85132-32290

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777132020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32020

6777132100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32100

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9015940248

main90159-40248

9018304046

main90183-04046

9046805076

main90468-05076

9053025010

main90530-25010

9356055025

main93560-55025

39 parts on this diagram · 2 diagrams in section
