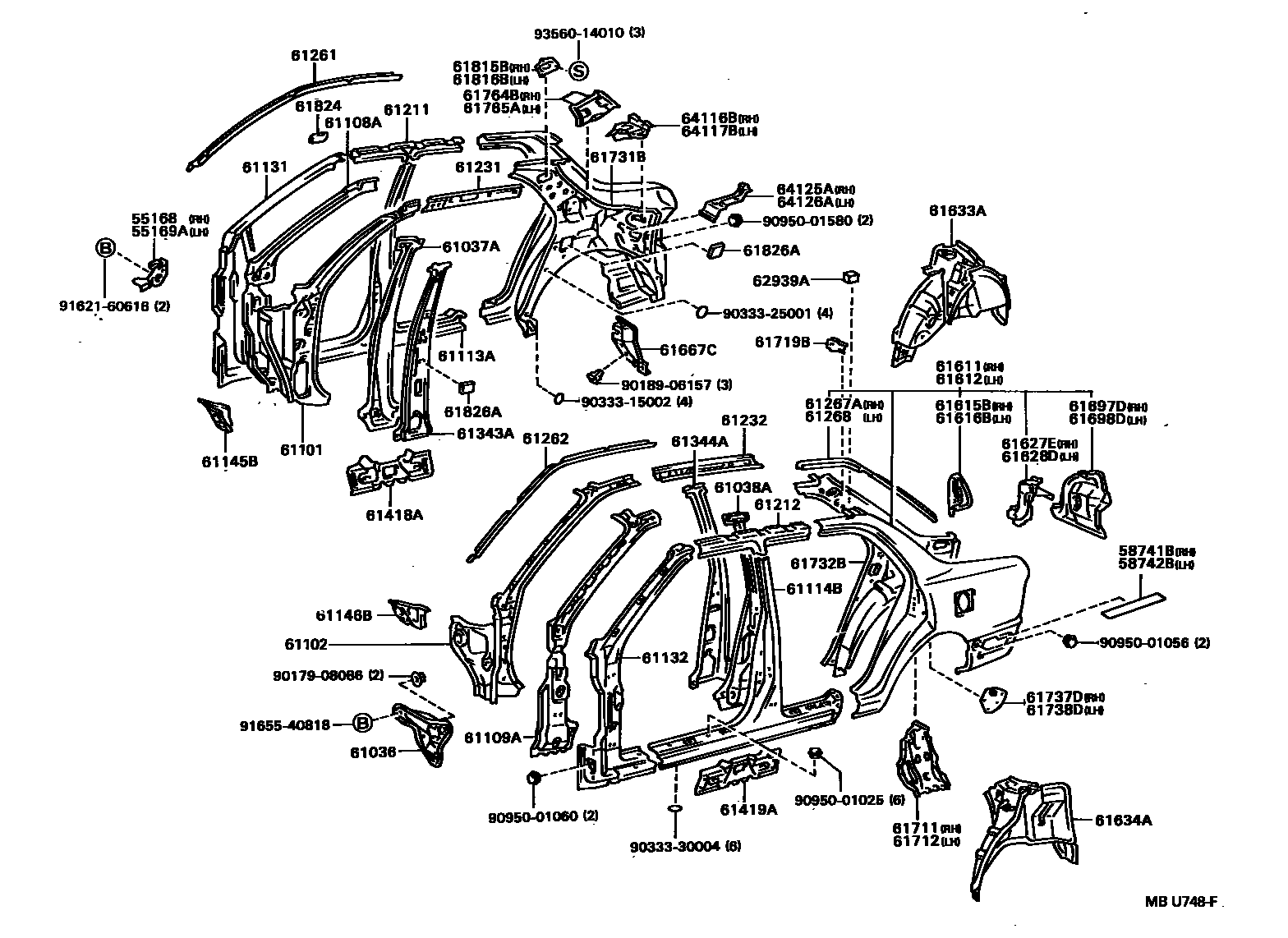

SIDE MEMBER

0001 1 0002 1

55168BRACKET, FRONT FENDER MOUNTING, RH

main55168-32010iCV30,SV3#,VZV3#199007-199406

55169ABRACKET, FRONT FENDER MOUNTING, LH

main55169-32010iCV30,SV3#,VZV3#199007-199406

58741BPROTECTOR, QUARTER PANEL, RH

main58741-32030iCV30,SV3#..SED199007-199406

main58741-32040iCV30,SV3#,VZV3#..HT199007-199406

58742BPROTECTOR, QUARTER PANEL, LH

main58742-32020iCV30,SV3#..SED199007-199406

main58742-32030iCV30,SV3#,VZV3#..HT199007-199406

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-32020iCV30,SV3#,VZV3#199007-199406

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-32020iCV30,SV3#,VZV3#..HT199007-199406

main61037-32050iCV30,SV3#..SED199405-199406

sub61037-33060

main61037-32900iCV30,SV3#..SED199007-199206

sub61037-32901

main61037-32901iCV30,SV3#..SED199206-199405

sub61037-32050

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-32020iCV30,SV3#,VZV3#..HT199007-199406

main61038-32050iCV30,SV3#..SED199405-199406

sub61038-33060

main61038-32900iCV30,SV3#..SED199007-199206

sub61038-32901

main61038-32901iCV30,SV3#..SED199206-199405

sub61038-32050

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-32900iCV30,SV3#..SED199007-199406

main61101-32901iCV30,SV3#,VZV3#..HT199007-199406

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-32900iCV30,SV3#..SED199007-199406

main61102-32901iCV30,SV3#,VZV3#..HT199007-199406

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-32900iCV30,SV3#..SED199007-199406

main61108-32901iCV30,SV3#,VZV3#..HT199007-199406

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-32900iCV30,SV3#..SED199007-199406

main61109-32901iCV30,SV3#,VZV3#..HT199007-199406

61113APANEL, SIDE, OUTER NO.2 RH

main61113-32010iCV30,SV3#..SED199007-199012

sub61113-32011

main61113-32011iCV30,SV3#..SED199012-199406

main61113-32020iCV30,SV3#,VZV3#..HT199007-199310

sub61113-32021

main61113-32021iCV30,SV3#,VZV3#..HT199310-199406

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-32010iCV30,SV3#..SED199007-199012

sub61114-32011

main61114-32011iCV30,SV3#..SED199012-199406

main61114-32020iCV30,SV3#,VZV3#..HT199007-199310

sub61114-32021

main61114-32021iCV30,SV3#,VZV3#..HT199310-199406

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-32110iCV30,SV3#..SED199007-199012

sub61131-32111

main61131-32111iCV30,SV3#..SED199012-199406

main61131-32120iCV30,SV3#,VZV3#..HT199007-199406

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-32110iCV30,SV3#..SED199007-199012

sub61132-32111

main61132-32111iCV30,SV3#..SED199012-199406

main61132-32120iCV30,SV3#,VZV3#..HT199007-199406

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32020iCV30,SV3#,VZV3#199007-199406

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32020iCV30,SV3#,VZV3#199007-199406

61211RAIL, ROOF SIDE, OUTER RH

main61211-32070iCV30,SV3#..SED199007-199406

main61211-32080iCV30,SV3#,VZV3#..HT199007-199406

61212RAIL, ROOF SIDE, OUTER LH

main61212-32070iCV30,SV3#..SED199007-199406

main61212-32080iCV30,SV3#,VZV3#..HT199007-199406

61231RAIL, ROOF SIDE, INNER RH

main61231-32250iCV30,SV3#..SED199007-199406

main61231-32260iCV30,SV3#,VZV3#..HT199007-199406

61232RAIL, ROOF SIDE, INNER LH

main61232-32250iCV30,SV3#..SED199007-199406

main61232-32260iCV30,SV3#,VZV3#..HT199007-199406

61261CHANNEL, ROOF DRIP, RH

main61261-32060iCV30,SV3#..SED199007-199406

main61261-32070iCV30,SV3#,VZV3#..HT199007-199406

61262CHANNEL, ROOF DRIP, LH

main61262-32060iCV30,SV3#..SED199007-199406

main61262-32070iCV30,SV3#,VZV3#..HT199007-199406

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-32020iCV30,SV3#..SED199007-199310

sub61267-33010

main61267-32030iCV30,SV3#,VZV3#..HT199007-199406

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61267-33010iCV30,SV3#..SED199310-199406

main61268-32020iCV30,SV3#..SED199007-199310

sub61268-33010

main61268-32030iCV30,SV3#,VZV3#..HT199007-199406

main61268-33010iCV30,SV3#..SED199310-199406

61343APILLAR, CENTER BODY, INNER RH

main61343-32070iCV30,SV3#..SED199007-199406

main61343-32080iCV30,SV3#,VZV3#..HT199007-199406

61344APILLAR, CENTER BODY, INNER LH

main61344-32070iCV30,SV3#..SED199007-199406

main61344-32080iCV30,SV3#,VZV3#..HT199007-199406

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-32020iCV30,SV3#,VZV3#199007-199406

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-32020iCV30,SV3#,VZV3#199007-199406

61611PANEL, QUARTER, RH

main61601-32280iCV30,SV3#..SED199206-199406

sub61601-32932

sub61627-32020

sub61697-32900

main61601-32290iCV30,SV3#,VZV3#..HT199206-199406

main61601-32300iCV30,SV3#,VZV3#..HT199206-199406

main61601-32928iCV30,SV3#..SED199007-199206

sub61601-32280

main61601-32929iCV30,SV3#,VZV3#..HT199007-199206

sub61601-32290

main61601-32930iCV30,SV3#,VZV3#..HT199007-199206

sub61601-32300

61612PANEL, QUARTER, LH

main61602-32450iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199207-199406

main61602-32460iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199207-199406

main61602-32470iCV30,SV3#..SED199007-199406

sub61602-32955

sub61628-32020

sub61698-32900

main61602-32947iCV30,SV3#..SED199008-199206

sub61602-32470

main61602-32948iCV30,SV3#,VZV3#..HT199007-199406

sub61602-32951

main61602-32949iCV30,SV3#,VZV3#..HT199007-199406

sub61602-32952

main61602-32951iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199207

sub61602-32450

main61602-32952iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199207

sub61602-32460

61615BREINFORCEMENT, QUARTER PANEL, OUTER FRONT

main61615-32010iCV30,SV3#..SED199007-199406

main61615-32020iCV30,SV3#,VZV3#..HT199007-199406

61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR

main61616-32010iCV30,SV3#..SED199007-199406

main61616-32020iCV30,SV3#,VZV3#..HT199007-199406

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-32020iCV30,SV3#..SED199007-199406

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-32020iCV30,SV3#..SED199007-199406

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32280iCV30,SV3#,VZV3#199007-199406

sub61603-32281

sub90950-01872

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32280iCV30,SV3#,VZV3#199007-199406

sub61604-32281

sub90950-01872

61667CSEAL, QAURTER PANEL, NO.1

main61667-32010iCV30,SV3#..SED199007-199406

main61667-32020iCV30,SV3#,VZV3#..HT199007-199406

61697DHOUSING, QUARTER PANEL END, RH

main61697-32040iCV30,SV3#..SED199007-199111

sub61697-32041

main61697-32041iCV30,SV3#..SED199111-199406

sub61697-32900

61698DHOUSING, QUARTER PANEL END, LH

main61698-32040iCV30,SV3#..SED199007-199111

sub61698-32041

main61698-32041iCV30,SV3#..SED199111-199406

sub61698-32900

61711PANEL, ROOF SIDE, OUTER RH

main61711-32060iCV30,SV3#..SED199007-199406

main61711-32070iCV30,SV3#,VZV3#..HT199007-199406

61712PANEL, ROOF SIDE, OUTER LH

main61712-32060iCV30,SV3#..SED199007-199406

main61712-32070iCV30,SV3#,VZV3#..HT199007-199406

61719BBRACKET, ROOF SIDE, INNER

main61719-32010iCV30,SV3#..SED199007-199406

61731BPANEL, ROOF SIDE, INNER RH

main61731-32110iCV30,SV3#..SED199007-199208

sub61731-32111

sub90467-05004

main61731-32111iCV30,SV3#..SED199208-199406

main61731-32130iCV30,SV3#,VZV3#..HT199007-199202

sub61731-33030

sub90467-05004

main61731-33030iCV30,SV3#,VZV3#..HT199202-199406

61732BPANEL, ROOF SIDE, INNER LH

main61732-32110iCV30,SV3#..SED199007-199406

main61732-32130iCV30,SV3#,VZV3#..HT199007-199202

sub61732-33030

sub90467-05004

main61732-33030iCV30,SV3#,VZV3#..HT199202-199406

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-32040iCV30,SV3#..SED199007-199406

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-32040iCV30,SV3#..SED199007-199406

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-32010iCV30,SV3#..SED199007-199406

61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61765-32020iCV30,SV3#..SED199007-199406

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32040iCV30,SV3#..SED199007-199208

sub61815-32041

main61815-32041iCV30,SV3#..SED199208-199406

main61815-32050iCV30,SV3#,VZV3#..HT199007-199406

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-32020iCV30,SV30,35..VL,XT,ZV199007-199206

main61816-32030iCV30,SV3#,VZV3#..HT199007-199406

61824PLATE, NOISE CONTROL, NO.1

main61824-20100iCV30,SV3#,VZV3#..HT199007-199406

main61824-20100iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199406

61826APLATE, NOISE CONTROL, NO.3

main61826-30030iCV30,SV3#..SED199007-199206

ROOF SIDE INNER

main61826-30030iCV30,SV3#..SED199206-199406

main61826-32050iCV30,SV3#,VZV3#..HT199007-199307

main61826-32050iCV30,SV3#..SED199007-199206

CENTER PILLAR

62939ASILENCER, QUARTER VENT

main62939-32020iCV30,SV3#,VZV3#199007-199406

main62939-33010iCV30,SV3#..SED199210-199406

64116BREINFORCEMENT, UPPER BACK, RH

main64116-32020iCV30,SV3#..SED199007-199406

64117BREINFORCEMENT, UPPER BACK, LH

main64117-32020iCV30,SV3#..SED199007-199406

64125ABRACKET, UPPER BACK PANEL, RH

main61707-32010iCV30,SV3#,VZV3#..HT199007-199406

main64125-32040iCV30,SV3#..SED199007-199406

64126ABRACKET, UPPER BACK PANEL, LH

main61708-32020iCV30,SV3#,VZV3#..HT199007-199406

main64126-32030iCV30,SV3#..SED199007-199406

9017908086

main90179-08086

9018906157

main90189-06157

9033315002

main90333-15002

9033325001

main90333-25001

9033330004

main90333-30004

9095001025

main90950-01025

9095001056

main90950-01056

9095001060

main90950-01060

9095001580

main90950-01580

9162160616

main91621-60616

9165540818

main91655-40818

9356014010

main93560-14010

70 parts on this diagram · 2 diagrams in section
