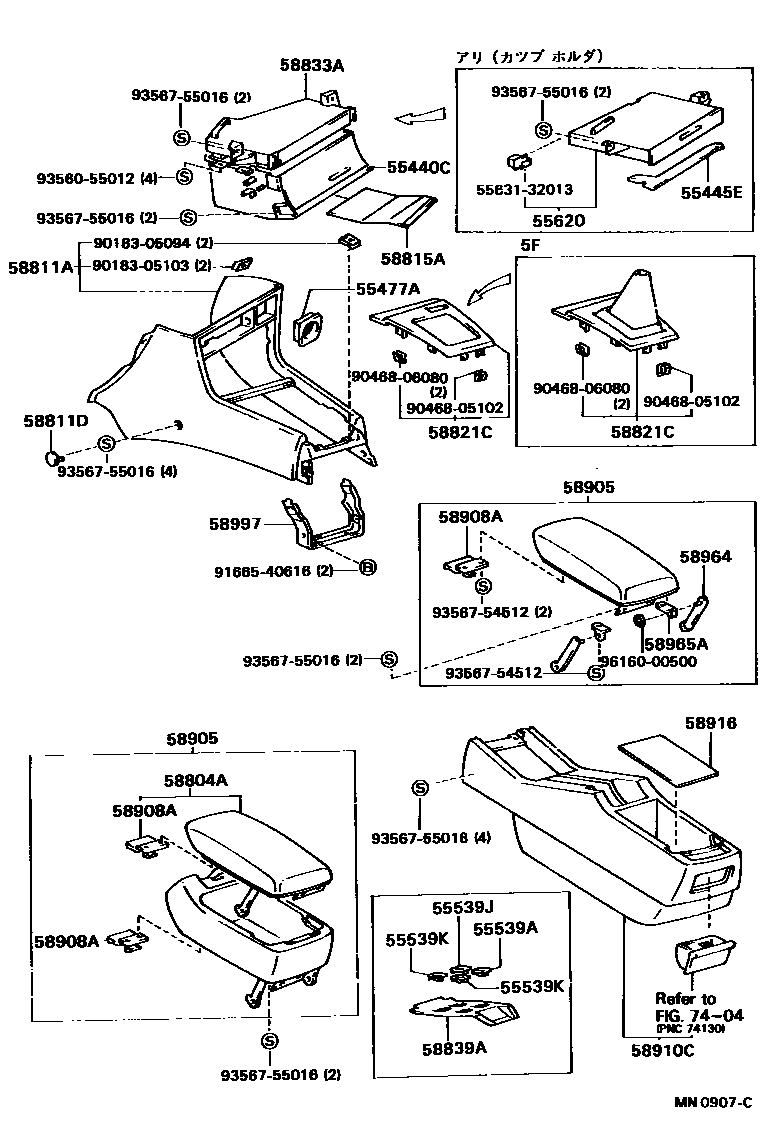

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55440CBOX ASSY, INSTRUMENT PANEL

main55440-32040-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub55440-32040

main55440-32040-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub55440-32040

main55440-32040-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub55440-32040

main55440-32040-B0iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

sub55440-32040

main55440-32040-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub55440-32040

main55440-32040-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub55440-32040

55445EPLATE, INSTRUMENT PANEL FINISH

main55445-32020iCV30,SV30..ETO199105-199206

main55445-32020iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199007-199406

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-32040-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub55477-32040

main55477-32040-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub55477-32040

main55477-32040-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub55477-32040

main55477-32040-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub55477-32040

main55477-32040-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub55477-32040

main55477-32040-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

sub55477-32040

55539ACOVER, SPARE SWITCH HOLE

main55539-32030-03iSV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE)199007-199206

MEDIUM GARY,TRIM1#

sub55539-32030

main55539-32030-03iSV32,33..HT..4FC..VX199112-199206

sub55539-32030

main55539-32030-12iCV30,SV3#,VZV30,31199007-199206

TAUPE,TRIM9#

sub55539-32030

main55539-32030-16iSV32,33..HT..5F;CV30,SV30,35,VZV30,31..HT;SV32,33..HT..4FC..(GT,VE)199007-199206

SABLE,TRIM4#

sub55539-32030

main55539-32030-16iSV32,33..HT..4FC..VX199112-199206

sub55539-32030

main55539-32030-E0iSV32,33,VZV3#..HT..4FC..(PRO,VX)199206-199406

OAK,TRIM4#

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199309-199312

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199401-199406

sub55539-32030

main55539-32030-K0iSV32,33,VZV3#..HT..4FC..(PRO,VX)199206-199406

TAUPE,TRIM9#

sub55539-32030

main55539-32030-S4iCV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO199206-199406

MI.GRAY,TRIM1#

sub55539-32030

main55539-32030-S4iSV32,33..HT..4FC..VX199401-199406

sub55539-32030

main55539-32030-S4iSV32,33..HT..4FC..VX199309-199312

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32030-03iSV32,33..SED..4FC..(VX,ZX)199007-199206

sub55539-32030

main55539-32030-03iSV32,33..SED..4FC..(VX,ZX)199106-199206

sub55539-32030

main55539-32030-03iSV32,33..HT..4FC..VX199112-199206

sub55539-32030

main55539-32030-03iVZV32,33199105-199206

sub55539-32030

main55539-32030-03iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

MEDIUM GARY,TRIM1#

sub55539-32030

main55539-32030-12iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

TAUPE,TRIM9#

sub55539-32030

main55539-32030-12iSV32,33,VZV3#..4FC..(PRO,VX,ZX)199007-199206

sub55539-32030

main55539-32030-12iSV32,33..HT..4FC..VX199106-199206

sub55539-32030

main55539-32030-12iVZV32,33199105-199206

sub55539-32030

main55539-32030-16iSV35..HT;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F199007-199206

SABLE,TRIM4#

sub55539-32030

main55539-32030-16iSV32,33,VZV3#..HT..4FC..(PRO,VX)199007-199106

sub55539-32030

main55539-32030-16iVZV32,33199105-199206

sub55539-32030

main55539-32030-16iSV32,33..HT..4FC..VX199112-199206

sub55539-32030

main55539-32030-16iSV32,33..HT..4FC..VX199106-199206

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199206-199406

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199206-199406

sub55539-32030

main55539-32030-E0iVZV3#199206-199406

OAK,TRIM4#

sub55539-32030

main55539-32030-E0iSV32,33..SED..4FC..(VX,ZX)199206-199406

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199309-199312

sub55539-32030

main55539-32030-E0iSV32,33..HT..4FC..VX199401-199406

sub55539-32030

main55539-32030-K0iVZV3#199206-199406

sub55539-32030

main55539-32030-K0iSV35;CV30,SV30,32,33..5F199206-199406

TAUPE,TRIM9#

sub55539-32030

main55539-32030-K0iSV35;CV30,SV30,32,33..5F199206-199406

sub55539-32030

main55539-32030-K0iSV35;CV30,SV30,32,33..5F199206-199406

sub55539-32030

main55539-32030-S4iSV35;CV30,SV30,32,33..5F199206-199406

sub55539-32030

main55539-32030-S4iSV35;CV30,SV30,32,33..5F199206-199406

sub55539-32030

main55539-32030-S4iVZV3#199206-199406

MI.GRAY,TRIM1#

sub55539-32030

main55539-32030-S4iSV32,33..SED..4FC..(VX,ZX)199206-199406

sub55539-32030

main55539-32030-S4iSV32,33..HT..4FC..VX199309-199312

sub55539-32030

main55539-32030-S4iSV32,33..HT..4FC..VX199401-199406

sub55539-32030

main55539-32040-02iSV32,33,VZV3#..4FC..(PRO,VX,ZX)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-02iSV32,33,VZV3#..4FC..(PRO,VX,ZX)199007-199206

TAUPE,TRIM9#

sub55539-32040

sub55539-12120

main55539-32040-02iSV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-03iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-03iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV)199007-199206

MEDIUM GRAY,TRIM1#

sub55539-32040

sub55539-12120

main55539-32040-03iSV32,33..4FC..GT;SV35,VZV32,33..PRO,VX,ZX;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-06iSV35..HT..ETO;CV30,SV30,32,33..HT..5F..(ETO,VE)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-06iCV30,SV30,32,33,VZV30,31..HT..4FC..(ETO,PRO,VE,VR)199007-199206

SABLE,TRIM4#

sub55539-32040

sub55539-12120

main55539-32040-06iCV30,SV30,32,33,VZV30,31..HT..4FC..(ETO,PRO,VE,VR)199007-199206

sub55539-32040

sub55539-12120

main55539-32040-E2iSV35,VZV3#;CV30,SV30,32,33..5F199206-199406

sub55539-32040

sub55539-12120

main55539-32040-E2iSV32,33..4FC..(VX,ZX)199206-199406

OAK,TRIM4#

sub55539-32040

sub55539-12120

main55539-32040-E2iSV32,33..4FC..(VX,ZX)199206-199406

sub55539-32040

sub55539-12120

main55539-32040-K0iCV30,SV30..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

sub55539-32040

sub55539-12120

main55539-32040-K0iSV35,VZV3#;CV30,SV30,32,33..5F199206-199406

TAUPE,TRIM9#

sub55539-32040

sub55539-12120

main55539-32040-K0iSV35,VZV3#;CV30,SV30,32,33..5F199206-199406

sub55539-32040

sub55539-12120

main55539-32040-S4iCV30,SV30..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

sub55539-32040

sub55539-12120

main55539-32040-S4iCV30,SV30..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

MI.GRAY,TRIM1#

sub55539-32040

sub55539-12120

main55539-32040-S4iCV30,SV30..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

sub55539-32040

sub55539-12120

55539KCOVER, SPARE SWITCH HOLE

main55539-32040-02iSV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE)199007-199206

TAUPE,TRIM9#

sub55539-32040

sub55539-12120

main55539-32040-03iCV30,SV3#;VZV3#..5F199007-199206

MEDIUM GRAY,TRIM1#

sub55539-32040

sub55539-12120

main55539-32040-03iSV32,33..HT..4FC..VX199112-199206

sub55539-32040

sub55539-12120

main55539-32040-06iSV32,33..HT..5F;CV30,SV30,35,VZV30,31..HT;SV32,33..HT..4FC..(GT,VE)199007-199206

SABLE,TRIM4#

sub55539-32040

sub55539-12120

main55539-32040-06iSV32,33..HT..4FC..VX199112-199206

sub55539-32040

sub55539-12120

main55539-32040-E2iCV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO199206-199406

OAK,TRIM4#

sub55539-32040

sub55539-12120

main55539-32040-E2iSV32,33..HT..4FC..VX199309-199312

sub55539-32040

sub55539-12120

main55539-32040-E2iSV32,33..HT..4FC..VX199401-199406

sub55539-32040

sub55539-12120

main55539-32040-K0iSV32,33..HT..4FC..VX199206-199406

TAUPE,TRIM9#

sub55539-32040

sub55539-12120

main55539-32040-S4iVZV3#199206-199406

MI.GRAY,TRIM1#

sub55539-32040

sub55539-12120

main55539-32040-S4iSV32,33..HT..4FC..VX199309-199312

sub55539-32040

sub55539-12120

main55539-32040-S4iSV32,33..HT..4FC..VX199401-199406

sub55539-32040

sub55539-12120

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55618-32020-02iCV30,SV30..ETO199105-199206

sub55618-32020

sub55618-32021

main55618-32020-02iCV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub55618-32020

sub55618-32021

main55618-32020-03iCV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub55618-32020

sub55618-32021

main55618-32020-03iCV30,SV30..ETO199105-199206

sub55618-32020

sub55618-32021

main55618-32020-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub55618-32020

sub55618-32021

main55618-32020-B0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

MI.GRAY,TRIM1#

sub55618-32020

sub55618-32021

main55618-32020-E0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

OAK,TRIM4#

sub55618-32020

sub55618-32021

main55618-32020-K0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

TAUPE,TRIM9#

sub55618-32020

sub55618-32021

main55618-32021-B0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199308-199406

MI.GRAY,TRIM1#

sub55618-32021

main55618-32021-E0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199308-199406

OAK,TRIM4#

sub55618-32021

main55618-32021-K0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199308-199406

TAUPE,TRIM9#

sub55618-32021

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-32090-C0iSV32,33..4FC..ZX;SV32,33..HT..4FC..VX199206-199406

main58804-32100-02iSV32,33..HT..4FC..VX199106-199206

sub58804-32100

main58804-32100-02iVZV3#..4FC199007-199105

sub58804-32100

main58804-32100-02iVZV32,33199105-199206

sub58804-32100

main58804-32100-03iSV32,33..HT..4FC..VX199112-199206

sub58804-32100

main58804-32100-03iVZV3#..4FC199007-199105

sub58804-32100

main58804-32100-03iVZV32,33199105-199206

sub58804-32100

main58804-32100-03iSV32,33..HT..4FC..VX199106-199206

sub58804-32100

main58804-32100-06iSV32,33..HT..4FC..VX199106-199206

sub58804-32100

main58804-32100-06iVZV3#..4FC199007-199105

sub58804-32100

main58804-32100-06iSV32,33..HT..4FC..VX199112-199206

sub58804-32100

main58804-32100-06iVZV32,33199105-199206

sub58804-32100

main58804-32100-B0iVZV3#199206-199406

sub58804-32100

main58804-32100-B0iVZV3#199206-199406

sub58804-32100

main58804-32100-B0iSV32,33..HT..4FC..VX199401-199406

sub58804-32100

main58804-32100-B0iSV32,33..HT..4FC..VX199309-199312

sub58804-32100

main58804-32100-E0iSV32,33..HT..4FC..VX199206-199406

sub58804-32100

main58804-32100-E0iSV32,33..HT..4FC..VX199401-199406

sub58804-32100

main58804-32100-E0iSV32,33..HT..4FC..VX199206-199406

sub58804-32100

main58804-32100-E0iSV32,33..HT..4FC..VX199309-199312

sub58804-32100

main58804-32100-K0iSV32,33..HT..4FC..VX199206-199406

sub58804-32100

main58804-32100-K0iVZV3#199206-199406

sub58804-32100

main58804-32110-02iVZV3#..4FC199007-199112

TAUPE,TRIM9#

sub58804-32111

main58804-32110-03iVZV3#..4FC199007-199112

MEDIUM GRAY,TRIM1#

sub58804-32111

main58804-32110-06iVZV3#..4FC199007-199112

SABLE,TRIM4#

sub58804-32111

main58804-32111-B0iVZV3#..4FC199112-199206

MEDIUM GRAY,TRIM1#

sub58804-32160

main58804-32111-E0iVZV3#..4FC199112-199206

SABLE,TRIM4#

sub58804-32160

main58804-32111-K0iVZV3#..4FC199112-199206

TAUPE,TRIM9#

sub58804-32160

main58804-32120-02iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199007-199112

TAUPE,TRIM9#

sub58804-32121

main58804-32120-03iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199007-199112

MEDIUM GRAY,TRIM1#

sub58804-32121

main58804-32120-06iCV30,SV30,32,33..HT..4FC..(VR,VX)199007-199112

SABLE,TRIM4#

sub58804-32121

main58804-32121-B0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199112-199206

MEDIUM GRAY,TRIM1#

sub58804-32150

sub58804-32190

main58804-32121-E0iCV30,SV30,32,33..HT..4FC..(VR,VX)199112-199206

SABLE,TRIM4#

sub58804-32150

sub58804-32190

main58804-32121-K0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199112-199206

TAUPE,TRIM9#

sub58804-32150

sub58804-32190

main58804-32130-02iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199007-199112

TAUPE,TRIM9#

sub58804-32131

main58804-32130-03iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199007-199112

MEDIUM GRAY,TRIM1#

sub58804-32131

main58804-32130-06iCV30,SV30,32,33..HT..4FC..(ETO,VE)199007-199112

SABLE,TRIM4#

sub58804-32131

main58804-32131-B0iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199112-199406

MEDIUM GRAY,TRIM1#

sub58804-32200

sub58804-32131

main58804-32131-E0iCV30,SV30,32,33..HT..4FC..(ETO,VE)199112-199206

SABLE,TRIM4#

sub58804-32200

sub58804-32131

main58804-32131-E1iCV30,SV30,32,33..4FC..(ETO,LUM,VL,XT)199206-199406

OAK,TRIM4#

sub58804-32200

sub58804-32131

main58804-32131-K0iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199112-199406

TAUPE,TRIM9#

sub58804-32200

sub58804-32131

main58804-32140-02iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199112

TAUPE,TRIM9#

sub58804-32141

main58804-32140-03iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199112

MEDIUM GRAY,TRIM1#

sub58804-32141

main58804-32140-06iSV35..HT..VX;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F..(GT,PRO,VR,VX)199007-199112

SABLE,TRIM4#

sub58804-32141

main58804-32141-B0iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199112-199406

MEDIUM GRAY,TRIM1#

sub58804-32210

sub58804-32141

main58804-32141-E0iSV35..HT..VX;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F..(GT,PRO,VR,VX)199112-199206

SABLE,TRIM4#

sub58804-32210

sub58804-32141

main58804-32141-E2iSV35..VX,ZX;CV30,SV30,32,33..5F..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

sub58804-32210

sub58804-32141

main58804-32141-K0iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199112-199406

TAUPE,TRIM9#

sub58804-32210

sub58804-32141

main58804-32150-B0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

MI.GRAY,TRIM1#

sub58804-32190

main58804-32150-E0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

sub58804-32190

main58804-32150-K0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

TAUPE,TRIM9#

sub58804-32190

main58804-32160-B0iVZV3#199206-199406

MI.GRAY,TRIM1#

main58804-32160-E0iVZV3#199206-199406

OAK,TRIM4#

main58804-32160-K0iVZV3#199206-199406

TAUPE,TRIM9#

58811ABOX, CONSOLE, FRONT

main58810-32030-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub58810-32030

main58810-32030-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub58810-32030

main58810-32030-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub58810-32030

main58810-32030-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub58810-32030

main58810-32030-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub58810-32030

main58810-32030-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

sub58810-32030

58811DCLIP(FOR CONSOLE BOX)

main90950-01702-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub90950-01702

main90950-01702-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub90950-01702

main90950-01702-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub90950-01702

main90950-01702-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub90950-01702

main90950-01702-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub90950-01702

main90950-01702-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

sub90950-01702

58815ACARPET, CONSOLE BOX

main58815-32020iCV30,SV3#,VZV3#199007-199406

58821CPANEL, CONSOLE, UPPER

main58821-32040-02iSV32,33,35,VZV3#..4FC199007-199206

TAUPE,TRIM9#

sub58821-32040

main58821-32040-03iSV32,33,35,VZV3#..4FC199007-199206

MEDIUM GRAY,TRIM1#

sub58821-32040

main58821-32040-06iSV32,33,35,VZV3#..HT..4FC199007-199206

SABLE,TRIM4#

sub58821-32040

main58821-32040-E0iSV32,33,35,VZV3#..4FC199206-199406

OAK,TRIM4#

sub58821-32040

main58821-32040-K0iSV32,33,35,VZV3#..4FC199206-199406

TAUPE,TRIM9#

sub58821-32040

main58821-32040-S4iSV32,33,35,VZV3#..4FC199206-199406

MI.GRAY,TRIM1#

sub58821-32040

main58821-32050-02iCV30,SV3#,VZV30,31..5F199007-199206

TAUPE,TRIM9#

sub58821-32050

main58821-32050-03iCV30,SV3#,VZV30,31..5F199007-199206

MEDIUM GRAY,TRIM1#

sub58821-32050

main58821-32050-06iCV30,SV3#,VZV30,31..HT..5F199007-199206

SABLE,TRIM4#

sub58821-32050

main58821-32050-E0iCV30,SV3#..5F199206-199406

OAK,TRIM4#

sub58821-32050

main58821-32050-K0iCV30,SV3#..5F199206-199406

TAUPE,TRIM9#

sub58821-32050

main58821-32050-S4iCV30,SV3#..5F199206-199406

MI.GRAY,TRIM1#

sub58821-32050

main58821-32060-02iCV30,SV30..4FC199007-199206

TAUPE,TRIM9#

sub58821-32060

main58821-32060-03iCV30,SV30..4FC199007-199206

MEDIUM GRAY,TRIM1#

sub58821-32060

main58821-32060-06iCV30,SV30..HT..4FC199007-199206

SABLE,TRIM4#

sub58821-32060

main58821-32060-E0iCV30,SV30..4FC199206-199406

OAK,TRIM4#

sub58821-32060

main58821-32060-K0iCV30,SV30..4FC199206-199406

TAUPE,TRIM9#

sub58821-32060

main58821-32060-S4iCV30,SV30..4FC199206-199406

MI.GRAY,TRIM1#

sub58821-32060

58833ACOVER, CONSOLE, UPPER

main55619-32010-02iCV30,SV30,35..ETO,VL,XT,ZV199007-199206

TAUPE,TRIM9#

sub55619-32010

main55619-32010-03iCV30,SV30,35..ETO,VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

sub55619-32010

main55619-32010-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

sub55619-32010

main55619-32010-B0iSV35..LUM199304-199403

sub55619-32010

main55619-32010-B0iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

sub55619-32010

main55619-32010-E0iSV35..LUM199304-199403

sub55619-32010

main55619-32010-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

sub55619-32010

main55619-32010-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

sub55619-32010

58839ACOVER, CONSOLE BOX HOLE

main58839-32040-02iVZV32,33199105-199206

sub58839-32040

main58839-32040-02iVZV3#..4FC199007-199105

sub58839-32040

main58839-32040-02iSV32,33..HT..4FC..VX199106-199206

sub58839-32040

main58839-32040-03iVZV3#..4FC199007-199105

sub58839-32040

main58839-32040-03iVZV32,33199105-199206

sub58839-32040

main58839-32040-03iSV32,33..HT..4FC..VX199112-199206

sub58839-32040

main58839-32040-03iSV32,33..HT..4FC..VX199106-199206

sub58839-32040

main58839-32040-06iSV32,33..HT..4FC..VX199112-199206

sub58839-32040

main58839-32040-06iVZV32,33199105-199206

sub58839-32040

main58839-32040-06iSV32,33..HT..4FC..VX199106-199206

sub58839-32040

main58839-32040-06iVZV3#..4FC199007-199105

sub58839-32040

main58839-32040-E0iVZV3#199206-199406

sub58839-32040

main58839-32040-E0iSV32,33..HT..4FC..VX199206-199406

sub58839-32040

main58839-32040-E0iSV32,33..HT..4FC..VX199309-199312

sub58839-32040

main58839-32040-E0iSV32,33..HT..4FC..VX199401-199406

sub58839-32040

main58839-32040-K0iVZV3#199206-199406

sub58839-32040

main58839-32040-K0iSV32,33..HT..4FC..VX199206-199406

sub58839-32040

main58839-32040-S4iSV32,33..HT..4FC..VX199309-199312

sub58839-32040

main58839-32040-S4iSV32,33..HT..4FC..VX199401-199406

sub58839-32040

main58839-32040-S4iSV32,33..HT..4FC..VX199206-199406

sub58839-32040

main58839-32040-S4iSV32,33..HT..4FC..VX199206-199406

sub58839-32040

main58839-32050-02iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

sub58839-32050

main58839-32050-02iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

TAUPE,TRIM9#

sub58839-32050

main58839-32050-02iSV32,33..4FC..(VX,ZX)199007-199206

sub58839-32050

main58839-32050-03iCV30,SV30..4FC..(VR,ZE)199007-199206

sub58839-32050

main58839-32050-03iSV32,33,VZV3#..4FC..(PRO,VX,ZX)199007-199206

sub58839-32050

main58839-32050-03iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

MEDIUM GRAY,TRIM1#

sub58839-32050

main58839-32050-06iSV32,33..HT..4FC..VX199007-199206

sub58839-32050

main58839-32050-06iCV30,SV30,VZV3#..HT..4FC..(PRO,VR)199007-199206

sub58839-32050

main58839-32050-06iCV30,SV30,32,33..HT..4FC..(ETO,VE)199007-199206

SABLE,TRIM4#

sub58839-32050

main58839-32050-E0iCV30,SV30,VZV3#..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

sub58839-32050

main58839-32050-E0iSV32,33..4FC..(VX,ZX)199206-199406

OAK,TRIM4#

sub58839-32050

main58839-32050-E0iSV32,33..4FC..(VX,ZX)199206-199406

sub58839-32050

main58839-32050-K0iCV30,SV30,VZV3#..4FC;SV32,33..4FC..(ETO,LUM)199206-199406

sub58839-32050

main58839-32050-K0iSV35;CV30,SV30,32,33..5F199206-199406

TAUPE,TRIM9#

sub58839-32050

main58839-32050-K0iSV35;CV30,SV30,32,33..5F199206-199406

sub58839-32050

main58839-32050-S4iSV35;CV30,SV30,32,33..5F199206-199406

MI.GRAY,TRIM1#

sub58839-32050

main58839-32050-S4iSV35;CV30,SV30,32,33..5F199206-199406

sub58839-32050

main58839-32050-S4iSV35;CV30,SV30,32,33..5F199206-199406

sub58839-32050

main58839-32060-02iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199206

TAUPE,TRIM9#

sub58839-32060

main58839-32060-03iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199206

MEDIUM GRAY,TRIM1#

sub58839-32060

main58839-32060-06iCV30,SV30,32,33,VZV3#..HT..4FC..(ETO,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub58839-32060

main58839-32060-E0iCV30,SV30,32,33,VZV3#..4FC199206-199406

OAK,TRIM4#

sub58839-32060

main58839-32060-K0iCV30,SV30,32,33,VZV3#..4FC199206-199406

TAUPE,TRIM9#

sub58839-32060

main58839-32060-S4iCV30,SV30,32,33,VZV3#..4FC199206-199406

MI.GRAY,TRIM1#

sub58839-32060

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-32160-02iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199206

TAUPE,TRIM9#

sub58905-32160

sub58905-32260

main58905-32160-03iSV35..VX,ZX;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199206

MEDIUM GRAY,TRIM1#

sub58905-32160

sub58905-32260

main58905-32160-06iSV35..HT..VX;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub58905-32160

sub58905-32260

main58905-32160-E0iSV35..VX,ZX;CV30,SV30,32,33..5F..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

sub58905-32160

sub58905-32260

main58905-32160-K0iSV35..VX,ZX;CV30,SV30,32,33..5F..(VR,VX,ZE,ZX)199206-199406

TAUPE,TRIM9#

sub58905-32160

sub58905-32260

main58905-32160-S4iSV35..VX,ZX;CV30,SV30,32,33..5F..(VR,VX,ZE,ZX)199206-199406

MI.GRAY,TRIM1#

sub58905-32160

sub58905-32260

main58905-32170-02iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199007-199206

TAUPE,TRIM9#

sub58905-32170

sub58905-32250

main58905-32170-03iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV)199007-199206

MEDIUM GRAY,TRIM1#

sub58905-32170

sub58905-32250

main58905-32170-06iCV30,SV30,32,33..HT..4FC..(ETO,VE)199007-199206

SABLE,TRIM4#

sub58905-32170

sub58905-32250

main58905-32170-E0iCV30,SV30,32,33..4FC..(ETO,LUM,VL,XT)199206-199406

OAK,TRIM4#

sub58905-32170

sub58905-32250

main58905-32170-K0iCV30,SV30,32,33..4FC..(ETO,LUM,VL,XT)199206-199406

TAUPE,TRIM9#

sub58905-32170

sub58905-32250

main58905-32170-S4iCV30,SV30,32,33..4FC..(ETO,LUM,VL,XT)199206-199406

MI.GRAY,TRIM1#

sub58905-32170

sub58905-32250

main58905-32180-02iSV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199206

TAUPE,TRIM9#

sub58905-32180

main58905-32180-03iSV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199206

MEDIUM GRAY,TRIM1#

sub58905-32180

main58905-32180-06iSV35..HT..ETO;CV30,SV30,32,33..HT..5F..(ETO,VE)199007-199206

SABLE,TRIM4#

sub58905-32180

main58905-32180-E0iSV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT)199206-199406

OAK,TRIM4#

sub58905-32180

main58905-32180-K0iSV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT)199206-199406

TAUPE,TRIM9#

sub58905-32180

main58905-32180-S4iSV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT)199206-199406

MI.GRAY,TRIM1#

sub58905-32180

main58905-32190-C0iSV32,33..4FC..ZX;SV32,33..HT..4FC..VX199206-199406

main58905-32200-02iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199007-199206

TAUPE,TRIM9#

sub58905-32220

sub58905-32240

main58905-32200-03iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199007-199206

MEDIUM GRAY,TRIM1#

sub58905-32220

sub58905-32240

main58905-32200-06iCV30,SV30,32,33..HT..4FC..(VR,VX)199007-199206

SABLE,TRIM4#

sub58905-32220

sub58905-32240

main58905-32210-02iVZV3#..4FC199007-199206

TAUPE,TRIM9#

sub58905-32230

sub58905-32231

main58905-32210-03iVZV3#..4FC199007-199206

MEDIUM GRAY,TRIM1#

sub58905-32230

sub58905-32231

main58905-32210-06iVZV3#..4FC199007-199206

SABLE,TRIM4#

sub58905-32230

sub58905-32231

main58905-32220-B0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

MI.GRAY,TRIM1#

sub58905-32240

main58905-32220-E0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

OAK,TRIM4#

sub58905-32240

main58905-32220-K0iCV30,SV30,32,33..4FC..(VR,VX,ZE,ZX)199206-199406

TAUPE,TRIM9#

sub58905-32240

main58905-32230-B0iVZV3#199206-199308

MI.GRAY,TRIM1#

sub58905-32231

main58905-32230-E0iVZV3#199206-199308

OAK,TRIM4#

sub58905-32231

main58905-32230-K0iVZV3#199206-199308

TAUPE,TRIM9#

sub58905-32231

main58905-32231-B0iVZV3#199308-199406

MI.GRAY,TRIM1#

sub58905-32231

main58905-32231-E0iVZV3#199308-199406

OAK,TRIM4#

sub58905-32231

main58905-32231-K0iVZV3#199308-199406

TAUPE,TRIM9#

sub58905-32231

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020iSV35..VX,ZX;CV30,SV30,32,33..5F..(VR,VX,ZE,ZX)199007-199406

sub58908-12080

main58908-32020iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199406

UPPER

sub58908-12080

main58908-32030iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199406

LOWER

58910CBOX ASSY, CONSOLE, REAR

main58910-32010-02iSV32,33..HT..4FC..VX199106-199206

sub58910-32010

main58910-32010-02iVZV3#..4FC199007-199105

sub58910-32010

main58910-32010-02iVZV32,33199105-199206

sub58910-32010

main58910-32010-03iVZV32,33199105-199206

sub58910-32010

main58910-32010-03iSV32,33..HT..4FC..VX199106-199206

sub58910-32010

main58910-32010-03iSV32,33..HT..4FC..VX199112-199206

sub58910-32010

main58910-32010-03iVZV3#..4FC199007-199105

sub58910-32010

main58910-32010-06iVZV3#..4FC199007-199105

sub58910-32010

main58910-32010-06iSV32,33..HT..4FC..VX199112-199206

sub58910-32010

main58910-32010-06iSV32,33..HT..4FC..VX199106-199206

sub58910-32010

main58910-32010-06iVZV32,33199105-199206

sub58910-32010

main58910-32010-E0iVZV3#199206-199406

sub58910-32010

main58910-32010-E0iVZV3#199206-199406

sub58910-32010

main58910-32010-E0iSV32,33..HT..4FC..VX199401-199406

sub58910-32010

main58910-32010-E0iSV32,33..HT..4FC..VX199309-199312

sub58910-32010

main58910-32010-K0iVZV3#199206-199406

sub58910-32010

main58910-32010-K0iSV32,33..HT..4FC..VX199206-199406

sub58910-32010

main58910-32010-S4iSV32,33..HT..4FC..VX199206-199406

sub58910-32010

main58910-32010-S4iSV32,33..HT..4FC..VX199309-199312

sub58910-32010

main58910-32010-S4iVZV3#199206-199406

sub58910-32010

main58910-32010-S4iSV32,33..HT..4FC..VX199401-199406

sub58910-32010

main58910-32020-02iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199206

TAUPE,TRIM9#

sub58910-32020

main58910-32020-03iCV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199206

MEDIUM GRAY,TRIM1#

sub58910-32020

main58910-32020-06iCV30,SV30,32,33,VZV3#..HT..4FC..(ETO,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

sub58910-32020

main58910-32020-E0iCV30,SV30,32,33,VZV3#..4FC199206-199406

OAK,TRIM4#

sub58910-32020

main58910-32020-K0iCV30,SV30,32,33,VZV3#..4FC199206-199406

TAUPE,TRIM9#

sub58910-32020

main58910-32020-S4iCV30,SV30,32,33,VZV3#..4FC199206-199406

MI.GRAY,TRIM1#

sub58910-32020

main58910-32030-02iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

TAUPE,TRIM9#

sub58910-32030

main58910-32030-03iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

MEDIUM GRAY,TRIM1#

sub58910-32030

main58910-32030-06iSV35..HT;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F199007-199206

SABLE,TRIM4#

sub58910-32030

main58910-32030-E0iSV35;CV30,SV30,32,33..5F199206-199406

OAK,TRIM4#

sub58910-32030

main58910-32030-K0iSV35;CV30,SV30,32,33..5F199206-199406

TAUPE,TRIM9#

sub58910-32030

main58910-32030-S4iSV35;CV30,SV30,32,33..5F199206-199406

MI.GRAY,TRIM1#

sub58910-32030

58916MAT, BOX BOTTOM

main58916-32090iSV32,33..HT..4FC..VX199112-199406

main58916-32090iVZV3#..4FC199007-199105

main58916-32090iSV32,33..HT..4FC..VX199309-199312

main58916-32090iVZV32,33199105-199406

main58916-32090iSV32,33..HT..4FC..VX199106-199406

main58916-32120iCV30,SV3#,VZV3#199007-199406

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-16010iSV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT)199306-199406

main58964-30040iSV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199306

main58964-32040iSV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199306

main58965-16010iSV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT)199306-199406

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iSV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199406

main58965-20020iSV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV)199007-199406

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-32020iCV30,SV3#,VZV3#199007-199406

7404

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9018305094

main90183-05094

9018305103

main90183-05103

9046805102

main90468-05102

9046806080

main90468-06080

9166540616

main91665-40616

9356055012

main93560-55012

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

32 parts on this diagram · 3 diagrams in section
