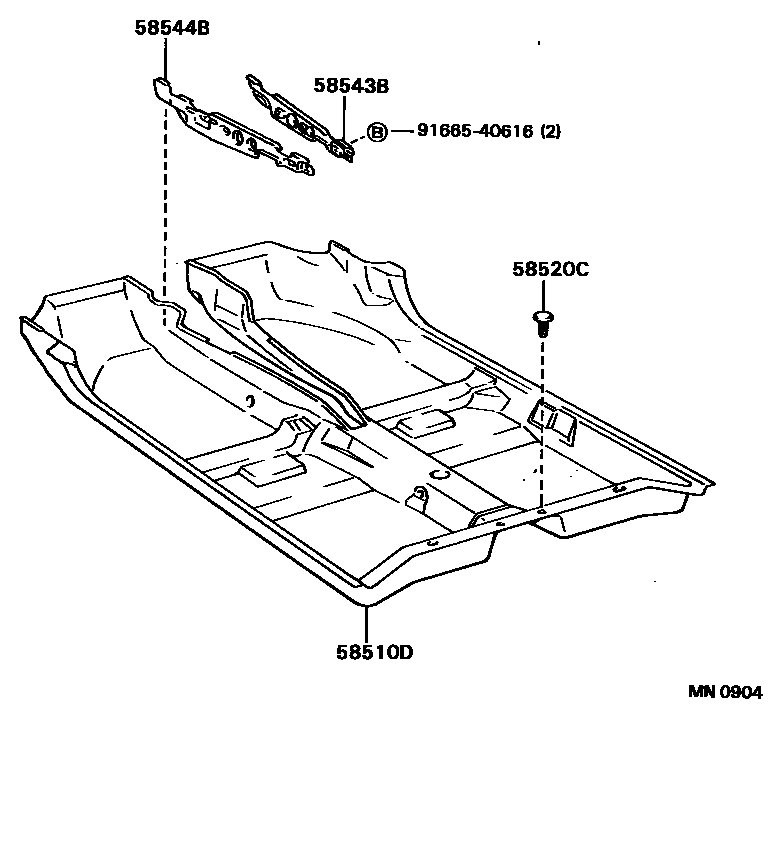

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-32360-02iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

TAUPE,TRIM9#

sub58510-32360

sub58510-32361

main58510-32360-03iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

sub58510-32360

sub58510-32361

main58510-32360-06iCV30,SV3#..HT..(ETO,VE)199007-199206

SABLE,TRIM4#

sub58510-32360

sub58510-32361

main58510-32360-16iCV30,SV3#..ETO,LUM,VL,XT199206-199305

MI.GRAY,TRIM1#

sub58510-32360

sub58510-32361

main58510-32360-E0iCV30,SV3#..ETO,LUM,VL,XT199206-199305

OAK,TRIM4#

sub58510-32360

sub58510-32361

main58510-32360-K0iCV30,SV3#..ETO,LUM,VL,XT199206-199305

TAUPE,TRIM9#

sub58510-32360

sub58510-32361

main58510-32361-16iCV30,SV3#..ETO,LUM,VL,XT199305-199406

MI.GRAY,TRIM1#

main58510-32361-E0iCV30,SV3#..ETO,LUM,VL,XT199305-199406

OAK,TRIM4#

main58510-32361-K0iCV30,SV3#..ETO,LUM,VL,XT199305-199406

TAUPE,TRIM9#

main58510-32370-02iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

sub58510-32370

sub58510-32371

main58510-32370-03iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

sub58510-32370

sub58510-32371

main58510-32370-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

sub58510-32370

sub58510-32371

main58510-32370-16iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199305

MI.GRAY,TRIM1#

sub58510-32370

sub58510-32371

main58510-32370-E0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199305

OAK,TRIM4#

sub58510-32370

sub58510-32371

main58510-32370-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199305

TAUPE,TRIM9#

sub58510-32370

sub58510-32371

main58510-32371-16iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199305-199406

MI.GRAY,TRIM1#

sub58510-32371

main58510-32371-E0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199305-199406

OAK,TRIM4#

sub58510-32371

main58510-32371-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199305-199406

TAUPE,TRIM9#

sub58510-32371

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01iCV30,SV3#..SED199007-199406

BLACK,TRIM1#,4#,9#

sub90467-06016

sub90467-07049

main90467-06016-01iCV30,SV3#..SED199007-199206

BLACK,TRIM1#,9#

sub90467-06016

sub90467-07049

58543BBRACKET, FLOOR CARPET, RH

main58543-32010iCV30,SV3#,VZV3#199007-199406

58544BBRACKET, FLOOR CARPET, LH

main58544-32010iCV30,SV3#,VZV3#199007-199406

9166540616

main91665-40616

5 parts on this diagram · 1 diagram in section
