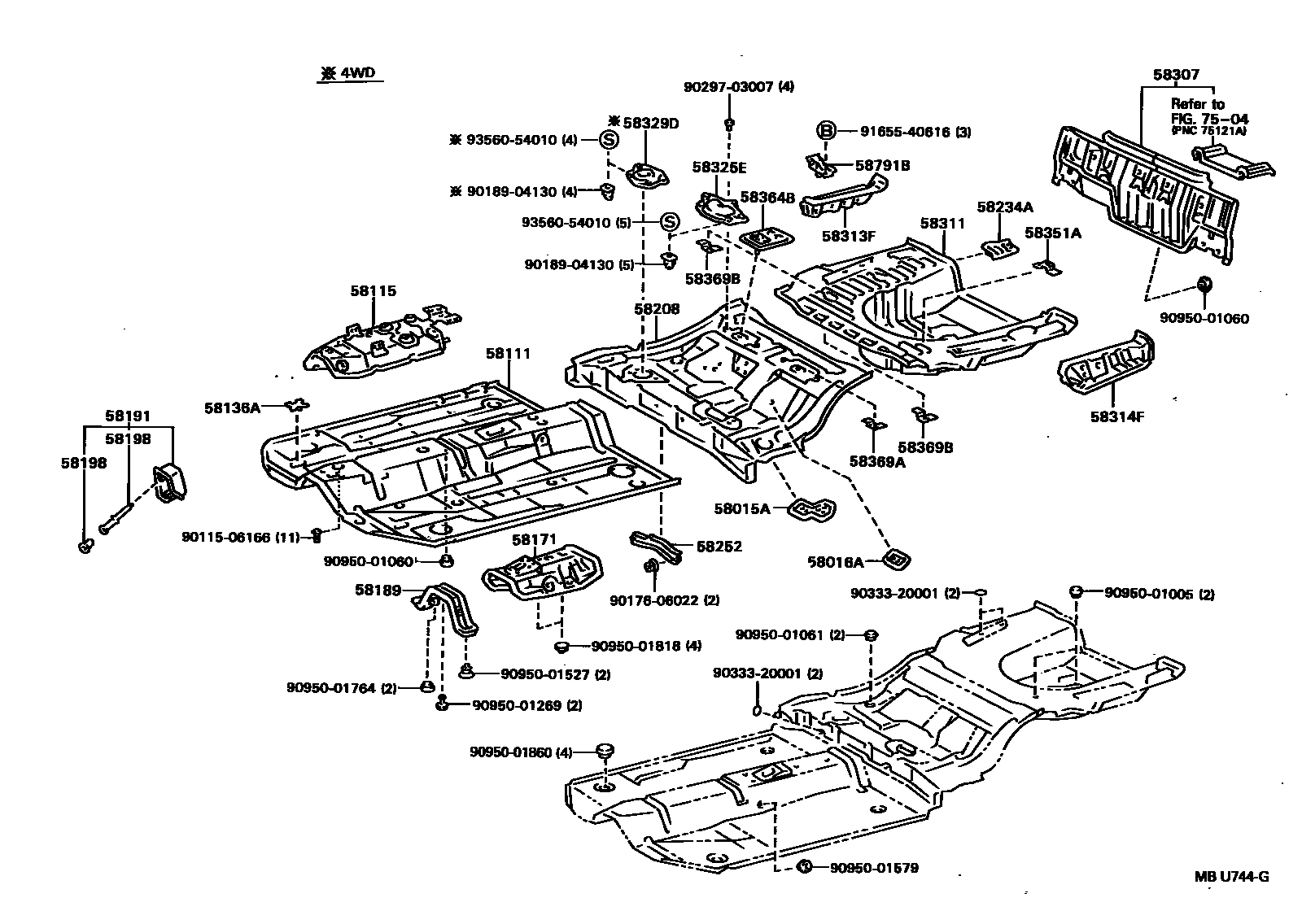

FLOOR PAN & LOWER BACK PANEL

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32040iCV30,SV3#,VZV3#¥2,060199007-199406

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32030iCV30,SV3#,VZV3#¥1,830199007-199406

sub58016-32031¥1,820

58111PAN, FRONT FLOOR

main58111-32060iCV30,SV3#,VZV3#..4FC¥51,900199007-199406

sub58111-32061¥51,700

main58111-32070iCV30,SV3#,VZV30,31..5F¥51,900199007-199406

sub58111-32071¥51,700

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58103-32050iCV30,SV3#,VZV3#¥6,200199007-199406

sub58103-32060¥8,500

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iCV30,SV3#,VZV3#¥220199007-199406

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32030iSV35¥8,200199007-199406

main58107-32040iCV30,SV30,32,33,VZV3#¥7,400199007-199406

sub58107-32041¥7,400

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-32010iCV30,SV30,32,33,VZV3#¥6,000199007-199406

main58277-32020iSV35¥5,800199007-199406

58191FOOTREST, FRONT FLOOR

main58191-32040iCV30,SV3#,VZV3#¥2,370199007-199406

58198CLIP, FOOTREST

main58198-32010iCV30,SV3#,VZV3#¥550199007-199406

L=111

main58198-32020iCV30,SV3#,VZV3#¥200199007-199406

L=28.5

58208PAN, CENTER FLOOR

main58211-32900iCV30,SV30,32,33,VZV3#¥36,800199007-199406

main58211-32901iSV35¥36,800199007-199406

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32040iCV30,SV3#,VZV3#¥1,650199007-199406

58252BRACE, FLOOR PANEL, REAR

main58252-32010iSV33,VZV31,33¥2,140199007-199406

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-32290iCV30,SV3#..SED¥18,600199007-199406

main58307-32300iCV30,SV3#,VZV3#..HT¥20,800199007-199406

main58307-32310iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)¥21,200199206-199406

sub58307-32300¥20,800

main58307-32320iCV30,SV32,33,35..SED..(VX,ZX)¥18,600199206-199406

sub58307-32290¥18,600

58311PAN, REAR FLOOR

main58311-32140iCV30,SV3#,VZV3#¥37,100199007-199406

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-32010iCV30,SV3#,VZV3#¥3,870199007-199406

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-32080iCV30,SV30,32,35,VZV30,32¥3,290199007-199406

main58314-32090iSV33,VZV31,33¥3,290199007-199406

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32030iCV30,SV3#,VZV3#¥1,460199007-199406

58329DGUSSET, SPARE WHEEL HOUSING CORNER

main58329-32010iSV35¥1,350199007-199406

58351ABRACKET, SPARE WHEEL CARRIER

main58351-32010iCV30,SV3#,VZV3#¥470199007-199406

sub58351-33010¥410

58364BBRACKET, FUEL TANK SUPPORT

main58365-32020iSV35¥1,460199007-199406

58369ABRACKET, FUEL TUBE, NO.3

main58369-20010iCV30,SV3#,VZV3#¥320199007-199406

58369BBRACKET, FUEL TUBE, NO.3

main58369-20010iSV33,VZV31,33¥320199007-199406

main58369-32020iSV33,VZV31,33¥390199007-199406

58791BCARRIER, JACK

main58791-32060iCV30,SV3#,VZV3#¥1,130199007-199406

7504

9011506166

main90115-06166¥90

9017606022

main90176-06022¥90

9018904130

main90189-04130¥130

9029703007

main90297-03007¥60

9033320001

main90333-20001¥70

9095001005

main90950-01005¥400

9095001060

main90950-01060¥200

9095001061

main90950-01061¥240

9095001269

main90950-01269¥170

9095001527

main90950-01527¥110

9095001579

main90950-01579¥200

9095001764

main90950-01764¥100

9095001818

main90950-01818¥190

9095001860

main90950-01860¥110

9165540616

main91655-40616¥120

9356054010

main93560-54010¥70

40 parts on this diagram · 1 diagram in section
