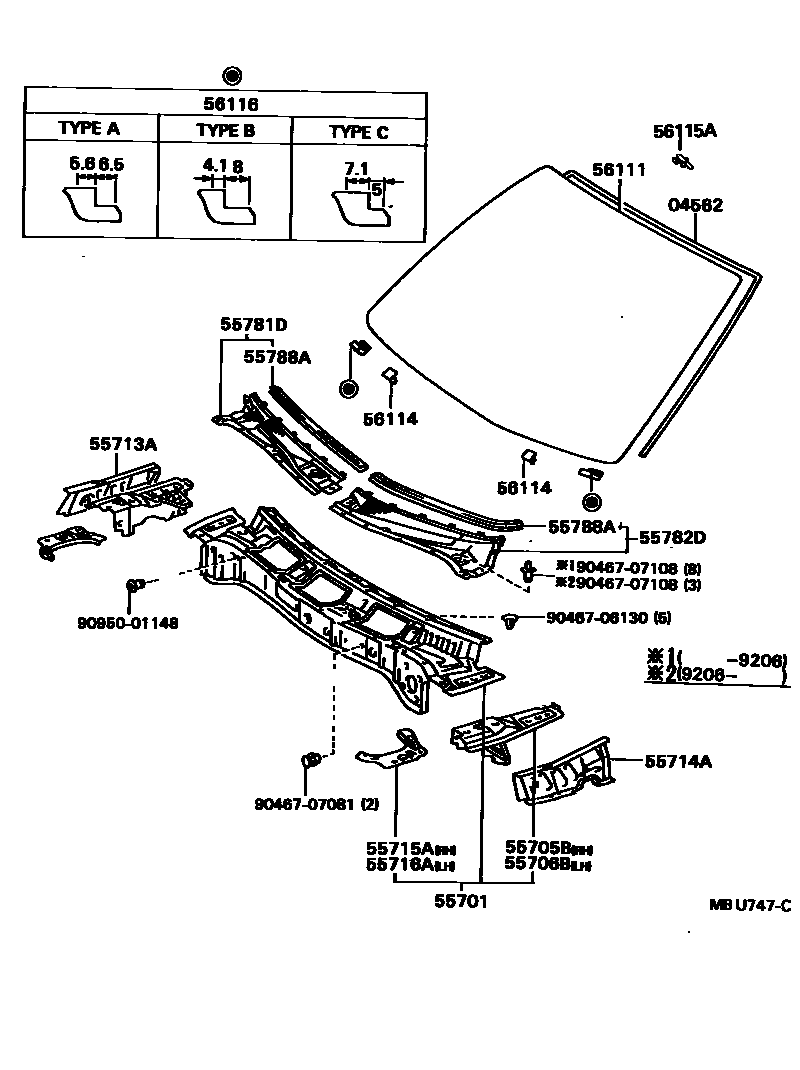

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iCV30,SV3#,VZV3#199007-199406

55701PANEL SUB-ASSY, COWL

main55700-32250iCV30..VX,ZX199206-199406

sub55700-32350

main55700-32270iCV30..ETO,LUM199206-199406

main55700-32290iCV30..ETO,LUM,VR,ZE,ZV199007-199406

sub55700-32270

main55700-32300iSV32..HT..VE;SV32..SED..(LUM,VE,VX,ZX);SV30,33,35..ETO,LUM,VE,VL,VR,XT,ZE,ZV199007-199406

sub55700-32270

main55700-32330iSV32,33..GT199007-199206

main55700-32340iSV32..HT..VX;SV33,35,VZV3#..PRO,VX,ZX199007-199406

sub55700-32350

main55700-32350iCV30..VX,ZX199206-199406

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-32020iCV30,SV3#,VZV3#199007-199406

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-32020iCV30,SV3#,VZV3#199007-199406

55713APANEL, COWL TOP SIDE, RH

main55713-32030iCV30,SV3#,VZV3#199007-199406

55714APANEL, COWL TOP SIDE, LH

main55714-32030iCV30,SV3#,VZV3#199007-199406

55715ABRACE, COWL TOP TO APRON, RH

main55715-32030iCV30,SV3#,VZV3#199007-199406

55716ABRACE, COWL TOP TO APRON, LH

main55716-32030iCV30,SV3#,VZV3#199007-199406

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32050iCV30,SV3#,VZV3#199007-199406

main55781-32060iCV30,SV3#,VZV3#199007-199406

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32050iCV30,SV3#,VZV3#199007-199406

main55782-32060iCV30,SV3#,VZV3#199007-199406

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-32010iCV30,SV3#,VZV3#199007-199406

main55789-32010iCV30,SV3#,VZV3#199007-199406

sub55788-32010

56111GLASS, WINDSHIELD

main56111-32230iCV30,SV30,35..VL,XT,ZV199007-199206

main56111-32300iCV30,SV3#..SED199007-199406

main56111-32310iCV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

sub56111-32300

main56111-32340iCV30,SV3#,VZV3#..HT199007-199406

main56111-32350iCV30,SV3#,VZV3#..HT199007-199406

sub56111-32340

main56111-32360iCV30,SV3#..SED199206-199406

main56111-32370iCV30,SV3#..SED199206-199406

sub56111-32360

main56111-32380iCV30,SV3#,VZV3#..HT199206-199406

main56111-32390iCV30,SV3#,VZV3#..HT199206-199406

sub56111-32380

56114RETAINER, WINDSHIELD GLASS

main56114-32030iCV30,SV3#,VZV3#199007-199406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20060iCV30,SV3#..SED199312-199406

56116SPACER, WINDSHIELD GLASS

main56116-32070iCV30,SV3#,VZV3#199007-199406

main56116-32080iCV30,SV3#,VZV3#199007-199406

main56116-32090iCV30,SV3#,VZV3#199007-199406

9046706130

main90467-06130

9046707081

main90467-07081

9046707108

main90467-07108

9095001148

main90950-01148

19 parts on this diagram · 1 diagram in section
