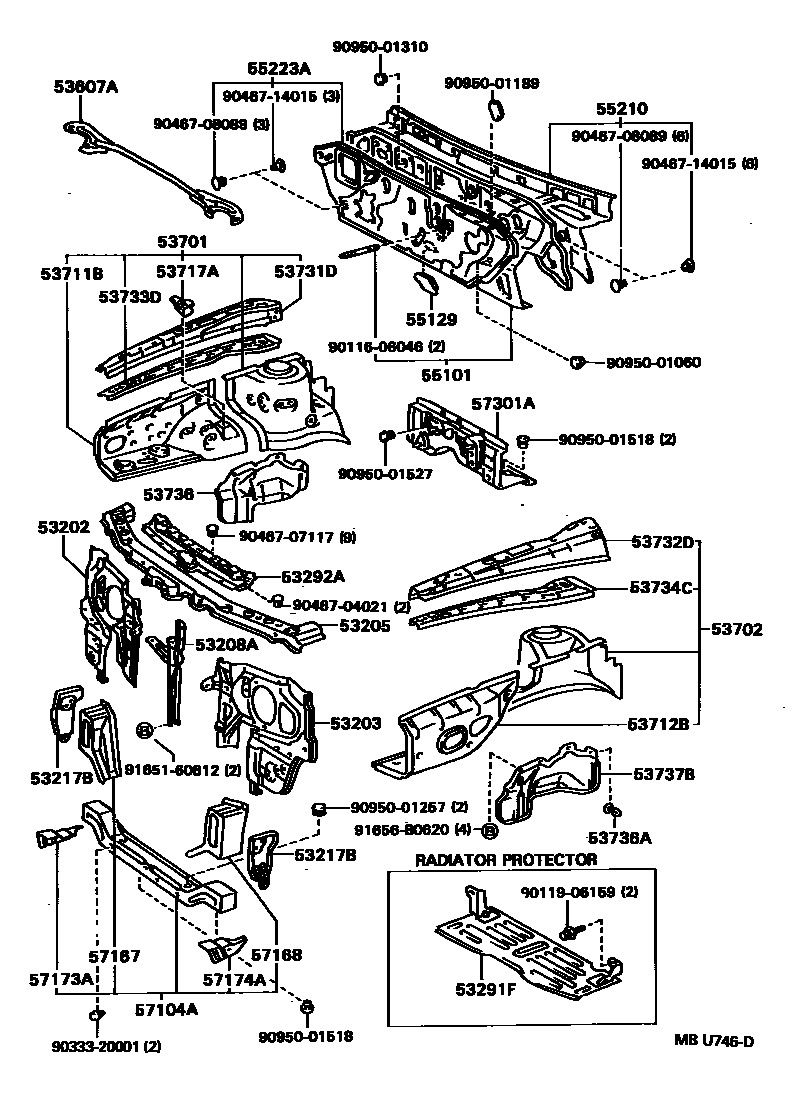

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-32020iCV30,SV3#..SED199007-199406

main53202-32030iCV30,SV3#..HT199007-199206

main53202-32040iVZV3#199007-199406

main53202-32050iCV30,SV3#..HT199206-199406

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-32030iCV30,SV3#..SED199007-199406

main53203-32040iCV30,SV3#..HT199007-199206

main53203-32050iVZV3#199007-199406

main53203-32060iCV30,SV3#..HT199206-199406

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-32040iCV30,SV3#,VZV3#199007-199406

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32120iCV30,SV3#..SED199007-199206

main53208-32130iCV30,SV3#..HT199007-199406

main53208-32140iVZV3#199007-199406

main53208-32150iCV30,SV3#..SED199206-199406

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32040iCV30,SV3#,VZV3#199007-199406

main53218-32040iCV30,SV3#,VZV3#199007-199406

53291FPLATE, RADIATOR SUPPORT

main53291-32010iCV30,SV3#,VZV3#199007-199406

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-32010iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

main53292-32020iCV30,SV3#..HT199007-199206

sub53292-32060

main53292-32030iVZV3#199007-199206

sub53292-32050

main53292-32040iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

main53292-32050iVZV3#199206-199406

main53292-32060iCV30,SV3#..HT199206-199406

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-32030iSV32,33..GT199007-199206

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32915iCV30,SV3#,VZV3#199007-199406

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32912iCV30,SV3#,VZV3#199007-199406

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32120iCV30,SV3#,VZV3#199007-199406

sub53711-32130

sub90467-07164

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32050iCV30,SV3#,VZV3#199007-199406

sub53712-32060

sub90467-07164

53717APLATE, FENDER APRON

main53717-32020iCV30,SV3#,VZV3#199007-199406

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32900iCV30,SV3#,VZV3#199007-199406

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32900iCV30,SV3#,VZV3#199007-199406

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-32030iCV30,SV3#,VZV3#199007-199406

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-32030iCV30,SV3#,VZV3#199007-199406

53736SEAL, FRONT FENDER APRON, RH

main53736-32020iCV30,SV3#,VZV3#199007-199406

main53736-32040iSV32,33,VZV3#..PRO,VX,ZX199007-199406

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09063iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199406

main90467-09063iCV30,SV3#,VZV3#199007-199406

53737BSEAL, FRONT FENDER APRON, LH

main53737-32020iCV30,SV3#,VZV3#199007-199406

55101PANEL SUB-ASSY, DASH

main55101-32220iSV35..4FC;SV32,33..4FC..GT199007-199406

main55101-32260iCV30,SV3#..5F199007-199406

sub55101-32220

sub90333-15002

sub90333-40001

main55101-32340iCV30,SV30,32,33,VZV3#..4FC199402-199406

55129COVER, DASH PANEL HOLE

main55129-32020iCV30,SV3#,VZV3#..4FC199007-199402

55210INSULATOR ASSY, DASH PANEL

main55210-32060iCV30,SV3#,VZV3#199007-199406

55223AINSULATOR, DASH PANEL, OUTER

main55223-32070iCV30,SV32,33,35,VZV3#199007-199406

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-32906iCV30,SV3#,VZV3#199007-199406

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32050iCV30,SV3#,VZV3#199007-199406

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32050iCV30,SV3#,VZV3#199007-199406

57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH

main57173-32030iCV30,SV3#,VZV3#199007-199406

57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-32020iCV30,SV3#,VZV3#199007-199406

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32100iCV30,SV30,32,35,VZV30..5F199007-199406

sub57301-32140

main57301-32110iCV30,SV30,32,35,VZV30,32..4FC199007-199406

sub57301-32150

main57301-32120iSV33,VZV31..5F199007-199406

main57301-32130iSV33,VZV31,33..4FC199007-199406

sub57301-32160

9011606046

main90116-06046

9011906159

main90119-06159

9033320001

main90333-20001

9046704021

main90467-04021

9046707117

main90467-07117

9046708089

main90467-08089

9046714015

main90467-14015

9095001060

main90950-01060

9095001189

main90950-01189

9095001257

main90950-01257

9095001310

main90950-01310

9095001518

main90950-01518

9095001527

main90950-01527

9165160612

main91651-60612

91656B0620

main91656-B0620

45 parts on this diagram · 1 diagram in section
