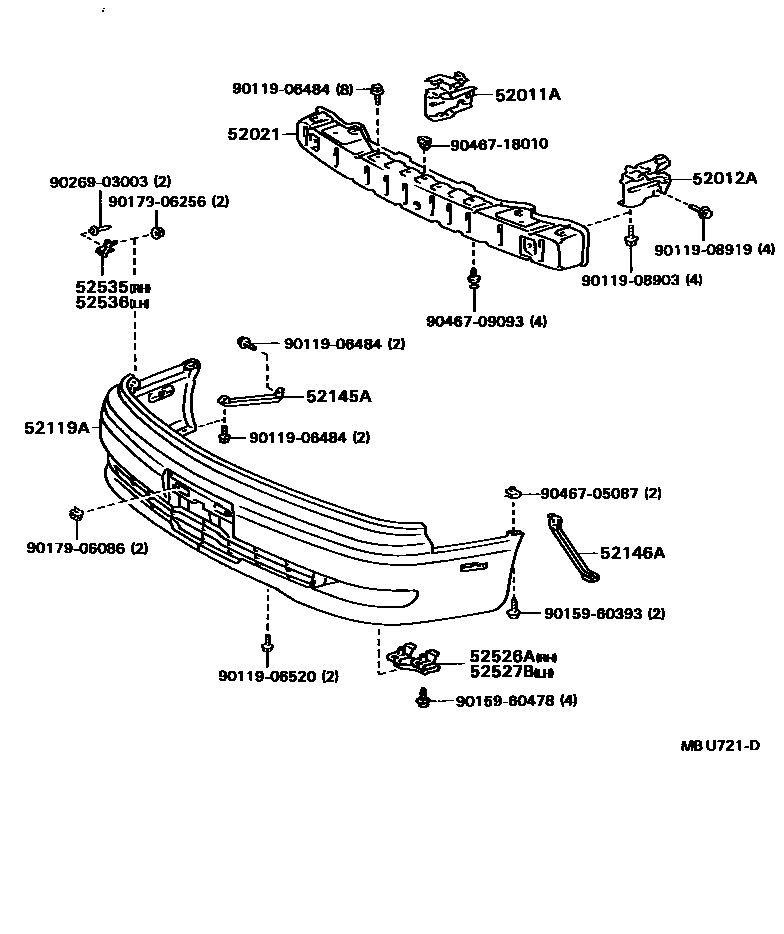

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32090iCV30,SV3#..SED199007-199206

main52011-32100iCV30,SV3#..HT199007-199406

main52011-32110iVZV3#199007-199406

main52011-32130iCV30,SV3#..SED199206-199406

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32070iCV30,SV3#..SED199007-199206

main52012-32080iCV30,SV3#..HT199007-199406

main52012-32090iVZV3#199007-199406

main52012-32110iCV30,SV3#..SED199206-199406

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32130iCV30,SV3#,VZV3#199007-199406

52119ACOVER, FRONT BUMPER

main52119-32350-02iCV30,SV3#..SED199007-199101

RED MICA M,3J9

sub52119-32918

main52119-32350-03iCV30,SV3#..SED199007-199206

AMETHYST SILVER M,920

sub52119-32918

main52119-32350-07iCV30,SV3#..SED199007-199206

MED TURQUOISE OPAL,744

sub52119-32918

main52119-32350-08iCV30,SV3#..SED199007-199206

SUPER WHITE 2,040

sub52119-32918

main52119-32350-13iCV30,SV3#..SED199007-199206

DARK BLUEISH GRAY M,191

sub52119-32918

main52119-32350-17iCV30,SV3#..SED199101-199206

GRAYISH GREEN M,6K6

sub52119-32918

main52119-32360-02iCV30,SV3#..HT199007-199101

RED MICA M,3J9

sub52119-32919

main52119-32360-03iCV30,SV3#..HT199007-199206

AMETHYST SILVER M,920

sub52119-32919

main52119-32360-07iCV30,SV3#..HT199007-199206

MED TURQUOISE OPAL,744

sub52119-32919

main52119-32360-08iCV30,SV3#..HT199007-199206

SUPER WHITE 2,040

sub52119-32919

main52119-32360-13iCV30,SV3#..HT199007-199206

DARK BLUEISH GRAY M,191

sub52119-32919

main52119-32360-17iCV30,SV3#..HT199101-199206

GRAYISH GREEN M,6K6

sub52119-32919

main52119-32370-02iVZV3#199007-199101

RED MICA M,3J9

sub52119-32920

main52119-32370-03iVZV3#199007-199206

AMETHYST SILVER M,920

sub52119-32920

main52119-32370-07iVZV3#199101-199206

GRAYISH GREEN M,6K6

sub52119-32920

main52119-32370-08iVZV3#199007-199206

SUPER WHITE 2,040

sub52119-32920

main52119-32370-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

sub52119-32920

main52119-32370-23iVZV3#199007-199206

DARK BLUEISH GRAY M,191

sub52119-32920

main52119-32380-03iCV30,SV3#..HT..(GT,VR,VX)199007-199206

DRESSY NIGHT TONNING,26R

main52119-32380-08iCV30,SV3#..HT..(GT,VR,VX)199007-199206

GRACIOUS PEARL TONNI,25R

main52119-32390-03iVZV3#199007-199206

DRESSY NIGHT TONNING,26R

main52119-32390-08iVZV3#199007-199206

GRACIOUS PEARL TONNI,25R

main52119-32400-A0iCV30,SV3#..SED199206-199406

SUPER WHITE 2,040

sub52119-32923

main52119-32400-B0iCV30,SV3#..SED199206-199406

DK BLUISHGRAY MICA,191

sub52119-32923

main52119-32400-E0iCV30,SV3#..SED199206-199406

LI BEIGE ME,4M3

sub52119-32923

main52119-32400-G0iCV30,SV3#..SED199206-199406

GRAYISH GREEN ME,6K6

sub52119-32923

main52119-32400-G1iCV30,SV3#..SED199206-199406

DK GREEN MICA,6M1

sub52119-32923

main52119-32400-K0iCV30,SV3#..SED199206-199406

GRAYISH PURPLE M,923

sub52119-32923

main52119-32410-A0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32410-B0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32410-E0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32410-G0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32410-G1iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32410-K0iCV30,SV32,33,35..SED..(VX,ZX)199206-199406

sub52119-32924

main52119-32420-A0iCV30,SV3#..HT199206-199406

SUPER WHITE 2,040

sub52119-32925

main52119-32420-B0iCV30,SV3#..HT199206-199406

DK BLUISHGRAY MICA,191

sub52119-32925

main52119-32420-E0iCV30,SV3#..HT199206-199406

LI BEIGE ME,4M3

sub52119-32925

main52119-32420-G0iCV30,SV3#..HT199206-199406

GRAYISH GREEN ME,6K6

sub52119-32925

main52119-32420-G2iCV30,SV3#..HT199206-199406

DK GREEN MICA,6M1

sub52119-32925

main52119-32420-K0iCV30,SV3#..HT199206-199406

GRAYISH PURPLE M,923

sub52119-32925

main52119-32430-G0iCV30,SV3#..HT..(VR,VX)199206-199406

OLIVE BREEZE TONING,25U

main52119-32430-G0iCV30,SV30..HT..ETO199212-199303

main52119-32430-G1iCV30,SV30,35..ETO199308-199406

main52119-32430-G1iCV30,SV30..HT..ETO199212-199303

main52119-32430-G1iCV30,SV3#..HT..(VR,VX)199206-199406

GRACIOUS PEARLTONING,25R

main52119-32440-A1iVZV3#199206-199406

SUPER WHITE 2,040

sub52119-32921

main52119-32440-B0iVZV3#199206-199406

DK BLUISHGRAY MICA,191

sub52119-32921

main52119-32440-E0iVZV3#199206-199406

LI BEIGE ME,4M3

sub52119-32921

main52119-32440-G0iVZV3#199206-199406

GRAYISH GREEN ME,6K6

sub52119-32921

main52119-32440-G1iVZV3#199206-199406

DK GREEN MICA,6M1

sub52119-32921

main52119-32440-K0iVZV3#199206-199406

GRAYISH PURPLE M,923

sub52119-32921

main52119-32450-A0iVZV3#199206-199406

GRACIOUS PEARLTONING,25R

main52119-32450-G2iVZV3#199206-199406

OLIVE BREEZE TONING,25U

main52119-32460-A0iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32460-B0iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32460-E0iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32460-G0iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32460-G2iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32460-K0iCV30,SV32,33,35..HT..VX199206-199406

sub52119-32926

main52119-32470-G0iCV30,SV32,33,35..HT..VX199206-199406

main52119-32470-G1iCV30,SV32,33,35..HT..VX199206-199406

main52119-32480-A1iVZV3#199206-199406

sub52119-32922

main52119-32480-B0iVZV3#199206-199406

sub52119-32922

main52119-32480-E0iVZV3#199206-199406

sub52119-32922

main52119-32480-G0iVZV3#199206-199406

sub52119-32922

main52119-32480-G1iVZV3#199206-199406

sub52119-32922

main52119-32480-K0iVZV3#199206-199406

sub52119-32922

main52119-32490-A0iVZV3#199206-199406

main52119-32490-G0iVZV3#199206-199406

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-32040iCV30,SV3#,VZV3#..HT199007-199406

main52145-32060iCV30,SV3#..SED199007-199206

main52145-32070iCV30,SV3#..SED199206-199406

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-32030iCV30,SV3#..SED199206-199406

main52146-32040iCV30,SV3#..SED199007-199206

main52146-32050iCV30,SV3#,VZV3#..HT199007-199406

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32080iCV30,SV3#,VZV3#199007-199206

main52526-32081iCV30,SV3#,VZV3#..HT199206-199406

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-32040iCV30,SV3#,VZV3#199007-199206

main52527-32041iCV30,SV3#,VZV3#..HT199206-199406

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-32050iCV30,SV3#..SED199007-199206

main52535-32060iCV30,SV3#,VZV3#..HT199007-199206

main52535-32070iCV30,SV3#..SED199206-199406

main52535-32080iCV30,SV3#,VZV3#..HT199206-199406

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-32040iCV30,SV3#..SED199007-199206

main52536-32050iCV30,SV3#,VZV3#..HT199007-199206

main52536-32060iCV30,SV3#..SED199206-199406

main52536-32070iCV30,SV3#,VZV3#..HT199206-199406

9011906484

main90119-06484

9011906520

main90119-06520

9011908903

main90119-08903

9011908919

main90119-08919

9015960393

main90159-60393

9015960478

main90159-60478

9017906086

main90179-06086

9017906256

main90179-06256

9026903003

main90269-03003

9046705087

main90467-05087

9046709093

main90467-09093

9046718010

main90467-18010

22 parts on this diagram · 6 diagrams in section
