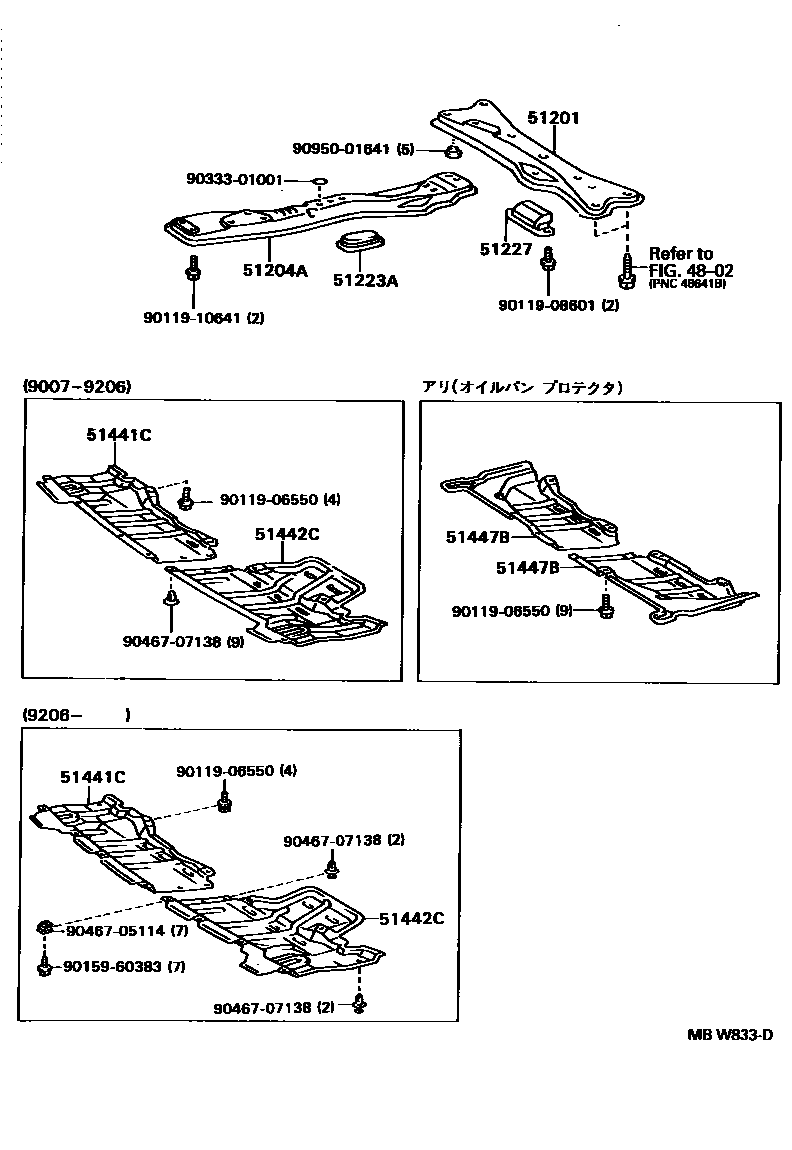

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32040iCV30,SV3#,VZV3#199007-199406

sub51201-32041

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32030iCV30,SV3#,VZV3#199007-199406

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iCV30,SV3#,VZV3#199007-199206

sub51223-20030

main51223-20030iCV30,SV3#,VZV3#199206-199312

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-32020iCV30,SV3#199007-199406

main51228-32020iVZV3#199007-199406

51441CCOVER, ENGINE UNDER, RH

main51441-32040iCV30,SV3#,VZV3#..HT199007-199406

main51441-32050iCV30,SV3#..SED199206-199406

51442CCOVER, ENGINE UNDER, LH

main51442-32050iCV30,SV3#,VZV3#..HT..4FC199007-199406

main51442-32060iCV30,SV3#,VZV30,31..5F199007-199406

main51442-32070iCV30,SV3#..SED..4FC199206-199406

main51442-32080iCV30,SV3#..SED..5F199206-199406

51447BPROTECTOR, OIL PAN

main51447-32030iCV30,SV3#,VZV3#199007-199406

main51448-32030iCV30,SV3#,VZV3#199007-199406

9011906550

main90119-06550

9011908601

main90119-08601

9011910641

main90119-10641

9015960383

main90159-60383

9033301001

main90333-01001

9046705114

main90467-05114

9046707138

main90467-07138

9095001641

main90950-01641

16 parts on this diagram · 5 diagrams in section
