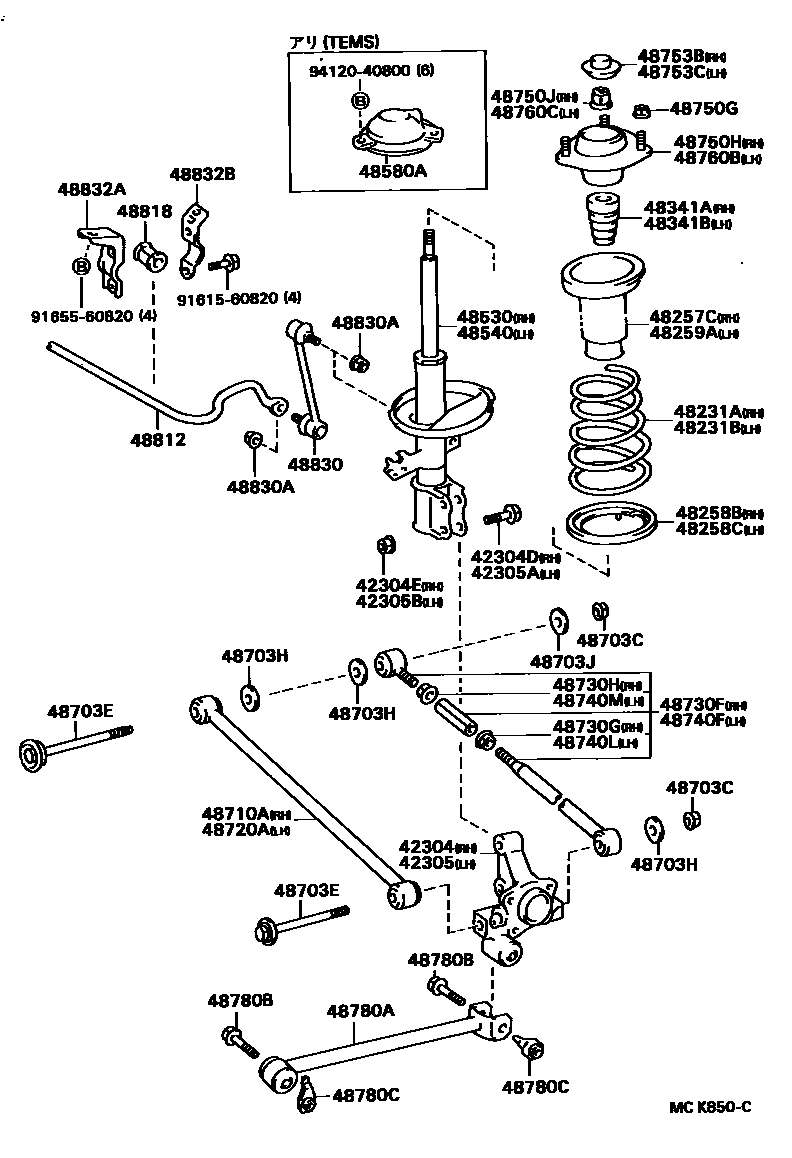

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20060iCV30,SV30199007-199406

main42304-20070iSV32,VZV30,32199007-199406

main42304-20090iSV32,VZV30,32..GT,PRO,VX,ZX199007-199406

main42304-29025iSV33,VZV31,33199007-199406

main42304-29045iSV33,VZV33199007-199406

main42304-32060iSV30..VR,ZE199007-199406

main42304-32070iSV35199007-199406

main42304-32080iSV35199007-199406

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iCV30,SV3#,VZV3#199007-199406

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iCV30,SV3#,VZV3#199007-199406

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20060iCV30,SV30199007-199406

main42305-20070iSV32,VZV30,32199007-199406

main42305-20090iSV32,VZV30,32..GT,PRO,VX,ZX199007-199406

main42305-29025iSV33,VZV31,33199007-199406

main42305-29045iSV33,VZV31,33199007-199406

main42305-32060iSV30..VR,ZE199007-199406

main42305-32070iSV35199007-199406

main42305-32080iSV35199007-199406

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iCV30,SV3#,VZV3#199007-199406

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iCV30,SV3#,VZV3#199007-199406

48231ASPRING, COIL, REAR RH

main48231-32700iSV30199007-199406

main48231-32710iCV30199007-199406

main48231-32820iSV32..ETO,LUM,VE,VX,ZX199007-199406

main48231-32860iSV33..LUM,VE,VX,ZX199007-199206

main48231-32870iSV33,VZV32199007-199406

main48231-32890iVZV31,33199007-199406

main48231-3H020iSV35199007-199406

main48231-3H040iSV32..GT199007-199206

main48231-3H050iSV33..ZX;SV33..HT..VX199206-199406

48231BSPRING, COIL, REAR LH

main48231-32700iSV30199007-199406

main48231-32710iCV30199007-199406

main48231-32820iSV32..ETO,LUM,VE,VX,ZX199007-199406

main48231-32860iSV33..LUM,VE,VX,ZX199007-199206

main48231-32870iSV33,VZV32199007-199406

main48231-32890iVZV31,33199007-199406

main48231-3H020iSV35199007-199406

main48231-3H040iSV32..GT199007-199206

main48231-3H050iSV33..ZX;SV33..HT..VX199206-199406

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-32040iCV30,SV30,35199007-199406

main48257-32060iSV32,33,VZV3#199007-199406

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32020iCV30,SV3#,VZV3#199007-199406

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32020iCV30,SV3#,VZV3#199007-199406

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48259-32010iCV30,SV30,35199007-199406

main48259-32020iSV32,33,VZV3#199007-199406

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32050iCV30,SV30,32,33,VZV3#199007-199202

sub48341-32051

main48341-32051iCV30,SV30,32,33,VZV3#199202-199212

sub48341-32052

main48341-32052iCV30,SV30,32,33,VZV3#199212-199406

main48341-32070iSV35199007-199210

sub48341-32071

main48341-32071iSV35199210-199406

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32050iCV30,SV30,32,33,VZV3#199007-199202

sub48341-32051

main48341-32051iCV30,SV30,32,33,VZV3#199202-199212

sub48341-32052

main48341-32052iCV30,SV30,32,33,VZV3#199212-199406

main48341-32070iSV35199007-199210

sub48341-32071

main48341-32071iSV35199210-199406

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-32220iSV30199007-199406

sub48530-32230

main48530-32230iCV30199007-199406

sub48530-80126

main48530-32240iSV32,33..ETO,LUM,VE,VX,ZX199007-199406

sub48530-32241

main48530-32250iSV32,33..GT199007-199206

sub48530-33070

main48530-32260iVZV3#199007-199406

sub48530-33070

main48530-32270iSV32,33..ZX;SV32,33..HT..VX199007-199406

sub48530-39255

main48530-32270iSV32,33..GT,VX,ZX199105-199406

sub48530-39255

main48530-32280iSV35199007-199206

main48530-32290iSV35199206-199406

main48530-32300iSV32,33..ZX;SV32,33..HT..VX199206-199403

sub48530-32240

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-32220iSV30199007-199406

sub48540-32230

main48540-32230iCV30199007-199406

sub48540-39525

main48540-32240iSV32,33..ETO,LUM,VE,VX,ZX199007-199406

sub48540-32241

main48540-32250iSV32,33..GT199007-199206

sub48540-33070

main48540-32260iVZV3#199007-199406

sub48540-33070

main48540-32270iSV32,33..ZX;SV32,33..HT..VX199007-199406

sub48540-39205

main48540-32270iSV32,33..GT,VX,ZX199105-199406

sub48540-39205

main48540-32280iSV35199007-199206

main48540-32290iSV35199206-199406

main48540-32300iSV32,33..ZX;SV32,33..HT..VX199206-199403

sub48540-32240

48580ACAP ASSY, SHOCK ABSORBER

main48580-32020iSV32,33..GT,VX,ZX199007-199206

main48580-33020iSV32,33,VZV3#..PRO,VX,ZX199206-199406

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12100iSV35199007-199406

BODY SIDE

main90179-14019iSV35199007-199406

CARRIER SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12126iSV35199007-199406

main90901-09001iCV30,SV30,32,VZV30,32199007-199406

main90901-19001iCV30,SV30,32,VZV30,32199007-199406

main90901-19002iSV35199007-199406

main90901-19003iSV35199007-199406

main90901-19004iSV33,VZV31,33199007-199406

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017iCV30,SV30,32,VZV30,32199007-199406

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-32010iCV30,SV30,32,VZV30,32199007-199406

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20270iSV35199202-199406

main48710-32031iSV30199007-199406

main48710-32040iCV30,SV32,VZV30,32199007-199406

main48710-32050iSV35199007-199202

sub48710-20270

main48710-32060iSV33,VZV31,33199007-199406

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20270iSV35199202-199406

main48710-32031iSV30199007-199406

main48710-32040iCV30,SV32,VZV30,32199007-199406

main48710-32050iSV35199007-199202

sub48710-20270

main48710-32060iSV33,VZV31,33199007-199406

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-32051iSV30199007-199406

main48730-32060iCV30,SV32,VZV30,32199007-199406

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16018iCV30,SV30,32,VZV30,32199007-199308

sub90179-16022

main90179-16022iCV30,SV30,32,VZV32199308-199406

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16004iCV30,SV30,32,VZV30,32199007-199308

main90179-16021iCV30,SV30,32,VZV32199308-199406

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-32011iSV30199007-199406

main48740-32020iCV30,SV32,VZV30,32199007-199406

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16004iCV30,SV30,32,VZV30,32199007-199308

main90179-16021iCV30,SV30,32,VZV32199308-199406

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16018iCV30,SV30,32,VZV30,32199007-199308

sub90179-16022

main90179-16022iCV30,SV30,32,VZV32199308-199406

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122iCV30,SV3#,VZV3#199007-199406

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-32070iCV30,SV30,35199007-199406

main48750-32130iSV32,33,VZV3#199007-199406

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94182-11400iCV30,SV3#,VZV3#199007-199406

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-32040iCV30,SV30,35199007-199106

sub48753-32041

main48753-32041iCV30,SV30,35199106-199406

main48753-32050iSV32,33,VZV3#199007-199406

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-32040iCV30,SV30,35199007-199106

sub48753-32041

main48753-32041iCV30,SV30,35199106-199406

main48753-32050iSV32,33,VZV3#199007-199406

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-32020iCV30,SV30,35199007-199406

main48760-32040iSV32,33,VZV3#199007-199406

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94182-11400iCV30,SV3#,VZV3#199007-199406

48780AROD ASSY, STRUT, REAR

main48780-12010iCV30,SV30,32,35,VZV30,32199007-199406

sub48780-32060

main48780-20070iSV33,VZV31,33199007-199406

48780BBOLT(FOR STRUT ROD)

main90119-12131iSV33,VZV31,33199007-199406

48780CNUT(FOR STRUT ROD)

main90171-12008iSV33,VZV31,33199007-199406

CARRIER SIDE

main90179-12062iCV30,SV30,32,35,VZV30,32199007-199404

CARRIER SIDE

main90179-12063iCV30,SV3#,VZV3#199007-199406

BODY SIDE

main90179-12091iCV30,SV30,32,35,VZV32199404-199406

CARRIER SIDE

48812BAR, STABILIZER, REAR

main48812-32260iSV33..ZX;SV33..HT..VX199206-199406

main48812-32260iSV33..GT199007-199206

main48812-32270iSV35199007-199406

main48812-32310iSV32..ZX;SV32..HT..VX199206-199406

main48812-32310iCV30,SV32..ETO,LUM,VE,VR,VX,ZE,ZV,ZX199007-199206

main48812-32330iSV32,VZV30,32..GT,PRO199007-199406

main48812-32400iSV33,VZV31,33..ETO,LUM,PRO,VE,VX,ZX199007-199406

main48812-32420iVZV31,33199007-199106

48818BUSH, STABILIZER, REAR

main48818-32050iVZV31,33199007-199106

main48818-32070iCV30199206-199406

main48818-32070iSV33..GT;CV30,SV32..ETO,LUM,VE,VR,VX,ZE,ZV,ZX199007-199206

main48818-32080iSV32,VZV3#..GT,PRO;SV33,35..ETO,LUM,VE,VX,ZV,ZX199007-199406

sub48818-21020

48830LINK ASSY, REAR STABILIZER

main48830-32030iCV30,SV32,33,VZV3#199007-199406

main48830-32040iSV35199007-199406

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iCV30,SV32,33,35,VZV3#199007-199406

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-32030iCV30,SV32,33,VZV3#199007-199406

main48832-32050iSV35199007-199406

main48832-32070iSV35199007-199406

48832BBRACKET, REAR STABILIZER BAR, NO.2

main48832-32040iCV30,SV32,33,VZV3#199007-199406

main48832-32060iSV35199007-199406

main48832-32080iSV35199007-199406

9161560820

main91615-60820

9165560820

main91655-60820

9412040800

main94120-40800

48 parts on this diagram · 3 diagrams in section
