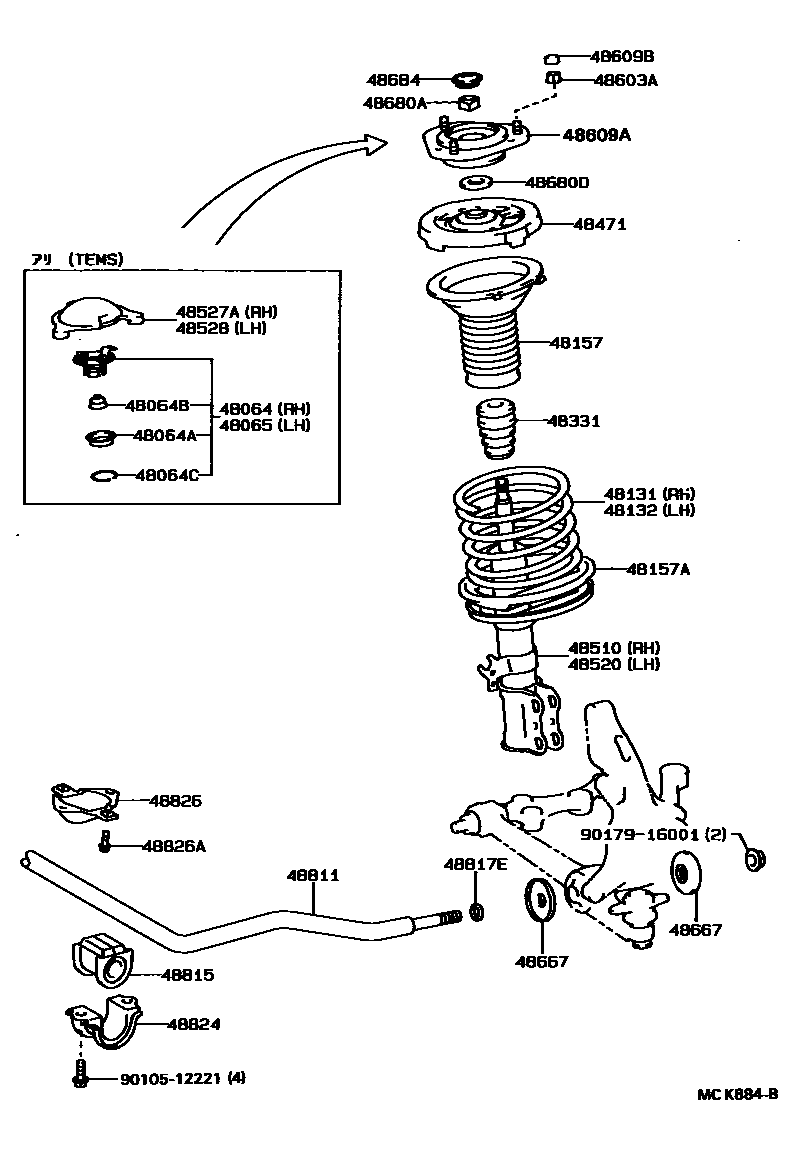

FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16010iSV32,33..SED..VX199206-199406

main48064-16010iSV32,33..GT,VX,ZX199105-199206

main48064-16010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iSV32,33..ZX;SV32,33,VZV3#..HT..(PRO,VX)199206-199406

main90304-26001iSV32,33..GT,VX,ZX199105-199206

main90304-26001iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

main90480-13019iSV32,33..GT,VX,ZX199105-199206

main90480-13019iSV32,33..SED..VX199206-199406

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

main90522-24001iSV32,33..GT,VX,ZX199105-199206

main90522-24001iSV32,33..SED..VX199206-199406

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16010iSV32,33..SED..VX199206-199406

main48065-16010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

main48065-16010iSV32,33..GT,VX,ZX199105-199206

48131SPRING, FRONT COIL, RH

main48131-3H010iSV30..5F199007-199406

main48131-3H040iSV30..4FC199007-199406

sub48131-3H100

main48131-3H060iSV32..4FC..GT199007-199206

main48131-3H070iSV32..5F..GT199007-199206

main48131-3H100iSV33..5F..(LUM,VE,VX,ZX)199007-199206

main48131-3H110iSV33..4FC..(LUM,VE,VX,ZX)199007-199206

main48131-3H130iSV32..4FC..(LUM,VE,VX,ZX);CV30,SV33..5F..(ETO,GT,VR,ZE,ZV)199007-199406

main48131-3H160iCV30..4FC;SV33..4FC..GT199007-199406

sub48131-3H060

main48131-3H170iSV35..5F199007-199406

main48131-3H200iSV35..4FC199007-199406

main48131-3H210iVZV30,31..5F199007-199206

main48131-3H240iVZV3#..4FC199007-199406

sub48131-3H200

main48131-3H260iSV32..5F..(LUM,VE,VX,ZX)199007-199406

main48131-3H270iSV32,33..5F..ZX;SV32,33..HT..5F..VX199206-199406

main48131-3H300iSV32,33..4FC..ZX;SV32,33..HT..4FC..VX199206-199406

48132SPRING, FRONT COIL, LH

main48131-3H010iSV30..5F199007-199406

main48131-3H040iSV30..4FC199007-199406

sub48131-3H100

main48131-3H060iSV32..4FC..GT199007-199206

main48131-3H070iSV32..5F..GT199007-199206

main48131-3H100iSV33..5F..(LUM,VE,VX,ZX)199007-199206

main48131-3H110iSV33..4FC..(LUM,VE,VX,ZX)199007-199206

main48131-3H130iSV32..4FC..(LUM,VE,VX,ZX);CV30,SV33..5F..(ETO,GT,VR,ZE,ZV)199007-199406

main48131-3H160iCV30..4FC;SV33..4FC..GT199007-199406

sub48131-3H060

main48131-3H170iSV35..5F199007-199406

main48131-3H200iSV35..4FC199007-199406

main48131-3H210iVZV30,31..5F199007-199206

main48131-3H240iVZV3#..4FC199007-199406

sub48131-3H200

main48131-3H260iSV32..5F..(LUM,VE,VX,ZX)199007-199406

main48131-3H270iSV32,33..5F..ZX;SV32,33..HT..5F..VX199206-199406

main48131-3H300iSV32,33..4FC..ZX;SV32,33..HT..4FC..VX199206-199406

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-32030iCV30,SV3#,VZV3#199007-199406

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-32030iCV30,SV3#,VZV3#199007-199406

48331BUMPER, FRONT SPRING, NO.1

main48331-32080iCV30,SV3#,VZV3#199007-199406

48471SEAT, FRONT SPRING, UPPER

main48044-32030iCV30,SV3#,VZV3#199007-199406

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-32160iSV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199310

sub48510-39215

main48510-32170iCV30199007-199406

sub48510-39525

main48510-32190iSV32,33..GT199007-199206

sub48510-32160

main48510-32200iVZV3#199007-199406

sub48510-32170

main48510-32210iSV32,33..VX,ZX199007-199406

sub48510-39535

main48510-32210iSV32,33..GT,VX,ZX199105-199206

sub48510-39535

main48510-32220iSV35199007-199406

main48510-32230iSV32,33..VX,ZX199206-199406

sub48510-32160

main48510-39215iSV30,32,33199310-199406

sub48510-80167

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-32160iSV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199310

sub48520-39035

main48520-32170iCV30199007-199406

sub48520-39205

main48520-32190iSV32,33..GT199007-199206

sub48520-32160

main48520-32200iVZV3#199007-199406

sub48520-32170

main48520-32210iVZV3#199007-199406

sub48520-39215

main48520-32210iSV32,33..GT,VX,ZX199105-199206

sub48520-39215

main48520-32220iSV35199007-199406

main48520-32230iSV32,33..HT..VX199206-199406

sub48520-32160

main48520-39035iSV30,32,33199310-199406

sub48520-39745

48527ACAP, FRONT SHOCK ABSORBER, RH

main48527-32010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

main48527-32010iSV32,33..GT,VX,ZX199105-199206

main48527-32010iSV32,33..SED..VX199206-199406

48528CAP, FRONT SHOCK ABSORBER, LH

main48528-32010iVZV32,33199105-199206

main48528-32010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199105

main48528-32010iSV32,33..SED..VX199206-199406

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iCV30,SV3#,VZV3#199007-199406

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-32050iSV32,33..GT199007-199206

main48609-32050iSV32,33..VX,ZX199007-199406

main48609-32050iSV32,33..VX,ZX199105-199206

main48609-32100iCV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

48609BCAP(FOR FRONT SUSPENSION SUPPORT)

main90339-15002iCV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199101

48667RETAINER, STRUT BAR

main48667-32020iCV30,SV3#,VZV3#199007-199406

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iSV32,33..GT,VX,ZX199007-199406

main90179-14029iSV32,33..GT,VX,ZX199105-199206

main94182-11400iCV30,SV3#,VZV3#199007-199406

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iCV30,SV3#,VZV3#199007-199406

48684COVER, BEARING DUST

main48684-32010iCV30,SV3#,VZV3#199007-199406

48811BAR, STABILIZER, FRONT

main48811-32140iVZV30,32199007-199206

main48811-32160iCV30,SV3#,VZV31,33199007-199206

main48811-32240iVZV32199206-199406

main48811-32260iCV30,SV3#,VZV33199206-199406

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-32080iVZV30,32199007-199406

main48815-32090iCV30,SV3#,VZV31,33199007-199406

48817ESPACER(FOR STABILIZER BAR)

main90560-16005iCV30,SV3#,VZV3#199007-199406

48824BRACKET, STABILIZER, FRONT

main48824-32040iCV30,SV3#,VZV3#199007-199406

48826PROTECTOR, FRONT STABILIZER BAR

main48826-32010iCV30,SV3#,VZV3#199007-199406

48826ABOLT(FOR FRONT STABILIZER BAR PROTECTOR)

main90119-08601iCV30,SV3#,VZV3#199007-199406

9010512221

main90105-12221

9017916001

main90179-16001

30 parts on this diagram · 1 diagram in section
