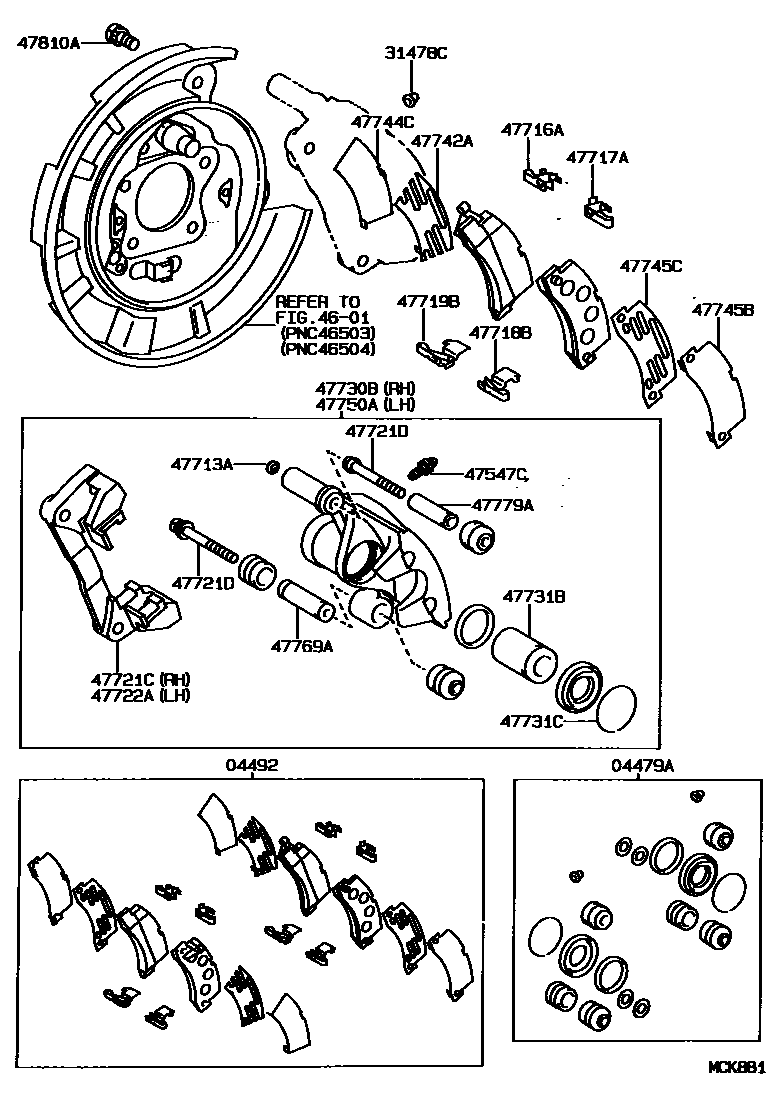

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20120iSV32,33..ZX;SV32,33..HT..VX199206-199406

sub04479-33040

main04479-20120iSV35;SV32,33,VZV3#..GT,PRO199007-199406

sub04479-33040

main04479-32040iCV30,SV32,33199007-199406

04492PAD KIT, DISC BRAKE, REAR

main04492-32080iSV32,33,35,VZV3#199007-199206

sub04492-33010

main04492-33010iCV30,SV32,33,35,VZV3#199206-199406

sub04466-32010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSV32,33,35,VZV3#199007-199406

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iSV32,33,35,VZV3#199007-199406

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iSV32,33,35,VZV3#199007-199406

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32020iSV32,33,35,VZV3#199007-199406

sub47716-33070

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32020iCV30,SV32,33,35,VZV3#199007-199406

sub47717-33050

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-32010iSV32,33,35,VZV3#199007-199406

sub47718-33010

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-32010iSV32,33,35,VZV3#199007-199406

sub47719-33010

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20400iCV30,SV32,33,35,VZV3#199211-199406

sub47721-33070

sub47715-33020

main47721-32130iSV32,33,35,VZV3#199007-199211

sub47721-33070

sub47715-33020

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133iSV32,33,35,VZV3#199007-199406

main90119-08547iCV30,SV32,33,35,VZV3#199007-199406

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20400iCV30,SV32,33,35,VZV3#199211-199406

sub47721-33070

sub47715-33020

main47721-32130iSV32,33,35,VZV3#199007-199211

sub47721-33070

sub47715-33020

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20510iSV32,33..ZX;SV32,33..HT..VX199211-199406

sub47730-33100

main47730-32140iSV32,33..LUM,VE,VX,ZX199007-199406

sub47730-33130

main47730-32150iSV35;SV32,33,VZV3#..GT,PRO199007-199211

sub47730-33100

main47730-32150iSV32,33..ZX;SV32,33..HT..VX199206-199211

sub47730-33100

47731BPISTON, REAR DISC BRAKE

main47731-20130iSV35;SV32,33,VZV3#..GT,PRO199007-199406

main47731-20130iSV32,33..ZX;SV32,33..HT..VX199206-199406

main47731-32030iCV30,SV32,33199007-199406

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002iCV30,SV32,33199007-199406

main90522-43003iSV32,33..ZX;SV32,33..HT..VX199206-199406

main90522-43003iSV35;SV32,33,VZV3#..GT,PRO199007-199406

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031iSV32,33,35,VZV3#199007-199406

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-32030iSV32,33,35,VZV3#199007-199406

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32090iSV32,33,35,VZV3#199007-199406

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32090iCV30,SV32,33,35,VZV3#199007-199406

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20250iSV35,VZV3#199211-199406

sub47750-33100

main47750-32140iSV32,33..LUM,VE,VX,ZX199007-199406

sub47750-33130

main47750-32150iSV32,33..ZX;SV32,33..HT..VX199206-199211

sub47750-33100

main47750-32150iSV35;SV32,33,VZV3#..GT,PRO199007-199211

sub47750-33100

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iSV32,33,35,VZV3#199007-199406

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32020iSV32,33,35,VZV3#199007-199406

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iSV32,33,VZV3#199007-199406

main90119-10445iSV35199007-199406
