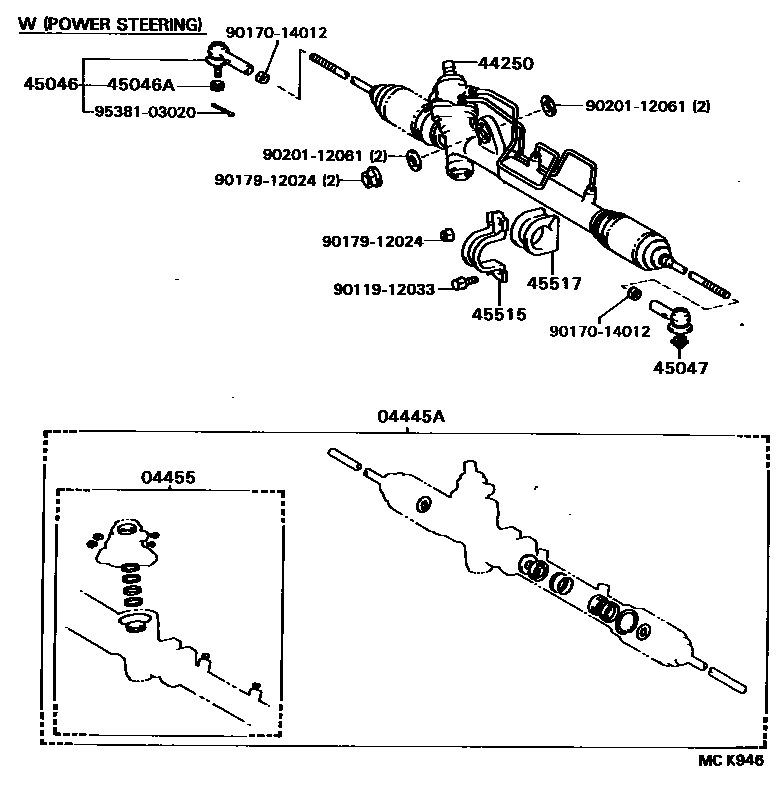

FRONT STEERING GEAR & LINK

0001 1����� ������ ���� �� 0002 1����� ������ ���� �� 0003 1���� ���� �� 0004 1���� ���� �� 0005 1 0006 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-32050iVZV30199007-199105

sub04445-32051

main04445-32050iVZV32199105-199206

sub04445-32051

main04445-32051iVZV32199206-199406

main04445-32060iSV32,VZV30..PRO,VX,ZX199007-199105

sub04445-32061

main04445-32060iSV32,VZV32..PRO,VX,ZX199105-199206

sub04445-32061

main04445-32061iSV32,VZV32..PRO,VX,ZX199206-199406

main04445-32070iSV33,VZV31,33199007-199406

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-32020iSV35;CV30,SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV199007-199105

sub04455-32022

main04455-32020iSV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV199105-199206

sub04455-32022

main04455-32022iVZV32199206-199406

main04455-32040iSV32,VZV30..PRO,VX,ZX199007-199105

main04455-32040iSV32,VZV32..PRO,VX,ZX199105-199406

main04455-32050iSV33,VZV31,33199007-199406

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-32120iSV35;CV30,SV30,32..ETO,LUM,VE,VL,VR,XT,ZE,ZV199007-199405

sub44250-32121

main44250-32121iCV30199405-199406

sub44250-32122

main44250-32140iSV32..VX,ZX199007-199208

sub44250-32141

main44250-32141iSV32..VX,ZX199208-199406

main44250-32150iVZV32199007-199208

sub44250-32151

main44250-32150iSV32..ZX;SV32..HT..VX199206-199208

sub44250-32151

main44250-32151iVZV32199208-199406

main44250-32160iSV33..ETO,LUM,VE,VX,ZX199007-199406

main44250-32170iVZV31,33199007-199206

sub44250-32180

main44250-32180iVZV33199206-199406

main44250-32180iSV33..GT199007-199206

main44250-32220iSV32..GT199007-199206

main44250-32220iVZV32199105-199406

main44250-32220iVZV30199007-199105

main44250-32230iSV35;SV30,32..ETO,LUM,VL,VR,XT,ZE199206-199405

sub44250-32231

main44250-32231iSV35;SV30,32..ETO,LUM,VL,VR,XT,ZE199405-199406

sub44250-32232

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCV30,SV3#,VZV3#199007-199406

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCV30,SV3#,VZV3#199007-199406

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCV30,SV3#,VZV3#199007-199406

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20110iSV33,VZV31,33199007-199406

main45515-32080iCV30,SV30,32,35,VZV30,32199007-199406

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20030iSV33,VZV31,33199007-199406

main45517-32050iCV30,SV30,32,35,VZV30,32199007-199406

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9020112061

main90201-12061

9538103020

main95381-03020

13 parts on this diagram · 6 diagrams in section
