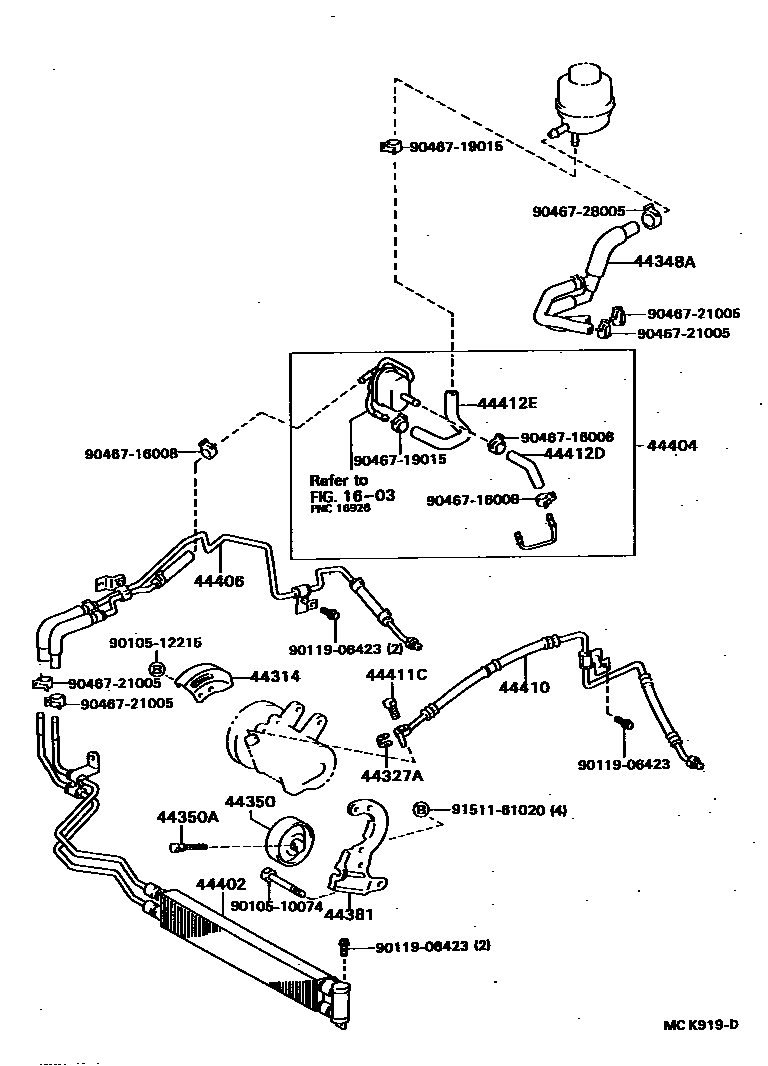

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1���� ������ 0007 1����� ������ ������

1603

44314COVER, PULLEY

main44314-32010iCV30199007-199206

main44314-32030iCV30199206-199406

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV30,SV30199007-199406

main44327-12020iSV32,VZV30..PRO,VX,ZX199007-199406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32140iSV30..VR,ZE199007-199206

main44348-32150iCV30199206-199406

main44348-32160iSV32,33,35199007-199206

sub44348-32162

main44348-32161iSV32,33,35199206-199401

sub44348-32162

main44348-32162iSV32,33,35199401-199406

main44348-32170iVZV3#199206-199406

main44348-32180iVZV3#199007-199206

main44348-32190iSV30199007-199206

main44348-32200iCV30199007-199206

main44348-32210iSV32,33,35..GT,VX,ZX199007-199406

main44348-32220iSV30199206-199406

44350PULLEY ASSY, POWER STEERING IDLE

main44350-32010iCV30199007-199111

main44350-32011iCV30199111-199404

sub44350-32020

main44350-32020iCV30199404-199406

44350ABOLT(FOR POWER STEERING IDLE PULLEY)

main90109-08106iCV30199007-199404

main90109-08106iCV30..4FC..LUM;CV30..HT..4FC..ETO;CV30..5F..(ETO,LUM)199404-199406

main90109-08245iCV30199404-199406

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-32010iCV30199007-199105

main44381-32011iCV30199105-199404

sub44381-32030

sub90109-08245

main44381-32011iCV30..4FC..LUM;CV30..HT..4FC..ETO;CV30..5F..(ETO,LUM)199404-199406

sub44381-32030

sub90109-08245

main44381-32020iCV30199404-199406

sub44381-32030

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32160iCV30..HT199206-199406

main44402-32170iSV32..SED..(VX,ZX)199206-199406

main44402-32180iCV30..SED199206-199406

main44402-32190iVZV3#199007-199406

main44402-32200iSV32..HT..VX199007-199406

main44402-32210iSV35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV199007-199406

main44402-32220iCV30199007-199206

main44402-32230iSV33199007-199406

44404FILTER SUB-ASSY, POWER STEERING OIL

main44404-32010iCV30199007-199206

44406TUBE SUB-ASSY, RETURN

main44406-32110iCV30199206-199406

main44406-32190iVZV30199007-199307

main44406-32200iSV32..VX,ZX199007-199307

main44406-32220iVZV32199105-199307

main44406-32220iVZV30199007-199105

main44406-32220iVZV30199105-199206

main44406-32221iVZV32199307-199406

main44406-32230iCV30199007-199012

sub44406-32231

main44406-32231iCV30199012-199206

main44406-32240iVZV31,33199007-199307

main44406-32241iVZV33199307-199406

main44406-32270iVZV32199307-199406

main44406-32280iSV32..VX,ZX199307-199406

44410TUBE ASSY, PRESSURE FEED

main44410-32410iCV30199206-199406

main44410-32420iVZV30199007-199102

main44410-32421iVZV30199102-199105

sub44410-32422

main44410-32421iVZV32199105-199109

sub44410-32422

main44410-32422iVZV32199109-199206

main44410-32430iSV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV199007-199102

main44410-32431iSV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV199102-199206

main44410-32440iSV32..VX,ZX199007-199102

main44410-32441iSV32..VX,ZX199102-199206

main44410-32450iCV30199007-199206

main44410-32460iVZV32199206-199406

main44410-32470iVZV32199206-199406

main44410-32480iSV32..VX,ZX199206-199406

main44410-32490iSV33,35;SV30,32..ETO,LUM,VL,VR,XT,ZE199206-199406

main44410-32500iVZV30199007-199102

main44410-32502iVZV32199109-199206

main44410-32502iVZV30,31,33199102-199206

main44410-32502iVZV31199102-199109

44411HOSE, PRESSURE FEED

main44411-32130iVZV3#199206-199406

main44411-32140iSV32,33,35199206-199406

main44411-32150iVZV3#199007-199102

sub44411-32152

main44411-32151iVZV3#199102-199109

sub44411-32152

main44411-32152iVZV3#199109-199206

sub44411-32130

main44411-32160iSV32,33,35199007-199102

sub44411-32161

sub90401-16021

main44411-32161iSV32,33,35199102-199206

main44411-32170iSV30199007-199206

sub44411-32180

main44411-32180iSV30199206-199406

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iCV30,SV30199007-199406

44412DHOSE, RETURN, NO.1

main44412-32080iCV30199007-199206

44412EHOSE, RETURN, NO.2

main44412-32090iCV30199007-199206

9010510074

main90105-10074

9010512215

main90105-12215

9011906423

main90119-06423

9046716008

main90467-16008

9046719015

main90467-19015

9046721005

main90467-21005

9046728005

main90467-28005

9151161020

main91511-61020

23 parts on this diagram · 7 diagrams in section
