TRANSFER ASSEMBLY & GASKET KIT

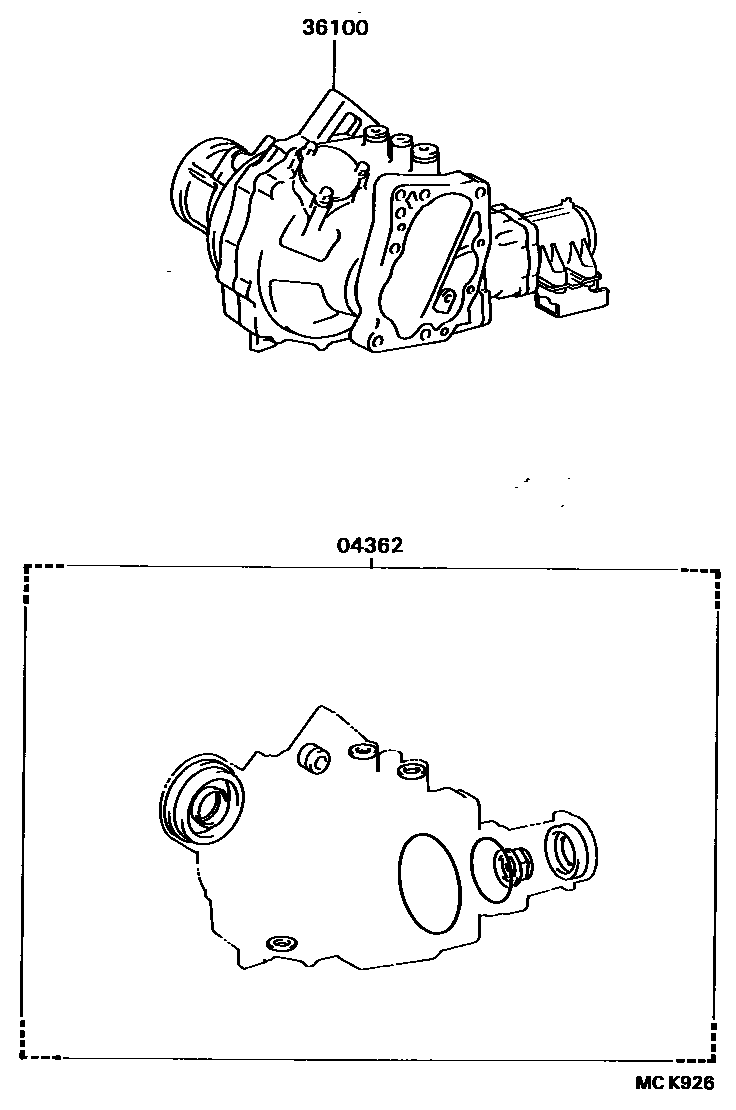

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-32020i199007-199406
main04362-32030i199007-199206
sub04362-32031
main04362-32040i199206-199406
sub04362-32041
36100TRANSFER ASSY
main36100-32040i199007-199406
main36100-32050i199007-199206
sub36100-32051
main36100-32061i199206-199406

2 parts on this diagram · 2 diagrams in section
