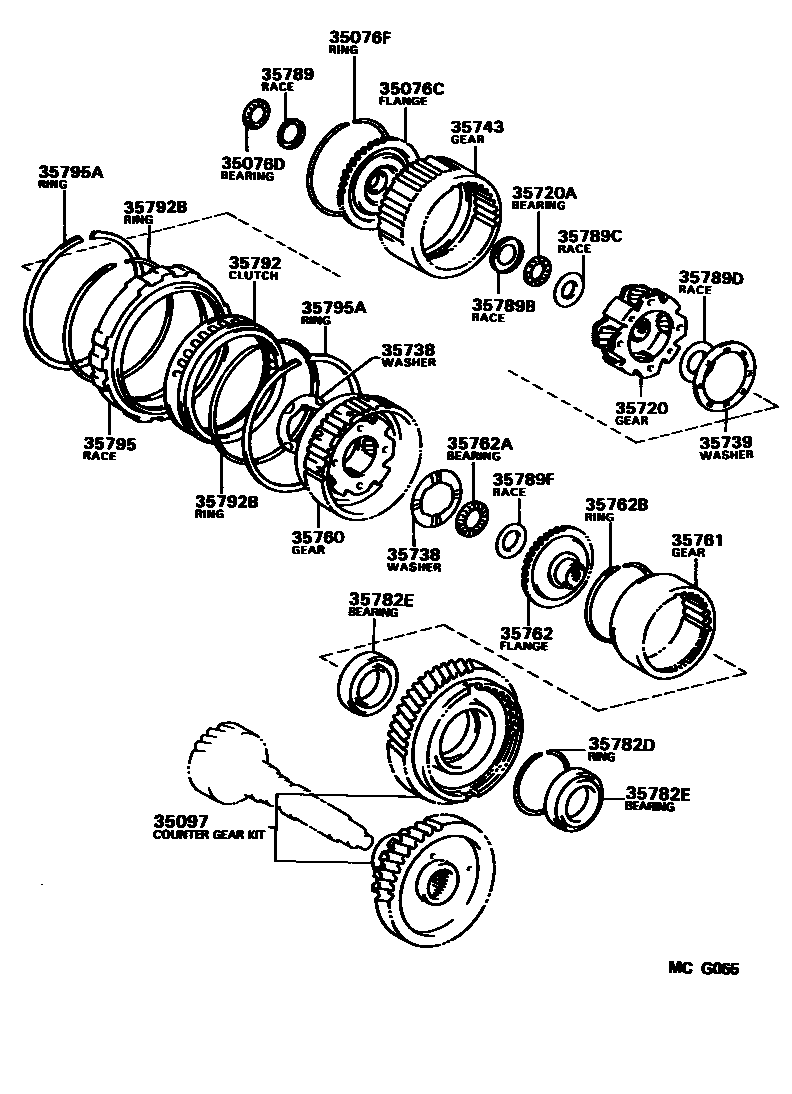

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A140L,A140E,A540H 0002 1A540E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-32011iCV30,SV3#..4FC..(ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199406

main35076-32020iVZV3#..4FC199007-199406

main35076-32030iSV32,33..4FC..GT199106-199206

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iCV30,SV3#..4FC199007-199406

main90374-31001iVZV3#..4FC199007-199406

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iCV30,SV3#..4FC199007-199406

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-20040iCV30,SV30,32,33..4FC199007-199406

main35097-32020iSV35,VZV3#..4FC199007-199406

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iCV30,SV3#..4FC199007-199406

main35720-32020iVZV3#..4FC199007-199406

sub35720-33010

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iCV30,SV3#..4FC199007-199406

main90374-30008iVZV3#..4FC199007-199406

sub90374-30014

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-32010iCV30,SV30,32,33..4FC199007-199406

main35738-32020iVZV3#..4FC199007-199406

main35738-32030iSV35..4FC199007-199406

main35738-33010iVZV3#..4FC199105-199109

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iCV30,SV3#..4FC199007-199406

main35739-32020iVZV3#..4FC199007-199406

35743GEAR, FRONT PLANETARY RING

main35743-32020iSV35..4FC199007-199206

sub35743-32040

main35743-32030iVZV3#..4FC199007-199105

main35743-32040iCV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX)199102-199406

main35743-33010iVZV3#..4FC199105-199406

35760GEAR ASSY, REAR PLANETARY

main35760-32010iSV30..4FC199405-199406

main35760-32020iVZV3#..4FC199007-199105

sub35760-33010

sub35738-33010

main35760-32030iCV30,SV3#..4FC199007-199406

main35760-33010iVZV3#..4FC199105-199406

35761GEAR, REAR PLANETARY RING

main35761-32010iCV30,SV3#..4FC199007-199406

main35761-32020iVZV3#..4FC199007-199406

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iCV30,SV30,32,33..4FC199007-199406

main35762-32021iVZV3#..4FC199007-199406

main35762-32030iSV35..4FC199206-199406

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-22002iVZV3#..4FC199007-199406

main90374-24002iCV30,SV3#..4FC199007-199406

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iCV30,SV3#,VZV3#..4FC199007-199406

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90521-67001iCV30,SV3#,VZV3#..4FC199007-199406

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077iCV30,SV3#,VZV3#..4FC199306-199406

main90368-40004iCV30,SV30,32,33,VZV3#..4FC199007-199306

sub90366-40071

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-32050iCV30,SV3#..4FC199007-199406

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iCV30,SV3#..4FC199007-199406

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iCV30,SV3#..4FC199007-199406

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iCV30,SV3#..4FC199007-199406

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iCV30,SV3#..4FC199007-199406

35792CLUTCH, 1 WAY, NO.2

main35792-12010iCV30,SV30,32,33..4FC199212-199406

sub35792-20020

main35792-20020iCV30,SV30,32,33..4FC199007-199212

main35792-32011iSV35..4FC199007-199406

main35792-32020iVZV3#..4FC199007-199406

sub35792-20020

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010iCV30,SV3#,VZV3#..4FC199007-199406

35795RACE, 1 WAY CLUTCH OUTER

main35795-32010iCV30,SV3#,VZV3#..4FC199007-199406

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011iCV30,SV3#,VZV3#..4FC199007-199406

25 parts on this diagram · 2 diagrams in section
