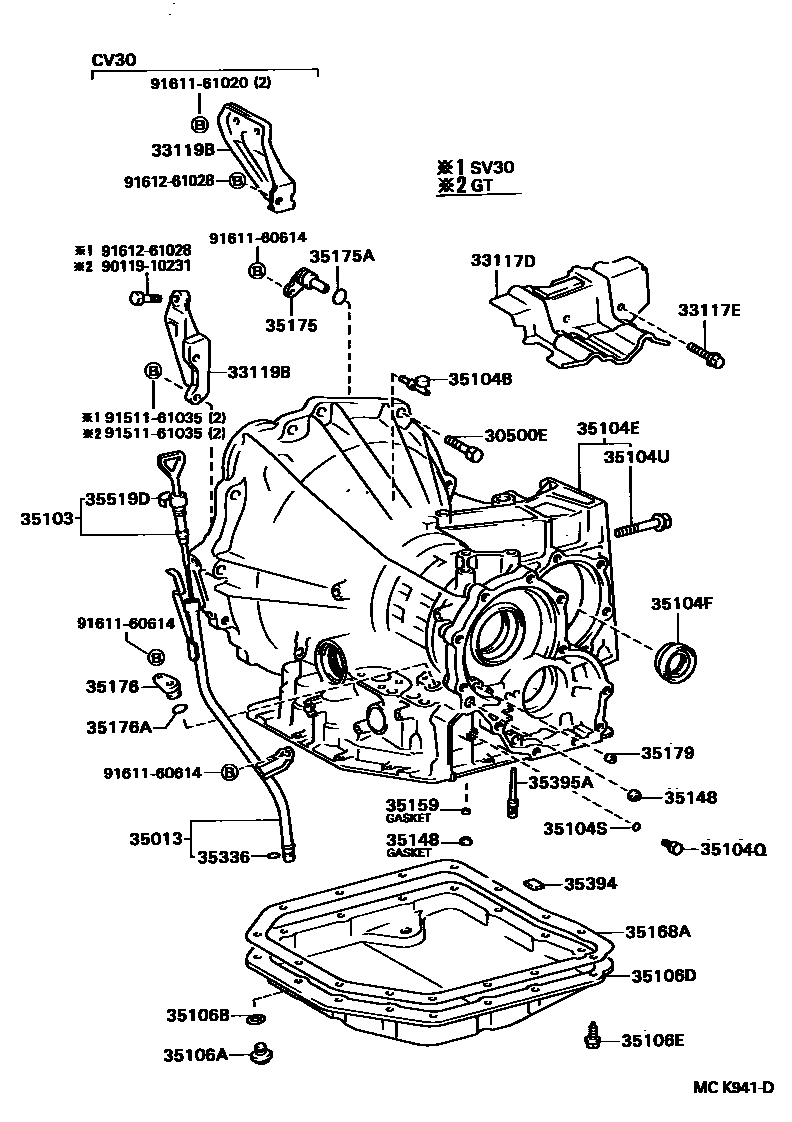

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A140E,A140L 0002 1A540H 0003 1A540E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCV30,SV3#,VZV3#..4FC¥180199007-199406

sub91641-H0820¥90

main90105-10077iVZV3#..4FC¥260199007-199406

main90119-12250iVZV30,31..4FC¥210199105-199406

main91619-61245iCV30,SV3#,VZV3#..4FC¥120199007-199406

main91619-61260iVZV3#..4FC¥130199007-199105

main91619-61265iVZV30,31..4FC¥230199105-199406

main91651-41022iCV30,SV30..4FC¥160199007-199406

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-32040iVZV3#..4FC¥2,230199007-199406

main33117-32050iSV35..4FC¥2,230199007-199406

main33117-32060iCV30,SV30,32,33..4FC¥1,360199007-199406

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iCV30,SV3#,VZV3#..4FC¥180199007-199406

sub91641-H0820¥90

33119BPLATE, STIFFENER, LH(ATM)

main33119-20110iSV32,33..4FC..GT¥4,570199007-199206

main33119-32010iCV30..4FC¥1,190199007-199406

main33119-32020iSV30,35..4FC¥3,090199007-199406

main33119-32040iVZV3#..4FC¥3,190199007-199406

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-32130iSV35..4FC¥3,090199007-199406

main35013-32140iSV30,32,33..4FC¥3,300199007-199406

main35013-32150iCV30..4FC¥3,300199007-199406

main35013-32160iVZV3#..4FC¥3,060199007-199406

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-32100iSV35..4FC¥1,410199007-199406

main35103-32110iSV30,32,33..4FC¥1,410199007-199406

main35103-32120iCV30..4FC¥1,410199007-199406

main35103-32130iVZV3#..4FC¥1,420199007-199105

main35103-32140iVZV3#..4FC¥1,410199105-199406

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iSV35..4FC¥310199007-199406

main90930-03089iCV30,SV30,32,33..4FC¥370199007-199406

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20073iSV30..4FC¥92,800199007-199206

sub35104-32101¥92,100

main35104-32053iCV30..4FC¥92,800199007-199206

sub35104-32111¥92,100

main35104-32061iSV35..4FC¥92,800199007-199012

main35104-32062iSV35..4FC¥92,100199012-199203

sub35104-32063¥92,100

main35104-32063iSV35..4FC¥92,100199203-199309

sub35104-32064¥92,100

main35104-32064iSV35..4FC¥92,100199309-199406

sub35104-32065¥92,100

sub35299-32010¥140

sub91611-60618¥120

main35104-32092iVZV3#..4FC¥92,800199007-199012

sub35104-32096¥92,800

sub35424-32021¥1,670

sub90301-30005¥250

sub90501-29029¥340

main35104-32094iVZV3#..4FC¥92,800199012-199106

sub35104-32095¥92,800

main35104-32101iSV32,33..4FC¥92,100199106-199212

sub35104-32102¥92,400

sub90105-10203¥240

sub91642-H0822¥190

main35104-32102iSV30,32,33..4FC¥92,400199212-199406

main35104-32111iCV30..4FC¥92,100199206-199212

sub35104-32112¥92,400

sub90105-10203¥240

sub91642-H0822¥190

main35104-32112iCV30..4FC¥92,400199212-199406

main35104-33010iVZV3#..4FC¥92,100199106-199203

sub35104-33011¥92,100

main35104-33011iVZV3#..4FC¥92,100199203-199309

sub35104-33012¥92,400

main35104-33012iVZV3#¥92,400199309-199406

sub35104-33013¥92,500

sub90105-10051¥210

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-35019iCV30,SV30,32,33..4FC¥400199007-199406

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iCV30,SV30,32,33..4FC¥120199007-199406

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iCV30,SV30,32,33..4FC¥170199007-199406

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iSV35,VZV3#..4FC¥260199007-199406

main90105-10223iSV35,VZV3#..4FC¥260199007-199406

main90105-10224iSV35,VZV3#..4FC¥310199007-199406

main90105-12052iCV30,SV30,32,33..4FC¥370199007-199406

sub90105-12263¥310

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iCV30,SV3#,VZV3#..4FC¥190199007-199406

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iCV30,SV3#,VZV3#..4FC¥110199007-199406

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iCV30,SV30,32..4FC;SV33..SED..4FC..GT;SV33..4FC..(ETO,LUM,VE,VX,ZX)¥8,100199007-199406

main35106-32012iCV30,SV30,32,33..4FC¥5,500199007-199406

main35106-32031iSV35..4FC¥8,700199007-199102

sub35106-32032¥8,600

main35106-32032iVZV3#..4FC¥8,600199008-199406

main35106-32032iSV35..4FC¥8,600199102-199406

main35106-32040iVZV3#..4FC¥6,100199007-199102

sub35106-32041¥6,200

main35106-32041iVZV3#..4FC¥6,200199102-199406

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iCV30,SV30,32,33..4FC¥80199007-199406

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iVZV3#¥740199007-199406

35159GASKET, BRAKE DRUM

main35159-32011iCV30,SV3#,VZV3#..4FC¥840199007-199406

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32010iCV30,SV30,32,33..4FC¥790199007-199406

main35168-32020iSV35,VZV3#..4FC¥850199007-199406

sub35168-33020¥850

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iCV30,SV3#,VZV3#..4FC¥1,070199007-199406

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iCV30,SV3#,VZV3#..4FC¥270199007-199406

35176CAP, WIRE HARNESS

main35176-32010iCV30,SV30..4FC¥1,070199007-199406

35176ARING, O (FOR WIRE HARNESS CAP)

main96721-24013iCV30,SV30..4FC¥160199007-199406

35179GASKET, OVERDRIVE BRAKE

main35179-32010iCV30,SV3#,VZV3#..4FC¥680199007-199406

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCV30,SV3#,VZV3#..4FC¥140199007-199406

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCV30,SV3#,VZV3#..4FC¥360199007-199406

35395ASTRAINER, GOVERNOR OIL

main35395-32020iCV30,SV30..4FC¥380199007-199404

sub35395-32030¥380

main35395-32030iCV30,SV30..4FC¥380199404-199406

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32030iCV30,SV30,32,33,VZV3#..4FC¥190199007-199406

sub35519-32040¥510

9011910231

main90119-10231¥520

9151161035

main91511-61035¥230

9161160614

main91611-60614¥180

9161161020

main91611-61020¥240

9161261028

main91612-61028¥170

33 parts on this diagram · 3 diagrams in section
