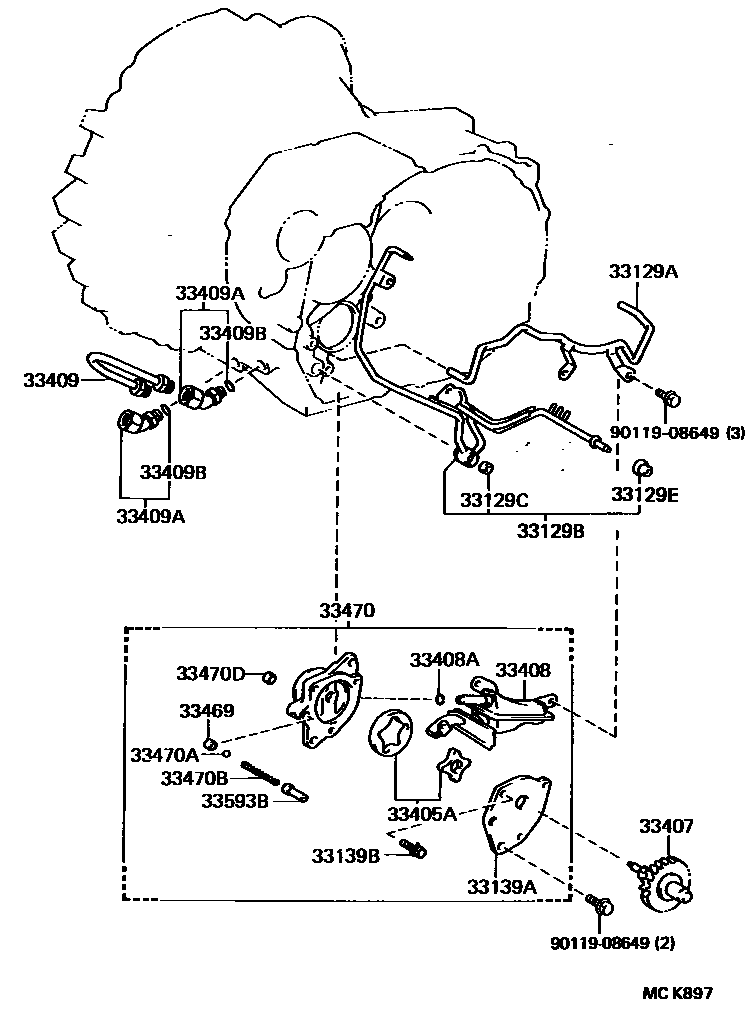

OIL PUMP, OIL COOLER & PIPE (MTM)

33129APIPE, MANUAL TRANSMISSION OIL, NO.1

main33129-12030iSV35,VZV30,31..5F199007-199406

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-12030iSV35..5F199007-199103

sub33106-12040

main33106-12040iSV35..5F199105-199406

main33106-20040iVZV3#..5F199007-199105

sub33106-33010

main33106-33010iVZV30,31..5F199105-199206

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004iSV35,VZV30,31..5F199007-199406

33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)

main90389-05012iSV35,VZV30,31..5F199007-199406

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20010iSV35,VZV30,31..5F199007-199406

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199iSV35,VZV30,31..5F199007-199406

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20020iSV35,VZV30,31..5F199007-199406

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-12021iSV35..5F199007-199406

main33407-20011iVZV30,31..5F199007-199206

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20010iSV35,VZV30,31..5F199007-199406

sub33408-20011

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012iSV35,VZV30,31..5F199007-199406

33409TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER

main33409-17010iSV35,VZV30,31..5F199007-199406

33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)

main90407-16017iSV35,VZV30,31..5F199007-199406

33409BRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)

main90301-11006iSV35,VZV30,31..5F199007-199406

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-20010iSV35,VZV30,31..5F199007-199406

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-12010iSV35,VZV30,31..5F199007-199406

sub33470-12011

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-10003iSV35,VZV30,31..5F199007-199406

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-08092iSV35,VZV30,31..5F199007-199406

33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)

main90430-09004iSV35,VZV30,31..5F199007-199406

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20010iSV35,VZV30,31..5F199007-199406

9011908649

main90119-08649

20 parts on this diagram · 1 diagram in section
