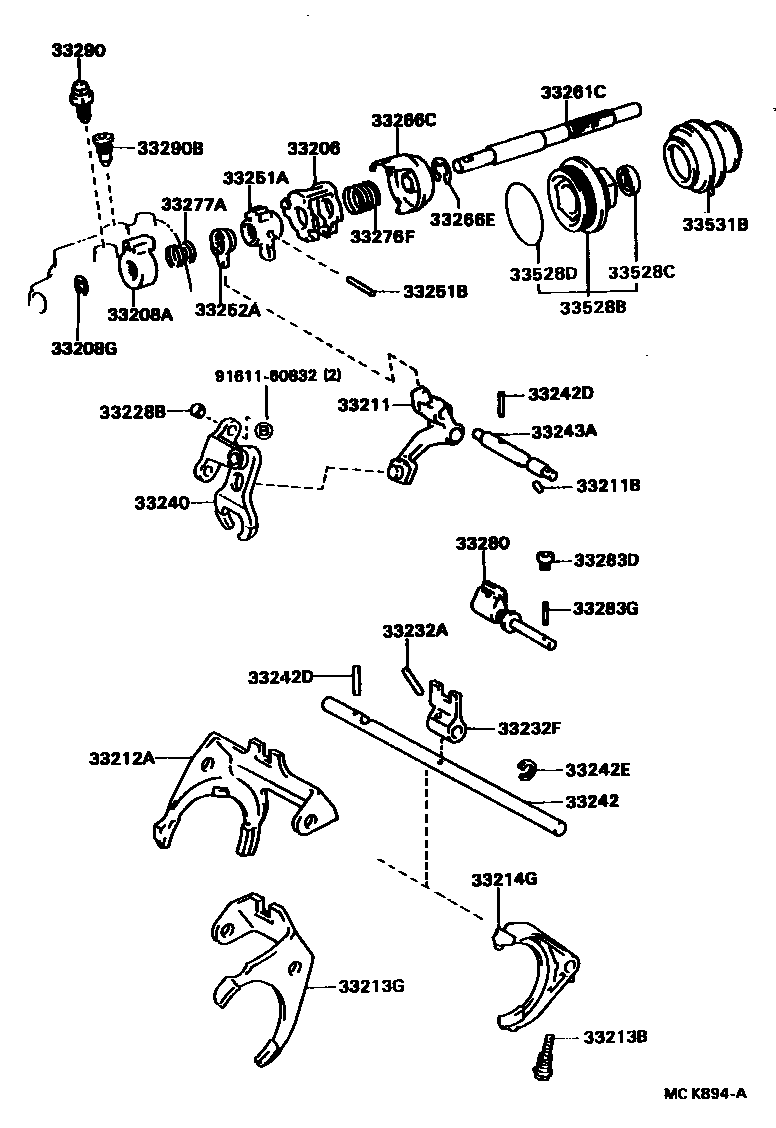

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
33208APIN SUB-ASSY, REVERSE RESTRICT
33208GRING, E(FOR REVERSE RESTRICT PIN)
33211BROLLER(FOR REVERSE SHIFT FORK)
33213BBOLT(FOR SHIFT FORK SET)
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
33252ALEVER, SHIFT, INNER NO.2
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BBALL ASSY, LOCK, NO.2
33528DRING, O (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
37 parts on this diagram · 5 diagrams in section
