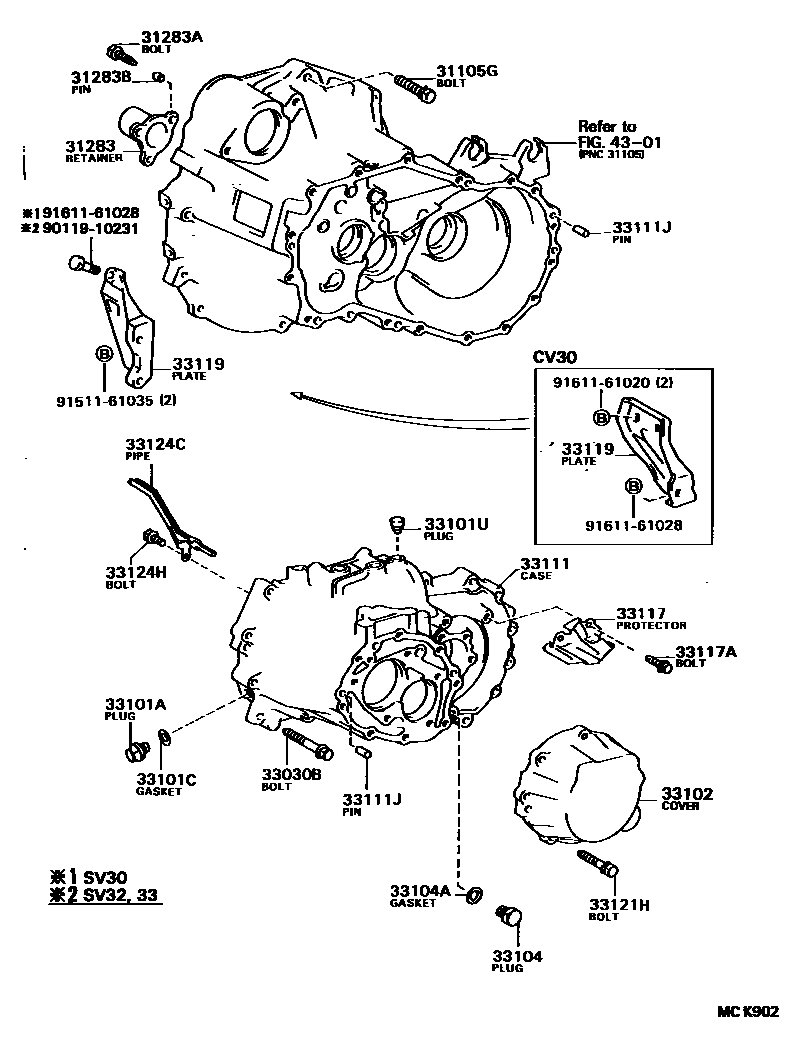

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1S51,S53,S55 0002 1E53 0003 1E56F2

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iSV32,33..5F..GT;CV30,SV30,35,VZV30,31..5F199007-199406

sub91641-H0820

main90105-10077iCV30,SV3#..5F199007-199406

main90105-12038iVZV30,31..5F199007-199206

main90119-12168iCV30,SV3#..5F199007-199406

main91611-61045iVZV30,31..5F199007-199206

sub91612-61045

main91619-61260iVZV30,31..5F199007-199206

main91651-41022iSV30,35..5F199007-199406

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iCV30,SV30,32,33..5F199007-199406

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iCV30,SV30,32,33..5F199007-199406

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iCV30,SV30,32,33..5F199007-199406

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCV30,SV30,32,33..5F199007-199406

sub90105-08430

main90105-08126iSV35,VZV30,31..5F199007-199406

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iCV30,SV30,32,33..5F199306-199406

main90341-18033iCV30,SV3#,VZV30,31..5F199007-199406

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCV30,SV3#,VZV30,31..5F199007-199406

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iCV30,SV30,32,33..5F199007-199106

main90930-03111iSV35,VZV30,31..5F199007-199406

sub90930-03148

main90930-03133iCV30,SV30,32,33..5F199106-199406

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12030iSV35..5F199007-199103

sub33102-12040

main33102-12040iSV35..5F199105-199205

sub33102-12041

sub33124-12041

main33102-12041iSV35..5F199205-199406

sub33102-12042

main33102-20040iVZV3#..5F199007-199105

sub33102-33010

main33102-32012iCV30,SV30,32,33..5F199007-199206

main33102-33010iVZV30,31..5F199105-199206

sub33102-33011

main33102-33020iCV30,SV30,32,33..5F199206-199406

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCV30,SV3#,VZV30,31..5F199007-199406

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCV30,SV3#,VZV30,31..5F199007-199406

33111CASE, MANUAL TRANSMISSION

main33101-12170iSV35..5F199201-199406

sub33101-12171

main33101-20040iVZV3#..5F199007-199105

sub33101-33010

main33101-20050iVZV30,31..5F199201-199206

sub33101-20051

sub90384-15002

main33101-32011iSV35..5F199007-199201

sub33101-12170

sub33261-12070

sub90364-15003

main33101-33010iVZV30,31..5F199105-199201

sub33101-20050

sub33261-12070

sub90364-15003

main33111-20141iCV30,SV30,32,33..5F199007-199102

sub33111-33020

main33111-33020iCV30,SV30,32,33..5F199102-199206

sub33111-33030

sub33124-32020

sub33214-33020

sub33261-33010

sub90384-14005

sub90384-15002

main33111-33030iCV30,SV30,32,33..5F199206-199406

sub33111-33040

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCV30,SV30,32,33,VZV30,31..5F199007-199406

main90250-12005iVZV30,31..5F199007-199206

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iSV35,VZV30,31..5F199007-199406

main33117-32011iCV30,SV30,32,33..5F199007-199406

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iCV30,SV3#,VZV30,31..5F199007-199406

sub91641-H0820

33119PLATE, STIFFENER, LH(MTM)

main33119-20090iSV35..5F199007-199406

main33119-20110iSV32,33..5F..GT199007-199206

main33119-32010iCV30..5F199007-199406

main33119-32020iSV30..5F199007-199406

main33119-32040iVZV30,31..5F199007-199206

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iCV30,SV30,32,33..5F199007-199011

sub90105-08273

main90105-08273iVZV30,31..5F199011-199406

main90119-08630iSV35..5F199007-199406

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12030iSV35..5F199007-199406

main33124-20020iVZV30,31..5F199007-199206

main33124-32012iCV30,SV30,32,33..5F199007-199206

main33124-33010iCV30,SV30,32,33..5F199206-199406

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iSV35,VZV30,31..5F199007-199406

sub90119-08830

main91651-60618iCV30,SV30,32,33..5F199007-199406

4301

9011910231

main90119-10231

9151161035

main91511-61035

9161161020

main91611-61020

9161161028

main91611-61028

24 parts on this diagram · 3 diagrams in section
