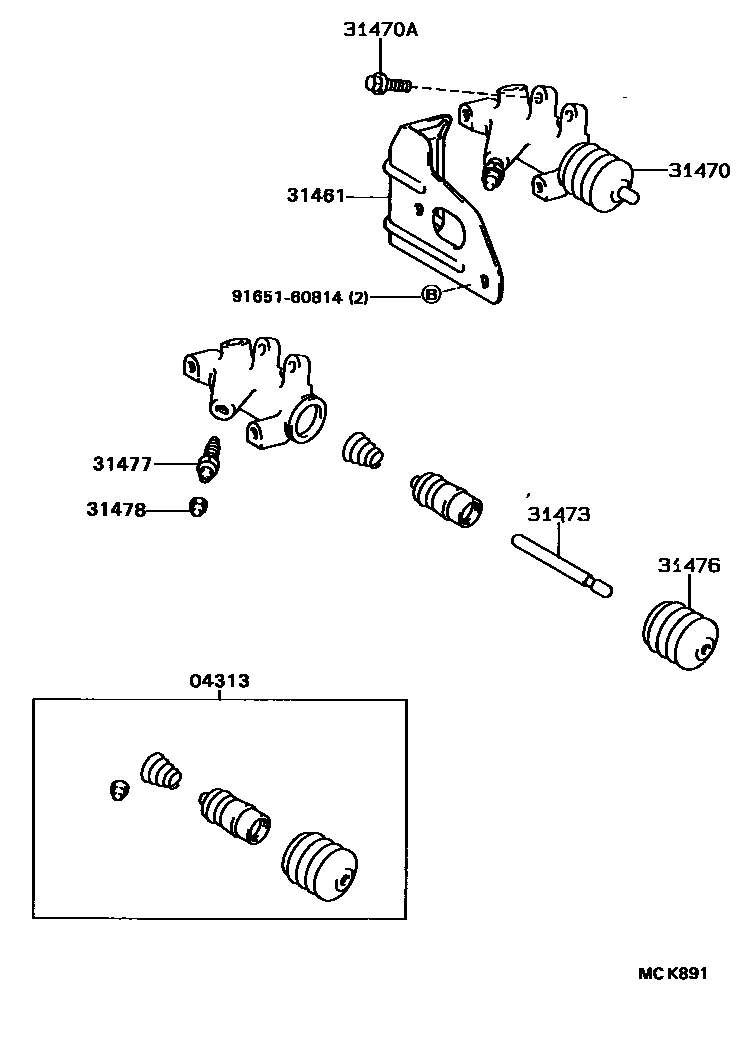

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iCV30,SV3#,VZV30,31..5F199007-199401

main04313-17010iCV30,SV3#..5F199401-199406

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-20010iSV32,33..5F..GT199007-199206

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20200iSV32,33..5F..GT199007-199206

main31470-32022iCV30..5F199007-199406

sub31470-32023

main31470-32032iSV3#,VZV30,31..5F..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX)199007-199406

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iSV35,VZV30,31..5F199007-199406

main91611-60825iCV30,SV30,32,33..5F199007-199406

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCV30,SV3#..5F199401-199406

main31473-32010iCV30,SV3#,VZV30,31..5F199007-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCV30,SV3#,VZV30,31..5F199007-199406

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCV30,SV3#,VZV30,31..5F199007-199406

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCV30,SV3#,VZV30,31..5F199007-199406

9165160814

main91651-60814

9 parts on this diagram · 1 diagram in section
