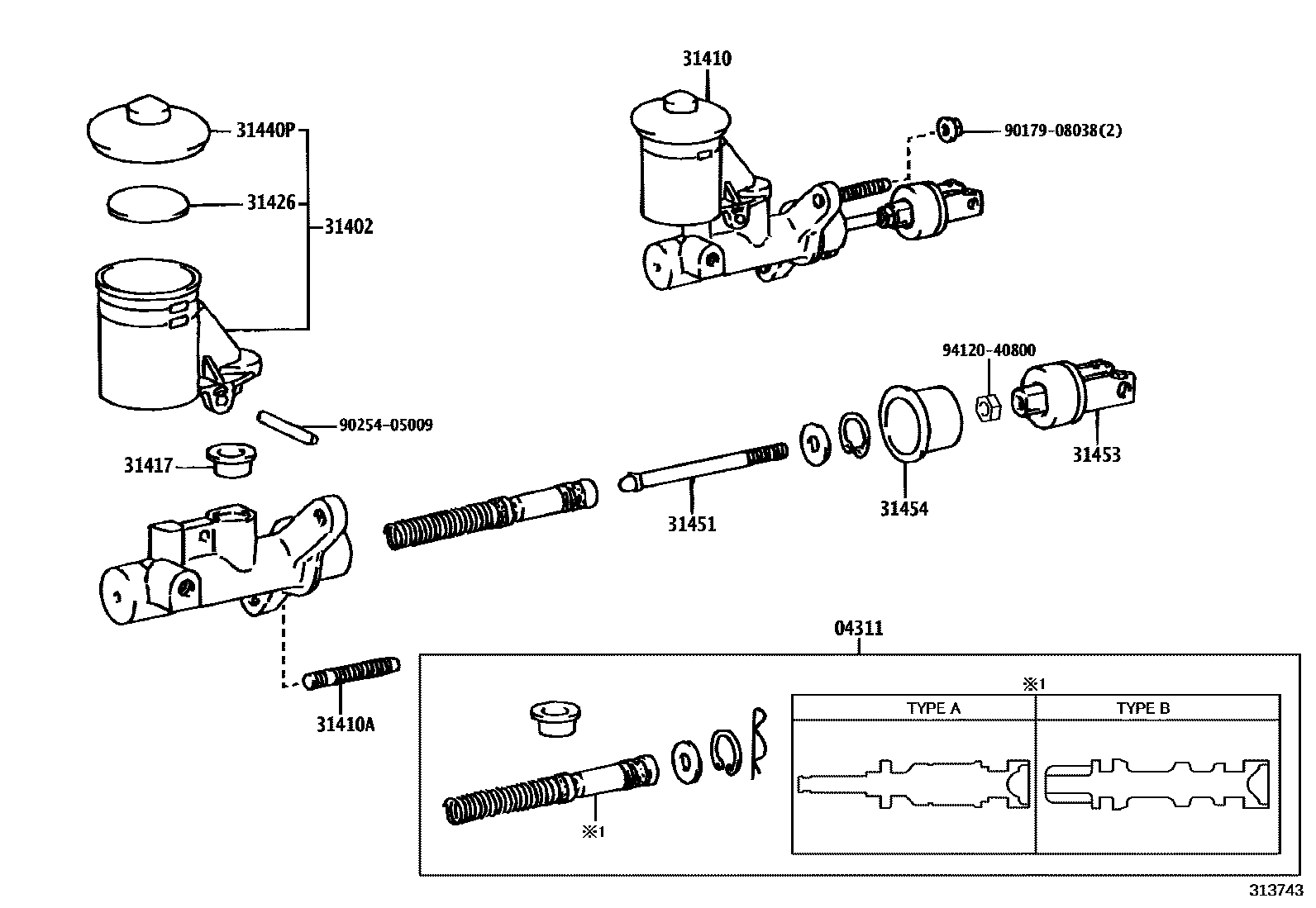

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iCV30,SV3#,VZV30,31..5F199007-199205

sub04311-12080

main04311-12080iCV30,SV3#,VZV30,31..5F199205-199403

main04311-12110iCV30,SV3#..5F199403-199406

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-32010iCV30,VZV30,31..5F199007-199406

main31402-32020iSV30,32,33..5F199007-199406

sub31402-32010

main31402-32030iSV35..5F199007-199406

sub31402-32010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32112iSV30,32,33..5F199007-199406

sub31410-32121

main31410-32121iSV35..5F199007-199406

sub31410-32122

main31410-32131iCV30,VZV30,31..5F199007-199406

sub31410-32132

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357iCV30,SV3#,VZV30,31..5F199007-199406

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iCV30,SV3#,VZV30,31..5F199007-199406

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCV30,SV3#,VZV30,31..5F199007-199406

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCV30,SV3#,VZV30,31..5F199007-199406

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-32060iSV30,32,33..5F199007-199406

sub31451-35070

main31451-35080iCV30,SV35,VZV30,31..5F199007-199406

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-32010iCV30,SV35,VZV30,31..5F199007-199111

sub31404-28020

main31404-32020iCV30,SV35,VZV30,31..5F199111-199406

main31453-35010iSV30,32,33..5F199007-199406

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iCV30,SV3#..5F199303-199406

main31454-24010iCV30,SV3#,VZV30,31..5F199007-199303

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 3 diagrams in section
