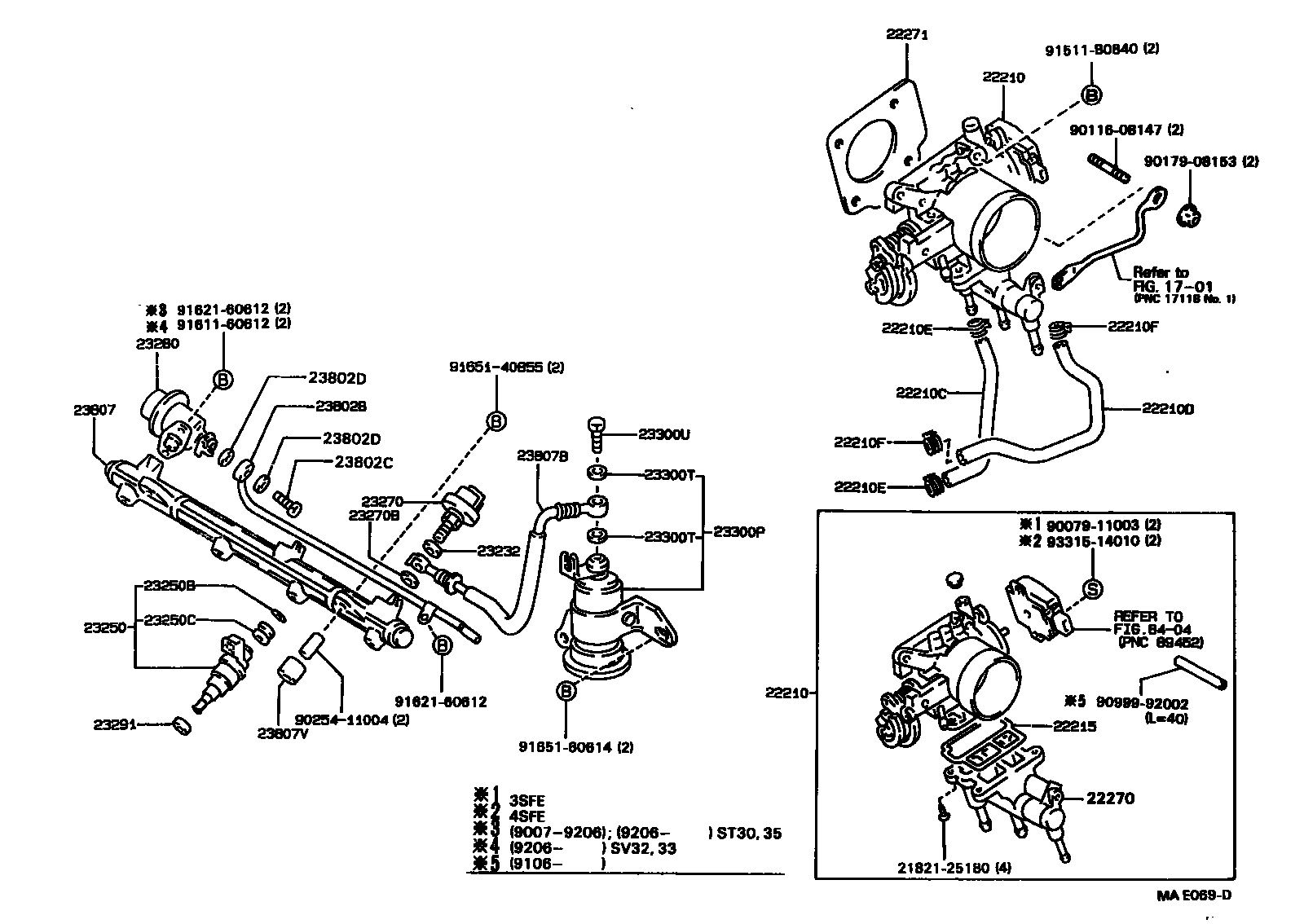

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

22210BODY ASSY, THROTTLE

main22210-62070i1VZFE..VZV3#199007-199105

sub22210-62071

main22210-62071i1VZFE..VZV30,31199105-199206

main22210-62110i4VZFE..VZV32,33199105-199406

main22210-74341i4SFE..SV30..5F199007-199105

main22210-74380i3SGE..SV32,33..5F199007-199105

sub22210-74730

main22210-74390i3SGE..SV32,33..4FC199007-199105

sub22210-74680

main22210-74501i4SFE..SV30..4FC199007-199105

main22210-74540i3SFE..SV32,33,35..5F199007-199105

main22210-74550i3SFE..SV32,33,35..4FC199007-199105

main22210-74680i3SGE..SV32,33..4FC199105-199206

main22210-74690i4SFE..SV30..5F199105-199206

main22210-74700i4SFE..SV30..4FC199105-199206

main22210-74710i3SFE..SV32,33,35..5F199105-199206

main22210-74720i3SFE..SV32,33,35..4FC199105-199206

main22210-74730i3SGE..SV32,33..5F199105-199206

main22210-74800i4SFE..SV30..5F199206-199406

main22210-74820i3SFE..SV32,33,35..5F199206-199406

sub22210-7A100

main22210-74830i3SFE..SV33,35..4FC199206-199406

sub22210-7A110

main22210-74890i4SFE..SV30..4FC199206-199406

main22210-7A100i3SFE..SV32..5F199309-199406

main22210-7A110i3SFE..SV32..4FC199309-199406

22210CHOSE, WATER BY-PASS, NO.1

main16264-88361i3SGE..SV32,33199007-199206

main16283-74010i3SFE,4SFE..SV3#199007-199406

22210DHOSE, WATER BY-PASS, NO.2

main16267-88361i3SGE..SV32,33199007-199206

main16282-74050i3SFE,4SFE..SV3#199007-199404

main16282-74080i3SFE,4SFE..SV3#199404-199406

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13050i3S#,4SFE..SV3#199007-199406

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13050i3S#,4SFE..SV3#199007-199406

sub96135-51300

22215GASKET, THROTTLE BODY COVER

main22215-74380i3SGE..SV32,33199007-199206

main22215-74400i3SFE,4SFE..SV3#199007-199406

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-62010i1VZFE..VZV30,31199007-199206

main22270-62030i4VZFE..VZV32,33199105-199406

main22270-74040i3SFE..SV33,35..4FC199007-199406

sub22270-74250

main22270-74050i3SFE..SV32,33,35..5F199007-199406

sub22270-74240

main22270-74060i3SGE..SV32,33..5F199007-199206

main22270-74070i3SGE..SV32,33..4FC199007-199206

main22270-74110i4SFE..SV30..5F199007-199206

main22270-74120i4SFE..SV30..4FC199007-199206

main22270-74140i4SFE..SV30..5F199206-199406

main22270-74150i4SFE..SV30..4FC199206-199406

main22270-74240i3SFE..SV32..5F199309-199406

main22270-74250i3SFE..SV32..4FC199309-199406

22271GASKET, THROTTLE BODY

main22271-62020i1VZFE..VZV30,31199007-199106

sub22271-62030

main22271-62030i1VZFE,4VZFE..VZV3#199105-199406

main22271-74021i3SFE,4SFE..SV3#199007-199309

sub22271-74022

main22271-74022i3SFE,4SFE..SV3#199309-199406

main22271-74050i3SGE..SV32,33199007-199206

23232GASKET(FOR FUEL PUMP HOSE)

main23232-28010i1VZFE..VZV3#199007-199106

sub23232-41081

main23232-41081i3SFE,4SFE..SV3#199010-199406

23250INJECTOR ASSY, FUEL

main23209-11070i4VZFE..VZV32,33199105-199406

main23209-62020i1VZFE..VZV30,31199007-199206

main23209-74040i3SFE..SV32,33,35199007-199406

main23209-74080i3SGE..SV32,33199007-199206

main23209-74110i4SFE..SV30199007-199206

main23209-74130i4SFE..SV30199206-199406

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3S#,4SFE..SV3#199007-199406

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3S#,4SFE..SV3#199007-199406

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i3SFE,4SFE..SV3#199307-199406

sub23207-20011

main23207-74010i3SFE,4SFE..SV3#199007-199307

sub23207-46010

main23270-62010i1VZFE,4VZFE..VZV3#199007-199406

sub23270-62011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i3SFE,4SFE..SV3#199007-199010

sub23232-41081

main23232-41081i3SFE,4SFE..SV3#199010-199406

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62020i1VZFE,4VZFE..VZV3#199007-199406

main23280-74050i3SGE..SV32,33199007-199206

main23280-74100i3SFE,4SFE..SV3#199007-199404

main23280-74150i3SFE,4SFE..SV3#199308-199404

sub23280-74100

main23280-74151i3SFE,4SFE..SV3#199404-199406

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1VZFE,4VZFE..VZV3#199007-199406

23300PFILTER, FUEL(FOR EFI)

main23300-79295i1VZFE,4VZFE..VZV3#199007-199406

23300TGASKET(FOR FUEL FILTER)

main90430-12005i3S#,4SFE..SV3#199007-199108

main90430-12026i1VZFE,4VZFE..VZV3#199108-199406

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1VZFE,4VZFE..VZV3#199007-199406

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-74021i3SFE,4SFE..SV3#199007-199106

sub23802-74022

main23802-74022i3SFE,4SFE..SV3#199106-199210

sub23802-74023

main23802-74023i3SFE,4SFE..SV3#199210-199406

main23802-88362i3SGE..SV32,33199007-199206

main23812-62010i1VZFE..VZV30,31199007-199206

main23812-62020i4VZFE..VZV32,33199105-199406

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3SFE,4SFE..SV3#199007-199406

main90401-12015i1VZFE,4VZFE..VZV3#199007-199406

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08009i3SFE,4SFE..SV3#199007-199010

sub90430-08014

main90430-08014i3SFE,4SFE..SV3#199010-199406

main90430-12005i1VZFE..VZV30,31199007-199106

main90430-12026i4VZFE..VZV32,33199105-199406

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-74040i3SFE,4SFE..SV3#199007-199406

sub23807-74060

main23807-74050i3SGE..SV32,33199007-199206

main23814-62021i1VZFE..VZV30,31199007-199206

main23814-62030i4VZFE..VZV32,33199105-199406

23807BHOSE, FUEL DELIVERY PIPE

main23271-74291i3SFE,4SFE..SV3#199007-199406

main90923-01382i3SGE..SV32,33199007-199206

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i3SFE,4SFE..SV3#199007-199406

main90561-08020i1VZFE,4VZFE..VZV3#199007-199406

main90561-08024i3SGE..SV32,33199007-199206

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911003

main90079-11003

9011608147

main90116-08147

9017908153

main90179-08153

9025411004

main90254-11004

9099992002

main90999-92002

91511B0840

main91511-B0840

9161160612

main91611-60612

9162160612

main91621-60612

9165140855

main91651-40855

9165160614

main91651-60614

9331514010

main93315-14010

39 parts on this diagram · 6 diagrams in section
