ALTERNATOR

0001 112V 60A 0002 112V 80A 0003 112V 70A 0004 112V 80A(3SFE,4SFE),12V 90A(3S0006 112V 70A 0007 112V 80A

27020ALTERNATOR ASSY

main27020-64210i2CT..CV30199007-199101

main27020-64211i2CT..CV30199101-199206

main27060-62050i1VZFE,4VZFE..VZV3#199007-199206

main27060-62080i4VZFE..VZV3#199206-199406

main27060-62090i4VZFE..VZV3#199206-199406

main27060-64100i2CT..CV30199206-199406

main27060-74210i3SFE,4SFE..SV3#..5F199007-199206

main27060-74220i3SFE,4SFE..SV3#..4FC199007-199202

sub27060-74221

main27060-74221i3SFE,4SFE..SV3#..4FC199202-199206

main27060-74240i3SGE..SV32,33199007-199202

sub27060-74241

main27060-74241i3SGE..SV32,33199202-199206

main27060-74360i3SFE,4SFE..SV3#..4FC199206-199406

sub27060-74750

main27060-74360i4SFE..SV30..5F199206-199406

sub27060-74750

main27060-74370i3SFE,4SFE..SV3#..5F199206-199406

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-64170i2CT..CV30199007-199206

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i2CT..CV30;3SFE,4SFE..SV3#..4FC199206-199406

main27312-42010i3SGE..SV32,33;3SFE,4SFE..SV3#..4FC199007-199206

main27312-57060i2CT..CV30199007-199206

main27312-70200i1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199007-199406

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-42050i3SFE,4SFE..SV3#..4FC199007-199206

sub27310-74480

main27310-62050i1VZFE,4VZFE..VZV3#199007-199206

main27310-62080i4VZFE..VZV3#199206-199406

main27310-62090i4VZFE..VZV3#199206-199406

main27310-64060i2CT..CV30199007-199206

main27310-64430i2CT..CV30199206-199406

main27310-70100i3SFE,4SFE..SV3#..5F199007-199406

main27310-74120i3SFE,4SFE..SV3#..4FC199206-199406

main27310-74210i3SGE..SV32,33199007-199206

sub27310-74120

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27333-57060i2CT..CV30199007-199206

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2CT..CV30199007-199206

main90099-10160i3SFE,4SFE..SV3#..4FC199007-199206

sub90099-10219

main90099-10178i1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199007-199406

main90099-10192i2CT..CV30;3SFE,4SFE..SV3#..4FC199206-199406

main90099-10192i3SGE..SV32,33199007-199206

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02209i2CT..CV30199007-199206

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-57060i2CT..CV30199007-199206

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-57060i2CT..CV30199007-199206

27330ROTOR ASSY, ALTERNATOR

main27330-42010i3SGE..SV32,33;3SFE,4SFE..SV3#..4FC199007-199012

sub27330-76030

main27330-64170i2CT..CV30199007-199101

main27330-64171i2CT..CV30199101-199206

sub27330-54270

main27330-72101i1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199007-199406

main27330-76030i3SGE..SV32,33;3SFE,4SFE..SV3#..4FC199012-199206

sub27330-16390

main27330-76030i2CT..CV30;3SFE,4SFE..SV3#..4FC199206-199406

sub27330-16390

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103i2CT..CV30199007-199206

27350FRAME ASSY, RECTIFIER END

main27350-64060i2CT..CV30199007-199206

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-64060i2CT..CV30199007-199206

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-64180i2CT..CV30199007-199206

27371BRUSH, ALTERNATOR

main27371-56070i2CT..CV30199007-199206

sub27371-54412

main27371-63020i1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199007-199206

sub27371-70300

main27371-70300i4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199206-199406

27372SPRING, ALTERNATOR BRUSH

main27372-56070i2CT..CV30199007-199206

main27372-63020i4VZFE..VZV3#;3SFE,4SFE..SV3#..5F199206-199406

sub27372-87501

main27372-72100i1VZFE..VZV3#;3SFE,4SFE..SV3#..5F199007-199206

sub27372-63020

27373HOLDER, ALTERNATOR BRUSH, A

main27373-64170i2CT..CV30199007-199206

27387INSULATOR, TERMINAL

main27387-42020i4VZFE..VZV3#;4SFE..SV30..5F199206-199406

main27387-54010i2CT..CV30199007-199206

main27387-70170i1VZFE,4VZFE..VZV3#199007-199406

main27387-74130i3SFE,4SFE..SV3#..5F199007-199206

main27387-74140i3SGE..SV32,33;3SFE,4SFE..SV3#..4FC199007-199206

27388COVER, ALTERNATOR BRUSH

main27388-42010i2CT..CV30;3SFE,4SFE..SV3#..4FC199206-199406

main27388-42010i3SGE..SV32,33;3SFE,4SFE..SV3#..4FC199007-199206

main27388-64170i2CT..CV30199007-199206

27410STATOR ASSY, ALTERNATOR

main27410-43040i2CT..CV30199007-199206

27411PULLEY, ALTERNATOR

main27411-16211i3SFE,4SFE..SV3#..5F199007-199406

main27411-42030i4SFE..SV30..5F199206-199406

main27411-42030i3SGE..SV32,33199007-199206

main27411-62050i1VZFE,4VZFE..VZV3#199007-199406

main27411-62070i4VZFE..VZV3#199206-199406

main27411-64210i2CT..CV30199007-199206

main27411-64320i2CT..CV30199206-199406

main27411-74050i3SFE,4SFE..SV3#..4FC199007-199206

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-64060i2CT..CV30199007-199206

27441FAN, ALTERNATOR

main27441-64060i2CT..CV30199007-199206

27700AREGULATOR ASSY, GENERATOR

main27700-46030i3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#199104-199206

sub27700-72090

main27700-64040i2CT..CV30199007-199206

sub27700-64110

main27700-65010i2CT..CV30199305-199406

sub27700-35040

main27700-74010i3S#,4SFE,1VZFE..SV3#,VZV3#199007-199109

sub27700-72090

main27700-74030i2CT,3SFE,4SFE,4VZFE..CV30,SV3#,VZV3#199206-199406

29342APACKING, VACUUM PUMP

main90099-14055i2CT..CV30199007-199206

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738764170INSULATOR, TERMINAL

main27387-64170

9009900893

main90099-00893

9009900937

main90099-00937

9009902208

main90099-02208

9009904948

main90099-04948

9009905118

main90099-05118

9009905119

main90099-05119

9009905185

main90099-05185

9009934013

main90099-34013

9011908376

main90119-08376

9017906158

main90179-06158

9090105004

main90901-05004

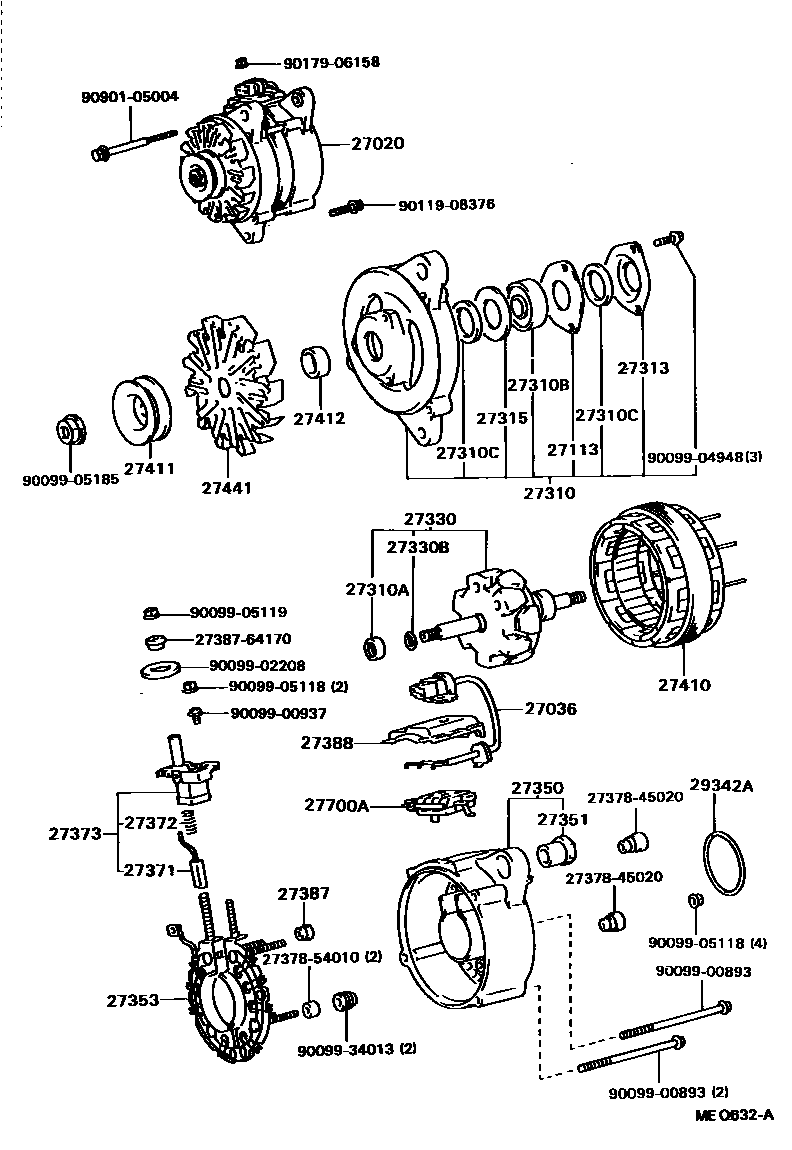

39 parts on this diagram · 6 diagrams in section
