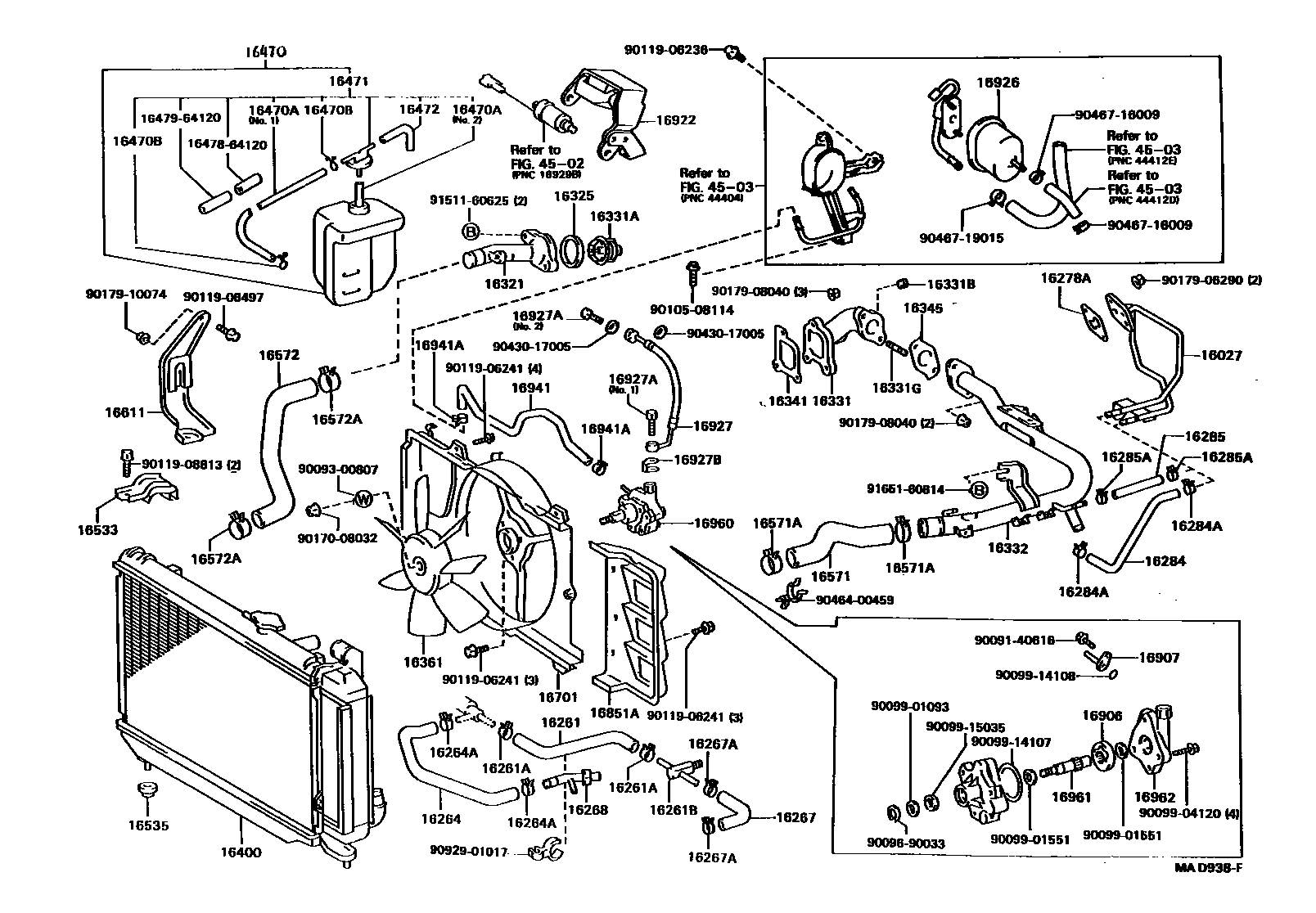

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-64030i2CT..CV30199007-199108

sub16027-64031

main16027-64031i2CT..CV30199108-199406

16261HOSE, WATER BY-PASS

main16261-62010i1VZFE..VZV30,31199007-199206

main16261-62020i4VZFE..VZV32,33199105-199406

main16261-64060i2CT..CV30199007-199406

main16261-74010i3SFE,4SFE..SV3#199007-199406

main16261-88361i3SGE..SV32,33199007-199206

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i2CT..CV30199007-199406

main90467-22003i3S#,4SFE..SV3#199007-199406

sub90467-21010

main96135-41300i1VZFE,4VZFE..VZV3#199007-199406

sub96135-51300

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i2CT..CV30199007-199406

16264HOSE, WATER BY-PASS, NO.2

main16264-62010i1VZFE..VZV30,31199007-199206

main16264-62030i4VZFE..VZV32,33199105-199406

main16264-64090i2CT..CV30199007-199406

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022i2CT..CV30199007-199406

main96135-41300i1VZFE,4VZFE..VZV3#199007-199406

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-62010i1VZFE..VZV30,31199007-199206

main16267-62030i4VZFE..VZV32,33199105-199110

sub16267-62031

main16267-62031i4VZFE..VZV32,33199110-199406

main16267-64010i2CT..CV30199007-199406

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i2CT..CV30199007-199406

sub96135-51100

main96135-41300i1VZFE,4VZFE..VZV3#199007-199406

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-62010i1VZFE..VZV3#199007-199104

sub16268-62011

main16268-62011i1VZFE..VZV30,31199104-199206

main16268-62050i4VZFE..VZV32,33199105-199406

main16268-64060i2CT..CV30199007-199106

sub16268-64061

main16268-64061i2CT..CV30199106-199406

main16268-74010i3SFE,4SFE..SV3#199007-199206

main16268-74100i3SGE..SV32,33199007-199107

sub16268-74101

main16268-74101i3SGE..SV32,33199107-199206

main16268-74151i3SFE,4SFE..SV3#199206-199308

sub16268-74152

main16268-74152i3SFE,4SFE..SV3#199308-199406

sub16268-74153

16278AGASKET, WATER BY-PASS

main16347-28010i2CT..CV30199007-199008

sub16347-42020

main16347-42020i2CT..CV30199008-199406

16284HOSE, TURBO WATER, NO.1

main16284-64040i2CT..CV30199007-199406

16284ACLIP(FOR TURBO WATER HOSE NO.1)

main90467-13128i2CT..CV30199007-199406

16285HOSE, TURBO WATER, NO.2

main99556-10150i2CT..CV30199007-199406

sub99556-10185

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90467-13128i2CT..CV30199007-199406

16321INLET, WATER

main16321-62010i1VZFE,4VZFE..VZV3#199007-199406

main16321-64050i2CT..CV30199007-199406

main16321-74030i3SFE,4SFE..SV3#199007-199406

sub16321-74050

main16321-88381i3SGE..SV32,33199007-199206

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3SGE..SV32,33199007-199406

main16325-63010i3SFE,4SFE..SV3#199007-199301

sub16325-63011

main16325-63011i3SFE,4SFE..SV3#199301-199406

16331OUTLET, WATER

main16304-74110i3SFE,4SFE..SV3#199007-199206

main16304-74120i3SGE..SV32,33199007-199107

sub16304-74121

main16304-74121i3SGE..SV32,33199107-199206

main16331-62020i1VZFE..VZV30,31199007-199206

main16331-62030i4VZFE..VZV32,33199105-199406

sub16331-62031

main16331-64030i2CT..CV30199007-199406

main16331-74170i3SFE,4SFE..SV3#199206-199406

16331ATHERMOSTAT

main90916-03046i3SFE,4SFE..SV3#199007-199406

main90916-03060i3SFE,4SFE..SV3#199106-199206

sub90916-03090

main90916-03075i1VZFE,4VZFE..VZV3#199007-199406

16331BPLUG(FOR WATER OUTLET)

main90345-53009i4SFE..SV30..4FC199007-199406

main90345-53030i2CT..CV30199007-199206

main90345-53030i2CT..CV30199206-199406

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i2CT..CV30199007-199406

16332PIPE, WATER OUTLET, NO.1

main16306-64010i2CT..CV30199007-199111

sub16306-64011

main16306-64011i2CT..CV30199111-199206

sub16306-64012

main16306-64012i2CT..CV30199206-199406

16341GASKET, WATER OUTLET

main16341-62020i1VZFE..VZV30,31199007-199106

sub16341-62030

main16341-62030i1VZFE,4VZFE..VZV3#199105-199406

main16341-63011i3SFE,4SFE..SV3#199007-199309

sub16341-74020

main16341-64020i2CT..CV30199007-199110

sub16341-64021

main16341-64021i2CT..CV30199110-199406

main16341-74020i3SFE,4SFE..SV3#199309-199406

main16341-74030i3SGE..SV32,33199007-199206

16345GASKET, WATER OUTLET PIPE

main16345-64040i2CT..CV30199007-199110

sub16345-64041

main16345-64041i2CT..CV30199110-199406

16361FAN

main16361-64020i3SFE..SV35..4FC;3SGE..SV32,33..4FC199007-199406

main16361-74050i3SFE,4SFE..SV30,32,33..5F199007-199406

main16361-74060i3SFE..SV35..5F;3SGE..SV32,33..5F;3SFE,4SFE..SV30,32,33..4FC199007-199406

main16911-64010i2CT..CV30199007-199406

16400RADIATOR ASSY

main16400-62070i1VZFE..VZV30,31..5F199007-199206

sub16400-62080

main16400-62080i1VZFE,4VZFE..VZV3#..4FC199007-199406

main16400-64610i2CT..CV30..5F199007-199406

main16400-64620i2CT..CV30..4FC199007-199406

main16400-74650i3SGE..SV32,33..5F199007-199206

sub16400-74660

main16400-74660i3SGE..SV32,33..4FC199007-199206

main16400-74670i3SFE..SV32,33,35..5F199007-199406

main16400-74680i3SFE,4SFE..SV30,32,33..4FC199007-199406

sub16400-74660

main16400-74690i3SFE..SV35..4FC199007-199406

main16400-74700i4SFE..SV30..5F199007-199406

sub16400-74670

16470TANK ASSY, RADIATOR RESERVE

main16470-62030i1VZFE,4VZFE..VZV3#199007-199406

main16470-64120i2CT..CV30199007-199101

sub16470-64121

main16470-64121i2CT..CV30199101-199206

main16470-64160i2CT..CV30199206-199406

main16470-74140i3S#,4SFE..SV3#199007-199406

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-64160i2CT..CV30199206-199406

main85338-62030i1VZFE,4VZFE..VZV3#199007-199406

main90099-33534i2CT..CV30199007-199206

main90445-12078i4VZFE..VZV3#199007-199406

main90445-12078i2CT..CV30199007-199406

main90445-12078i2CT..CV30199206-199406

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3S#,4SFE..SV3#199007-199406

16471CAP SUB-ASSY, RESERVE TANK

main16405-62020i1VZFE,4VZFE..VZV3#199007-199406

main16405-64060i2CT..CV30199007-199101

sub16405-64061

main16405-64061i2CT..CV30199101-199206

main16405-64070i2CT..CV30199206-199406

main16405-74160i3S#,4SFE..SV3#199007-199406

16472HOSE, BREATHER

main85338-70100i2CT..CV30199007-199206

main85338-74140i3SFE,4SFE..SV3#199007-199406

16533SUPPORT, RADIATOR, UPPER

main16533-62010i1VZFE,4VZFE..VZV3#199007-199406

main16533-64110i2CT..CV30199007-199406

main16533-74170i3SFE,4SFE..SV3#..5F199007-199406

16535SUPPORT, RADIATOR, LOWER

main16535-64070i2CT..CV30199007-199406

main16535-74110i3S#,4SFE..SV3#199007-199406

sub16535-74200

16571HOSE, RADIATOR, INLET

main16571-62030i1VZFE,4VZFE..VZV3#199007-199406

main16571-64150i2CT..CV30199007-199406

main16571-74160i3SFE..SV35;3SGE,4SFE..SV30,32,33199007-199406

main16571-74180i3SFE..SV32,33199007-199406

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i3SFE,4SFE..SV3#199208-199312

sub90467-34003

main90467-33003i3S#,4SFE..SV3#199007-199208

main90467-34003i2CT..CV30199312-199406

sub90467-34004

main90467-37002i1VZFE,4VZFE..VZV3#199007-199406

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-62020i1VZFE..VZV3#199007-199105

main16572-62040i1VZFE,4VZFE..VZV3#199105-199406

main16572-64190i2CT..CV30199007-199406

main16572-74150i3S#,4SFE..SV3#199007-199206

main16572-74220i3SFE,4SFE..SV3#199206-199406

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i3SFE,4SFE..SV3#199007-199312

sub90467-34003

main90467-33002i2CT..CV30199007-199206

LOWER

sub90467-34003

main90467-33002i2CT..CV30199206-199208

RADITATOR SIDE

sub90467-34003

main90467-33003i3SFE,4SFE..SV3#199007-199206

UPPER

main90467-33003i3SFE,4SFE..SV3#199007-199208

WATER INLET SIDE

main90467-34003i2CT..CV30199007-199406

sub90467-34004

main90467-37002i2CT..CV30199007-199206

INLET SIDE

sub90467-37005

main90467-37002i1VZFE..VZV3#199007-199406

WATER INLET SIDE

sub90467-37005

main90467-37002i1VZFE,4VZFE..VZV3#199105-199110

sub90467-37005

main90467-37005i1VZFE,4VZFE..VZV3#199110-199406

16611BRACKET, RADIATOR RESERVE TANK

main16611-64031i2CT..CV30199007-199206

16701SHROUD SUB-ASSY, FAN

main16711-74340i3SGE..SV32,33..4FC199007-199206

main16711-74350i3SFE,4SFE..SV30,32,33..5F199007-199406

main16711-74360i3SFE..SV35..4FC199007-199406

main16711-74370i3SFE..SV35..5F;3SFE,4SFE..SV30,32,33..4FC199007-199406

main16711-74390i3SGE..SV32,33..5F199007-199206

main16912-62010i1VZFE,4VZFE..VZV3#199007-199406

main16912-64010i2CT..CV30199007-199206

sub16912-64011

main16912-64020i2CT..CV30199206-199406

16851ACOVER, SHROUD SIDE

main16851-64010i2CT..CV30199007-199406

16906GEAR SET, HYDRAULIC

main16906-50010i1VZFE,4VZFE..VZV3#199007-199206

main16906-50010i2CT..CV30199206-199406

MRAK 1

main16906-50020i4VZFE..VZV3#199206-199406

MRAK 2

main16906-50020i1VZFE,4VZFE..VZV3#199007-199206

main16906-50030i2CT..CV30199206-199406

MRAK 3

main16906-50030i2CT..CV30199007-199206

16907PIPE SUB-ASSY, HYDRAULIC GEAR MOTOR

main16907-64010i2CT..CV30199007-199406

16922DAMPER, PUMP DINAMIC

main16922-64010i2CT..CV30199007-199103

sub16922-64011

main16922-64011i2CT..CV30199103-199406

16926FILTER, HYDRAULIC MOTER OIL

main16926-64010i2CT..CV30199007-199406

16927HOSE, HYDRAULIC MOTOR PRESSURE

main16927-62010i1VZFE..VZV30,31199007-199206

main16927-62030i4VZFE..VZV32,33199105-199406

main16927-64010i2CT..CV30199007-199406

16927ABOLT, UNION(FOR PRESSURE HOSE)

main90401-16015i2CT..CV30199007-199406

main90401-17003i2CT..CV30199007-199406

16927BGASKET(FOR PRESSURE HOSE)

main44327-12010i2CT..CV30199007-199406

main44327-30030i4VZFE..VZV3#199311-199406

16941HOSE, HYDRAULIC MOTOR RETURN, NO.1

main16941-62010i1VZFE,4VZFE..VZV3#199007-199406

main16941-64010i2CT..CV30199007-199206

main16941-64020i2CT..CV30199206-199406

16941ACLIP(FOR RETURN NO.1)

main90467-16008i2CT..CV30199303-199406

sub90467-16019

main90467-16013i2CT..CV30199007-199303

sub90467-16022

16960MOTOR ASSY, HYDRAULIC GEAR

main16960-62010i1VZFE,4VZFE..VZV3#199007-199406

main16960-64010i2CT..CV30199007-199406

16961SHAFT, HYDRAULIC GEAR MOTOR

main16961-50010i1VZFE,4VZFE..VZV3#199007-199406

16962COVER, HYDRAULIC GEAR MOTOR

main16962-62010i1VZFE,4VZFE..VZV3#199007-199406

main16962-64010i2CT..CV30199007-199406

4502

4503

1647864120

main16478-64120

1647964120

main16479-64120

9009140616

main90091-40616

9009300807

main90093-00807

9009690033

main90096-90033

9009901093

main90099-01093

9009901551

main90099-01551

9009904120

main90099-04120

9009914107

main90099-14107

9009914108

main90099-14108

9009915035

main90099-15035

9010508114

main90105-08114

9011906236

main90119-06236

9011906241

main90119-06241

9011906497

main90119-06497

9011908813

main90119-08813

9017008032

main90170-08032

9017906290

main90179-06290

9017908040

main90179-08040

9017910074

main90179-10074

9043017005

main90430-17005

9046400459

main90464-00459

9046716009

main90467-16009

9046719015

main90467-19015

9092901017

main90929-01017

9151160625

main91511-60625

9165160814

main91651-60814
