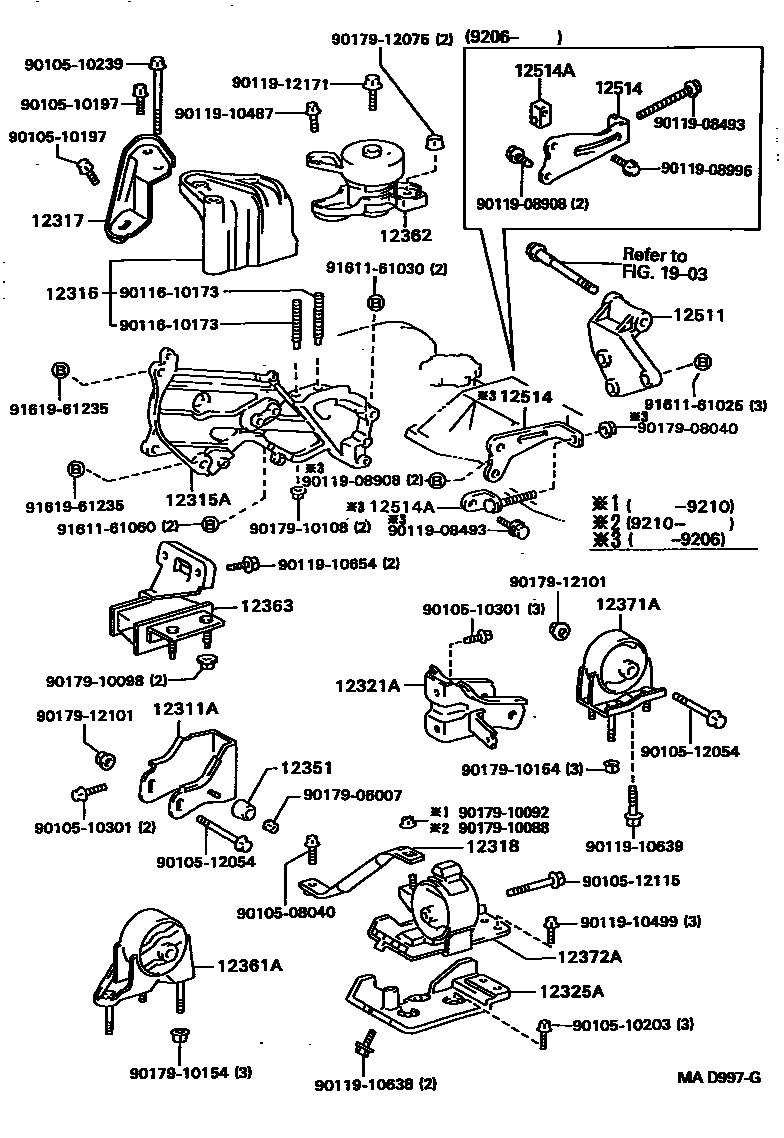

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-62010i1VZFE,4VZFE..VZV3#199007-199406

main12311-64170i2CT..CV30199206-199406

main12311-74030i3S#,4SFE..SV30,32,33199007-199406

main12311-74110i3SFE..SV35199007-199406

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-62020i1VZFE,4VZFE..VZV3#199007-199406

main12315-64050i2CT..CV30199007-199406

main12315-74060i3S#,4SFE..SV30,32,33199007-199406

sub12315-74061

main12315-74090i3SFE..SV35199007-199406

sub12315-74091

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-62010i1VZFE,4VZFE..VZV3#199007-199108

sub12316-62011

main12316-62011i1VZFE,4VZFE..VZV3#199108-199406

main12316-64010i2CT..CV30199007-199406

main12316-74020i3S#,4SFE..SV3#199007-199406

12317STAY, ENGINE MOUNTING, RH

main12317-62020i1VZFE..VZV30,31199007-199206

main12317-62040i4VZFE..VZV32,33199105-199406

main12317-64060i2CT..CV30199007-199406

main12317-74060i3SFE,4SFE..SV30,32,33199007-199406

main12317-74110i3SGE..SV32,33199007-199206

main12317-74120i3SFE..SV35199007-199406

12318STAY, ENGINE MOUNTING, LH

main12318-62011i1VZFE..VZV30,31..5F199007-199206

main12318-62030i1VZFE..VZV30,31..4FC199007-199206

main12318-62040i4VZFE..VZV32,33199105-199406

main12318-64050i2CT..CV30..4FC199007-199210

main12318-64090i3SFE,4SFE..SV30,32,33..4FC199210-199406

main12318-74060i3S#,4SFE..SV30,32,33..5F199007-199406

main12318-74070i3SFE..SV35..4FC199007-199406

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-62040i1VZFE..VZV30,31..5F199007-199206

main12321-62050i1VZFE..VZV3#..4FC199007-199105

main12321-62081i1VZFE,4VZFE..VZV3#..4FC199105-199406

main12321-64180i2CT..CV30..5F199007-199406

main12321-74210i3S#,4SFE..SV30,32,33..5F199007-199406

main12321-74220i2CT..CV30..4FC199007-199406

main12321-74230i3SFE..SV35..5F199007-199406

main12321-74240i3SFE..SV35..4FC199007-199406

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-62010i1VZFE..VZV30,31..5F199007-199206

main12325-62020i1VZFE,4VZFE..VZV3#..4FC199007-199406

main12325-64050i2CT..CV30..4FC199007-199406

main12325-74140i3S#,4SFE..SV30,32,33..5F199007-199406

main12325-74160i3SFE..SV35..5F199007-199406

main12325-74170i3SFE..SV35..4FC199007-199406

main12325-74220i4SFE..SV30..4FC199206-199406

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SGE..SV32,33..4FC199007-199406

main12351-63010i3SGE..SV32,33..4FC199007-199406

main12351-64020i2CT..CV30..5F199007-199406

main12351-64020i2CT..CV30..5F199007-199406

main12351-74020i3SFE..SV35..4FC199007-199406

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-62050i1VZFE..VZV30,31..5F199007-199206

main12361-62060i3SFE,4SFE..SV3#..4FC199007-199406

main12361-74200i2CT..CV30..5F199007-199406

main12361-74210i2CT..CV30..4FC199007-199406

main12361-74220i3SFE..SV35..5F199007-199406

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-62040i1VZFE,4VZFE..VZV3#199007-199406

main12362-74260i3SFE,4SFE..SV30,32,33199007-199406

sub12362-74261

main12362-74270i2CT..CV30199007-199406

sub12362-74271

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-64040i2CT..CV30199007-199406

main12363-74090i3SGE,4SFE..SV30,32,33..4FC199007-199406

main12363-74100i3SFE..SV32,33..4FC199007-199406

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62030i1VZFE..VZV30,31..5F199007-199406

main12371-62040i1VZFE,4VZFE..VZV3#..4FC199007-199406

main12371-64180i2CT..CV30..5F199007-199406

main12371-64190i2CT..CV30..4FC199007-199406

main12371-74280i3SFE..SV35..5F199007-199406

main12371-74290i3SFE..SV35..4FC199007-199406

sub12371-74291

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62050i1VZFE..VZV30,31..5F199007-199206

main12372-62060i1VZFE,4VZFE..VZV3#..4FC199007-199406

main12372-64160i3SFE,4SFE..SV30,32,33..4FC199007-199406

main12372-74300i2CT..CV30..5F199007-199406

main12372-74320i3SFE..SV35..5F199007-199406

main12372-74330i3SFE..SV35..4FC;3SGE..SV32,33..4FC199007-199406

main12372-74420i4SFE..SV30..4FC199206-199406

12511BRACKET, ALTERNATOR, NO.1

main12511-64020i2CT..CV30199007-199206

main12511-64060i2CT..CV30199206-199406

main12511-74020i3SFE,4SFE..SV3#199007-199201

sub12511-74051

main12511-74051i3SFE,4SFE..SV3#199201-199406

main12511-74060i3SGE..SV32,33199007-199206

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74010i3SFE,4SFE..SV3#199007-199103

sub12514-74011

main12514-74011i3SFE,4SFE..SV3#199103-199406

sub12514-74012

sub91621-60845

main16381-64020i2CT..CV30199007-199206

main16381-64080i2CT..CV30199206-199406

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i2CT..CV30199206-199406

main16385-64020i2CT..CV30199007-199206

1903

9010508040

main90105-08040

9010510197

main90105-10197

9010510203

main90105-10203

9010510239

main90105-10239

9010510301

main90105-10301

9010512054

main90105-12054

9010512115

main90105-12115

9011610173

main90116-10173

9011908493

main90119-08493

9011908908

main90119-08908

9011908996

main90119-08996

9011910487

main90119-10487

9011910499

main90119-10499

9011910638

main90119-10638

9011910639

main90119-10639

9011910654

main90119-10654

9011912171

main90119-12171

9017906007

main90179-06007

9017908040

main90179-08040

9017910088

main90179-10088

9017910092

main90179-10092

9017910098

main90179-10098

9017910108

main90179-10108

9017910154

main90179-10154

9017912075

main90179-12075

9017912101

main90179-12101

9161161025

main91611-61025

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

47 parts on this diagram · 10 diagrams in section
