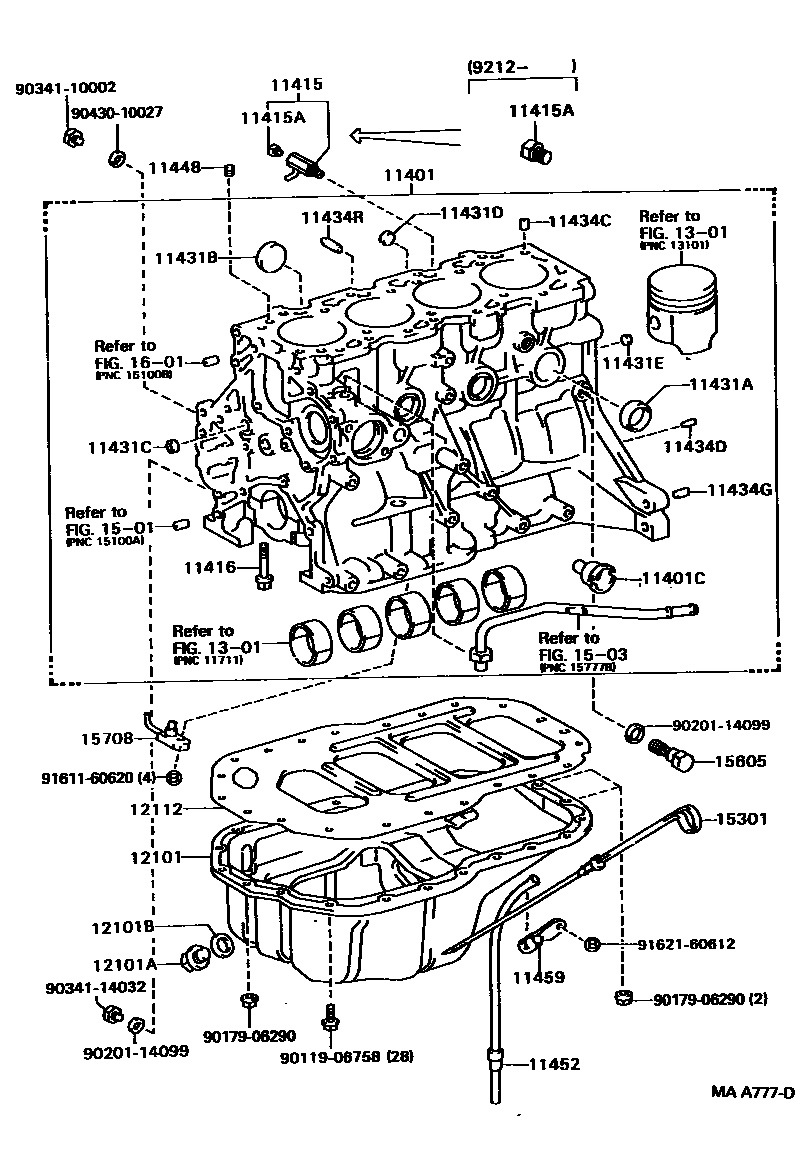

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69355i2CT..CV30199007-199209

sub11401-69357

sub11115-64122

main11401-69356i2CT..CV30199209-199406

sub11401-69358

sub11115-64122

main11401-69405i1VZFE..VZV30,31199007-199203

sub11401-69406

main11401-69406i1VZFE..VZV30,31199203-199206

main11401-69485i4VZFE..VZV32,33199105-199203

sub11401-69486

main11401-69486i4VZFE..VZV32,33199203-199308

sub11401-69487

main11401-69487i4VZFE..VZV3#199308-199406

main11401-79179i3SGE..SV32,33199007-199206

main11401-79366i4SFE..SV30199007-199008

sub11401-79367

main11401-79367i4SFE..SV30199008-199206

main11401-79515i3SFE..SV35199007-199406

sub11401-79516

main11401-79525i3SFE..SV32,33199007-199406

sub11401-79526

main11401-79595i4SFE..SV30199206-199406

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i2CT..CV30199007-199204

sub16353-64011

main16353-64011i2CT..CV30199204-199406

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2CT..CV30199007-199212

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3S#,4SFE..SV3#199007-199406

main90345-52003i2CT..CV30199212-199406

main90910-09087i2CT..CV30199007-199212

main96431-23814i1VZFE,4VZFE..VZV3#199007-199406

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i3S#,4SFE..SV3#199007-199406

main90910-02061i2CT..CV30199007-199406

main90910-02072i1VZFE,4VZFE..VZV3#199007-199406

sub90910-02176

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i1VZFE,4VZFE..VZV3#199007-199406

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2CT..CV30199007-199406

main96411-44000i3S#,4SFE..SV3#199007-199406

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2CT..CV30199007-199406

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2CT..CV30199007-199406

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i2CT..CV30199007-199406

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14001i2CT..CV30199007-199208

main90253-14002i2CT..CV30199208-199406

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3SFE..SV35199007-199406

main90250-06068i2CT..CV30199007-199406

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2CT..CV30199007-199406

11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

main90250-06003i2CT..CV30199007-199406

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54010i2CT..CV30199007-199009

sub11448-54020

main11448-54020i2CT..CV30199009-199209

main11448-64020i2CT..CV30199209-199406

11452GUIDE, OIL LEVEL GAGE

main11452-62020i1VZFE..VZV30,31199007-199206

main11452-62040i4VZFE..VZV32,33199105-199406

main11452-64030i2CT..CV30199007-199406

main11452-74030i3SFE,4SFE..SV3#199007-199404

sub11452-74031

main11452-74031i3SFE,4SFE..SV3#199404-199406

main11452-88361i3SGE..SV32,33199007-199206

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90929-01049i2CT..CV30199007-199406

12101PAN SUB-ASSY, OIL

main12101-62040i1VZFE..VZV3#199007-199105

sub12101-62041

main12101-62041i1VZFE,4VZFE..VZV3#199105-199306

sub12101-62042

sub12122-62011

main12101-62042i4VZFE..VZV3#199306-199406

main12101-64110i2CT..CV30199007-199206

sub12101-64131

main12101-64130i2CT..CV30199206-199302

sub12101-64131

main12101-64131i2CT..CV30199302-199406

main12101-74050i3S#,4SFE..SV3#199007-199406

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2CT..CV30199007-199406

main90341-12026i3SFE,4SFE..SV3#199107-199406

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i2CT..CV30199007-199008

sub90430-12028

main90430-12020i1VZFE..VZV3#199007-199105

sub90430-12028

main90430-12027i1VZFE,4VZFE..VZV3#199007-199312

sub90430-12031

main90430-12028i2CT..CV30199008-199108

sub90430-12031

main90430-12031i3SFE,4SFE..SV3#199304-199406

12112PAN, OIL NO.2

main12112-64040i2CT..CV30199007-199406

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62030i1VZFE..VZV3#199007-199105

sub15301-62050

main15301-62050i1VZFE,4VZFE..VZV3#199105-199406

main15301-64041i2CT..CV30199007-199205

main15301-64042i2CT..CV30199205-199406

main15301-74010i3SFE,4SFE..SV3#199007-199406

main15301-88363i3SGE..SV32,33199007-199206

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2CT..CV30199007-199406

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64020i2CT..CV30199007-199105

sub15790-64021

main15790-64021i2CT..CV30199105-199406

sub15790-64030

sub90110-06034

1601

9011906758

main90119-06758

9017906290

main90179-06290

9020114099

main90201-14099

9034110002

main90341-10002

9034114032

main90341-14032

9043010027

main90430-10027

9161160620

main91611-60620

9162160612

main91621-60612

36 parts on this diagram · 5 diagrams in section
