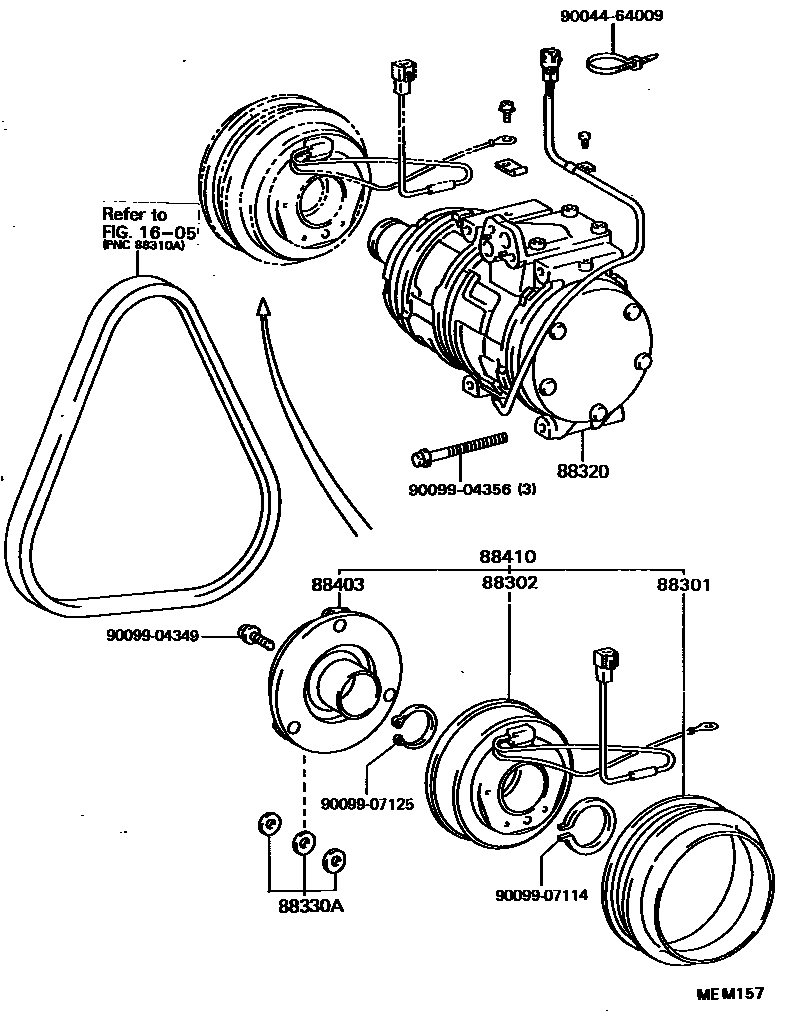

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iSV22,25..LUM,VE,VR,ZE198808-199007

sub88412-2B030

main88412-32030iVZV20198808-199007

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32021iSV25..XT198808-199007

main88411-32031iVZV20198808-198902

sub88411-35050

main88411-32050iVZV20198902-199007

sub88411-35050

88320COMPRESSOR ASSY, COOLER

main88320-32080iCV20198808-199007

sub88320-32081

main88320-32091iVZV20198808-199007

sub88320-32093

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCV20198805-199007

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iSV22..LUM,VE,VR,ZE198808-199007

88410CLUTCH ASSY, MAGNET

main88410-32030iSV22..HT..VL198808-199007

sub88410-32060

main88410-32040iVZV20198808-198902

sub88410-32050

main88410-32050iVZV20198902-199007

9004464009

main90044-64009

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

12 parts on this diagram · 3 diagrams in section
