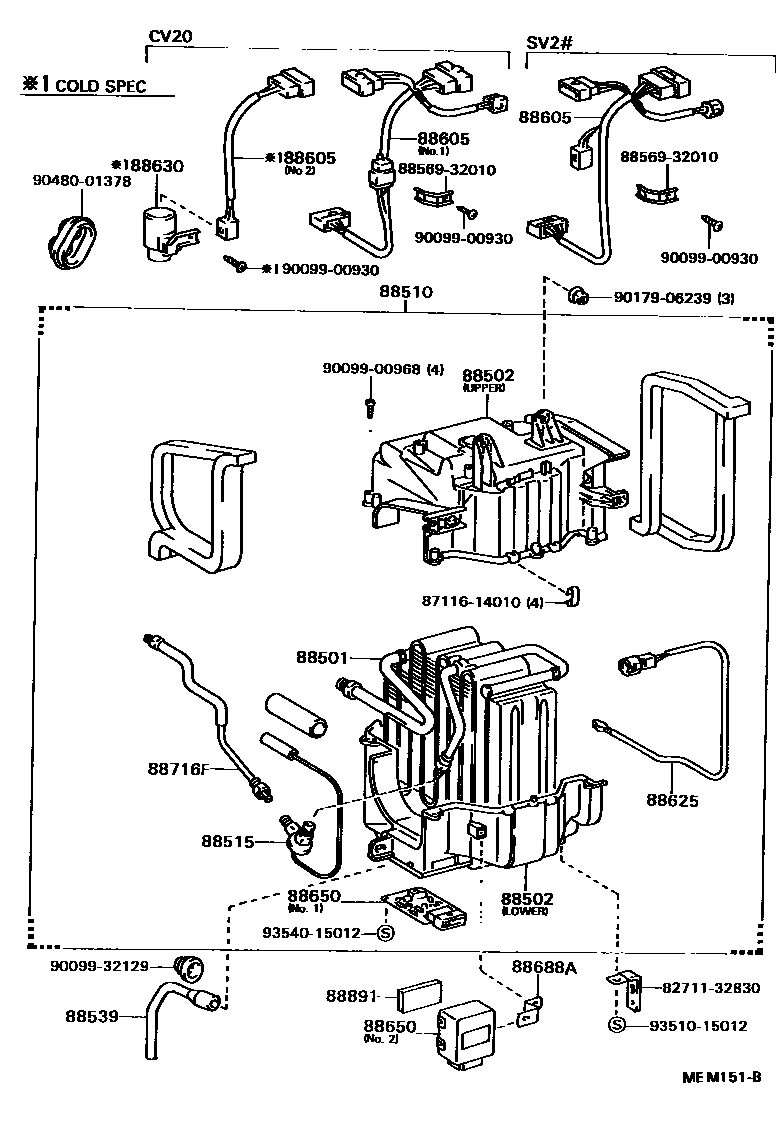

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32040iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

88502CASE SUB-ASSY, COOLING UNIT

main88502-32030iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

UPPER

main88502-32040iSV22..LT,VC198808-199007

LOWER

88510UNIT ASSY, COOLER

main88510-32230iSV22..LT,VC198808-199007

main88510-32240iCV20..5F198808-199007

main88510-32271iVZV20198808-199007

main88510-32360iCV20..4FC198808-199007

88515VALVE, COOLER EXPANSION

main88515-16040iSV22..XT198808-199007

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iSV22..LT,VC198808-199007

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-32280iSV22..LT,VC198808-199007

main88605-32320iCV20..VL198808-199007

main88605-32330iCV20..5F..VL198808-199007

main88605-32330iCV20..5F198808-199007

main88605-32350iSV21,25;CV20..4FC198808-199007

main88605-32440iVZV20198808-199007

main88605-32500iCV20..4FC..VL198808-199007

main88605-32510iSV22..4FC..XT198808-199007

88625THERMISTOR, COOLER, NO.1

main88625-32040iSV22..LT,VC198808-199007

main88625-32190iVZV20198808-199007

88630RELAY ASSY, COOLER

main88630-32030iCV20..LUM,VE,XT198808-199007

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20340iVZV20198808-199007

NO.3

main88650-32110iSV22..LT,VC198808-199007

NO.1(MAIN)

main88650-32130iCV20..5F198808-199007

NO.1(MAIN)

main88650-32150iSV21,25198808-199007

main88650-32160iVZV20198808-199007

NO.1(MAIN)

main88650-32190iVZV20198808-199007

main88650-32200iCV20..4FC198808-199007

NO.1(MAIN)

main88650-32260iSV22..HT..4FC..VL;SV22..4FC..(LUM,VE,VR,ZE)198808-199007

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-32180iVZV20198808-199007

main88688-32250iVZV20198808-199007

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-32270iSV22..SED..(VL,XT)198808-199007

88891PACKING (FOR COOLER)

main88891-32060iSV22..SED..4FC..VL198808-199007

8271132830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32830

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856932010CLAMP (FOR COOLER RELAY)

main88569-32010

9009900930

main90099-00930

9009900968

main90099-00968

9009932129

main90099-32129

9017906239

main90179-06239

9048001378

main90480-01378

9351015012

main93510-15012

9354015012

main93540-15012

22 parts on this diagram · 2 diagrams in section
