HORN

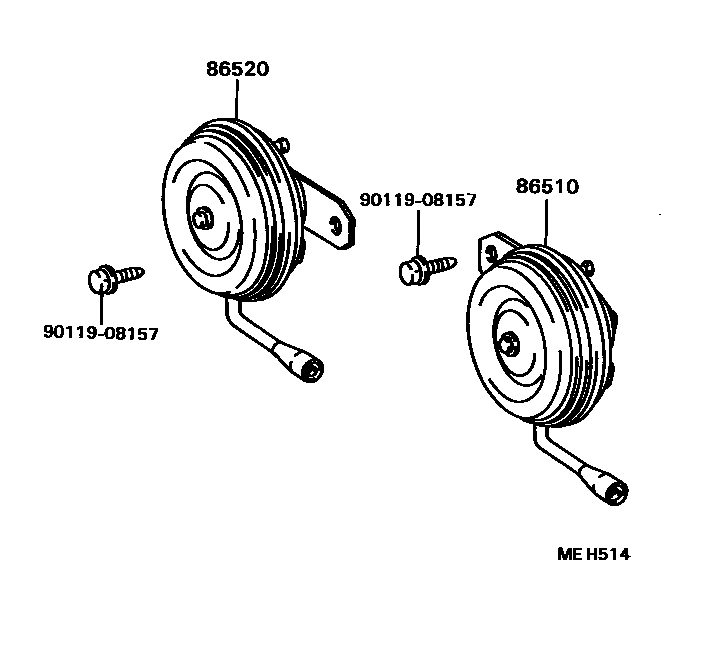

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-14220i198808-199007

main86510-32020i198808-199007

main86510-32040i198808-199007

86520HORN ASSY, LOW PITCHED

main86520-12640i198808-199007

main86520-14220i198808-199007

main86520-32020i198808-199007

9011908157

main90119-08157

3 parts on this diagram · 1 diagram in section
