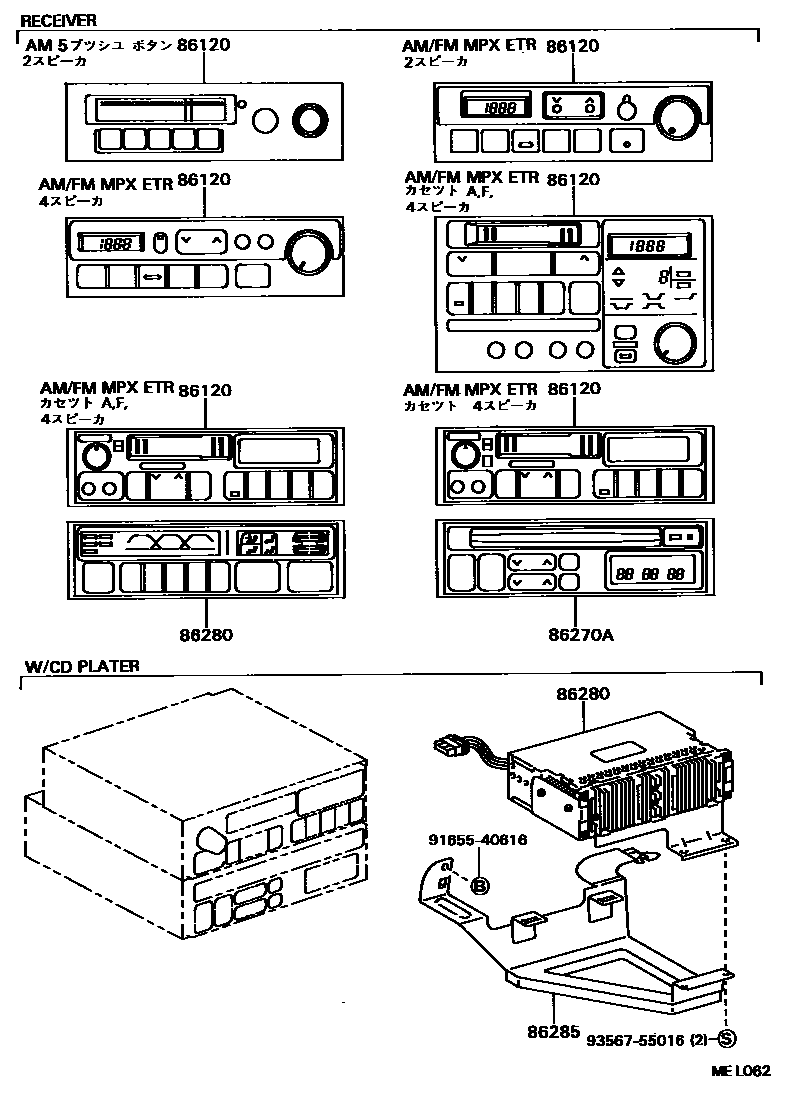

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-16350iSV22..LT,VC198808-199007

sub86120-10290

main86120-30750iVZV20..HT198808-199007

main86120-32290iSV21..ZX198810-198812

main86120-32290iSV21..ZX198808-199007

main86120-32300iSV21,VZV20..GT,PRO,VX,ZX198808-199007

main86120-32310iSV22,25..VR,ZE198808-199007

main86120-32320iCV20,SV2#..LUM,VE,VR,ZE198808-199007

86270ADISC PLAYER ASSY

main86270-32020iSV21,VZV20..GT,PRO,VX,ZX198808-199007

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-32060iSV21,VZV20..GT,PRO,VX,ZX198808-199007

main86280-32070iSV21..ZX198810-198812

main86280-32070iSV21..ZX198810-198812

main86280-32070iVZV20198808-199007

86285BRACKET, AMPLIFIER, NO.1

main86285-32020iSV21,VZV20..GT,PRO,VX,ZX198808-199007

9165540616

main91655-40616

9356755016

main93567-55016

6 parts on this diagram · 2 diagrams in section
