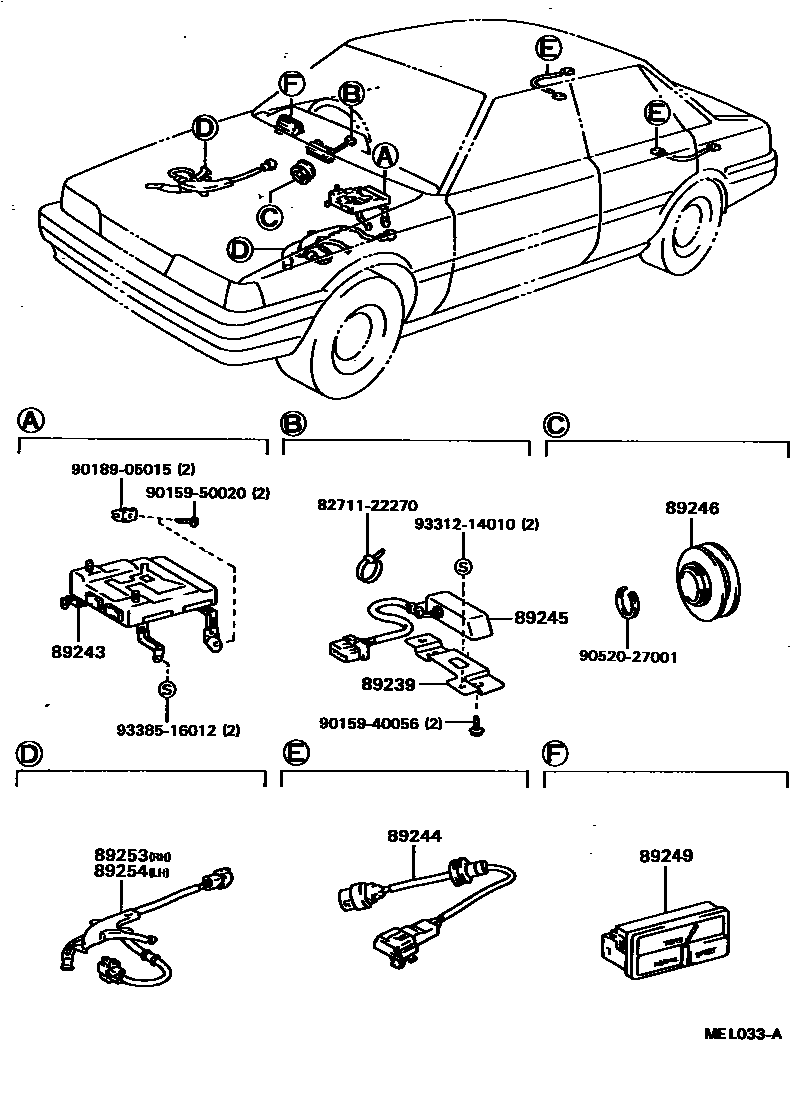

ELECTRONIC MODULATED SUSPENSION

89239BRACKET, STEERING SENSOR

main89239-32010iSV21,VZV20..GT,PRO198808-199007

89243COMPUTER, ABSORBER CONTROL

main89243-32040iSV21,VZV20..GT,PRO198808-199007

89244WIRE, ABSORBER CONTROL, REAR

main89244-32010iSV21,VZV20..GT,PRO198808-199007

89245SENSOR, STEERING

main89245-20010iSV21,VZV20..GT,PRO198808-199007

89246DISC, SENSOR STEERING

main89246-32010iSV21,VZV20..GT,PRO198808-199007

89249SWITCH, ABSORBER CONTROL

main89249-32020iSV21,VZV20..GT,PRO198808-199007

89253WIRE, ABSORBER CONTROL, FRONT RH

main89253-32010iSV21,VZV20..GT,PRO198808-199007

89254WIRE, ABSORBER CONTROL, FRONT LH

main89254-32010iSV21,VZV20..GT,PRO198808-199007

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9015940056

main90159-40056

9015950020

main90159-50020

9018905015

main90189-05015

9052027001

main90520-27001

9331214010

main93312-14010

9338516012

main93385-16012

15 parts on this diagram · 1 diagram in section
