ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

MOTOR RELAY

main88263-14120iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

SOLENOIDE RELAY

89411SENSOR, SPEED

main89542-32010iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

FRONT RH

main89543-32010iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

FRONT LH

main89545-32010iSV21,VZV20..GT,PRO,VX,ZX198808-199007

REAR RH

main89545-32020iSV25198808-199007

REAR RH

main89546-32010iSV21,VZV20..GT,PRO,VX,ZX198808-199007

REAR LH

main89546-32020iSV25198808-199007

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-32020iSV25198808-199007

main89541-32030iSV21,VZV20..GT,PRO,VX,ZX198808-199007

89549BRACKET, SKID CONTROL COMPUTER

main88267-32050iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

main88267-32060iSV25..HT198808-199007

main88268-32050iSV21,25,VZV20..HT..(GT,PRO,VL,VR,VX)198808-199007

main88269-32050iSV21,25,VZV20..HT..(GT,PRO,VL,VR,VX)198808-199007

main89549-32020iSV21,25,VZV20..SED..(GT,PRO,VL,VR,VX,XT,ZE,ZX)198808-199007

89638COVER, BRAKE CONTROL COMPUTER

main89638-32010iSV21,25,VZV20..SED..(GT,PRO,VL,VR,VX,XT,ZE,ZX)198808-199007

main89638-32020iSV21,25,VZV20..HT..(GT,PRO,VL,VR,VX)198808-199007

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080

8826632090CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32090

8826632100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32100

8826632110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32110

8826632120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32120

9015950193

main90159-50193

9017906081

main90179-06081

9046400102

main90464-00102

9161160612

main91611-60612

9161160622

main91611-60622

9165160614

main91651-60614

9165540616

main91655-40616

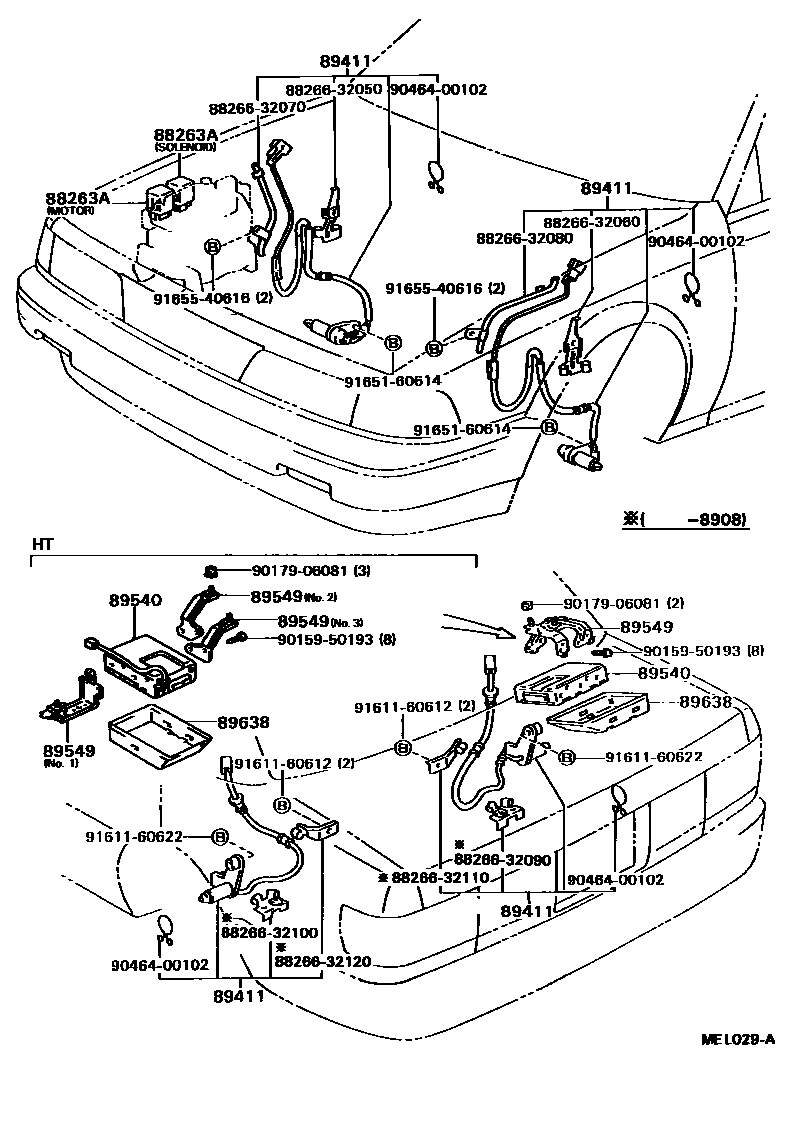

20 parts on this diagram · 2 diagrams in section
