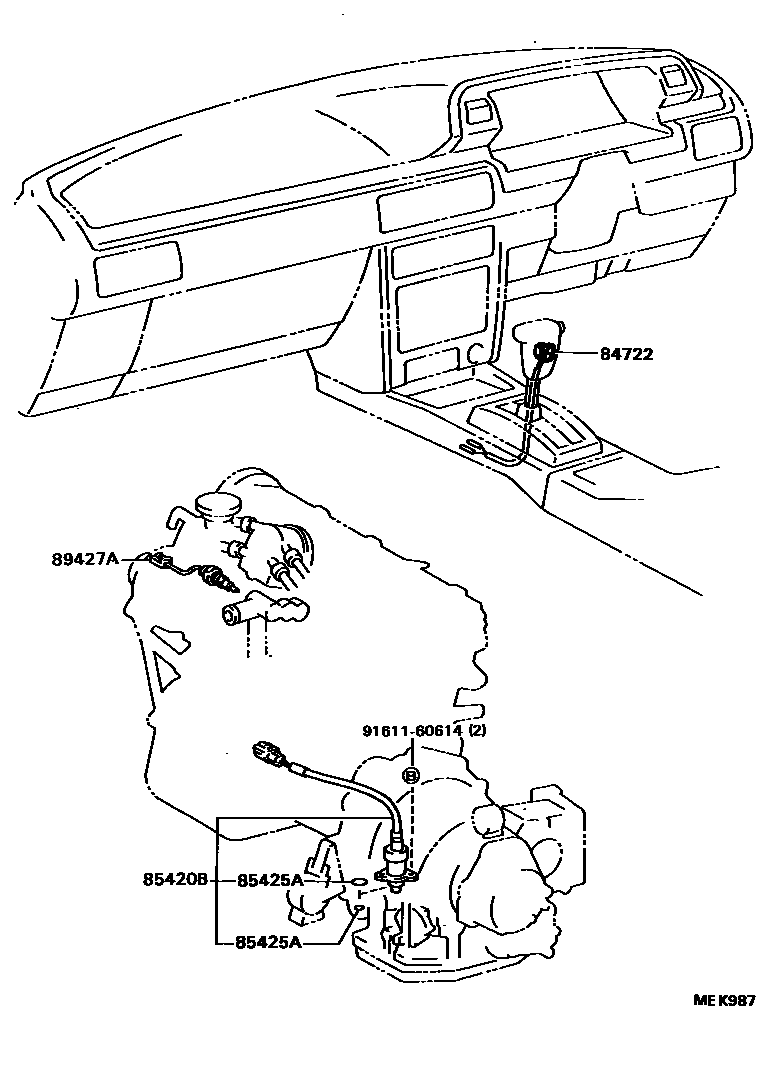

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT 0003 1ECT

84722SWITCH, TRANSMISSION CONTROL

main84722-32030-02iCV20,SV2#,VZV20..4FC198808-199007

MAROON,TRIM3#

sub84722-32030

main84722-32030-03iCV20,SV2#,VZV20..4FC198808-199007

MEDIUM GRAY,TRIM1#

sub84722-32030

main84722-32030-04iCV20,SV2#,VZV20..4FC198808-199007

DARK BLUE,TRIM8#

sub84722-32030

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iSV21,VZV20..4FC198808-198809

sub85420-32021

main85420-32021iSV21,VZV20..4FC198809-199007

main85420-32040iSV21,VZV20..4FC198808-198809

sub85420-32041

main85420-32041iSV21,VZV20..4FC198809-199007

main85420-32071iSV21,VZV20..4FC198808-199007

sub85420-32061

main85420-32101iSV25..4FC198808-198811

sub85420-32102

main85420-32102iSV25..4FC198811-199007

main85420-32120iSV25..4FC198808-199007

sub85420-32121

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iCV20,SV22..4FC198808-199007

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iCV20,SV22..4FC198808-199007

ID=7

main96721-19017iCV20,SV22..4FC198808-199007

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV2#..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

9161160614

main91611-60614

6 parts on this diagram · 3 diagrams in section
