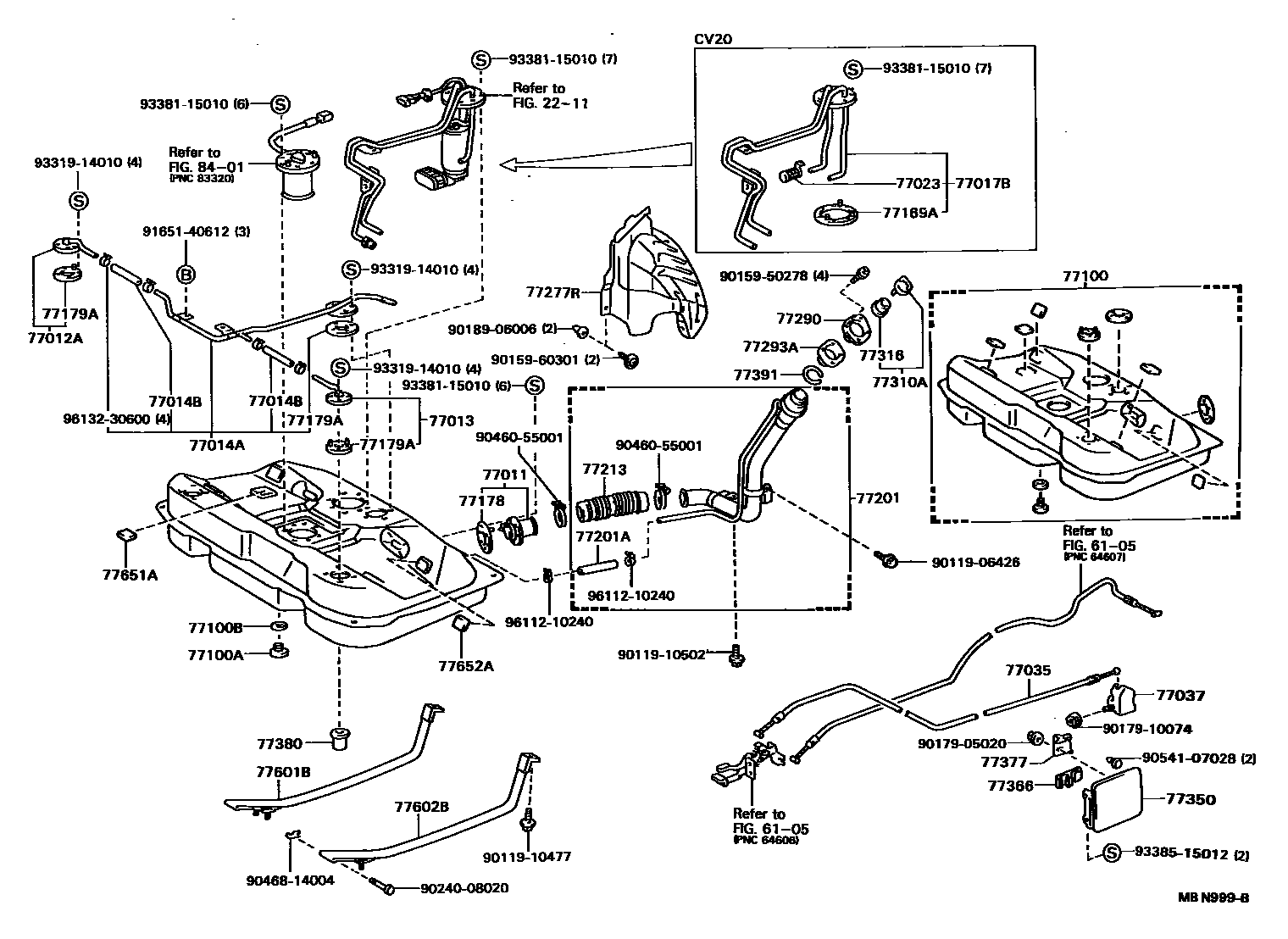

FUEL TANK & TUBE
2211
6105
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77017BTUBE SUB-ASSY, FUEL TANK VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
sub77037-38010
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-32070
sub77213-32020
sub77216-32030
sub77217-32021
sub77218-32020
sub77281-32010
sub90119-06347
sub90159-60357
sub90445-22030
sub90460-55001
sub96112-10240
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213HOSE, FUEL TANK SUB INLET
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
8401
9011906426
main90119-06426
9011910477
main90119-10477
9011910502
main90119-10502
9015950278
main90159-50278
9015960301
main90159-60301
9017905020
main90179-05020
9017910074
main90179-10074
9018906006
main90189-06006
9024008020
main90240-08020
9046055001
main90460-55001
9046814004
main90468-14004
9054107028
main90541-07028
9165140612
main91651-40612
9331914010
main93319-14010
9338115010
main93381-15010
9338515012
main93385-15012
9611210240
main96112-10240
9613230600
main96132-30600
53 parts on this diagram · 5 diagrams in section
