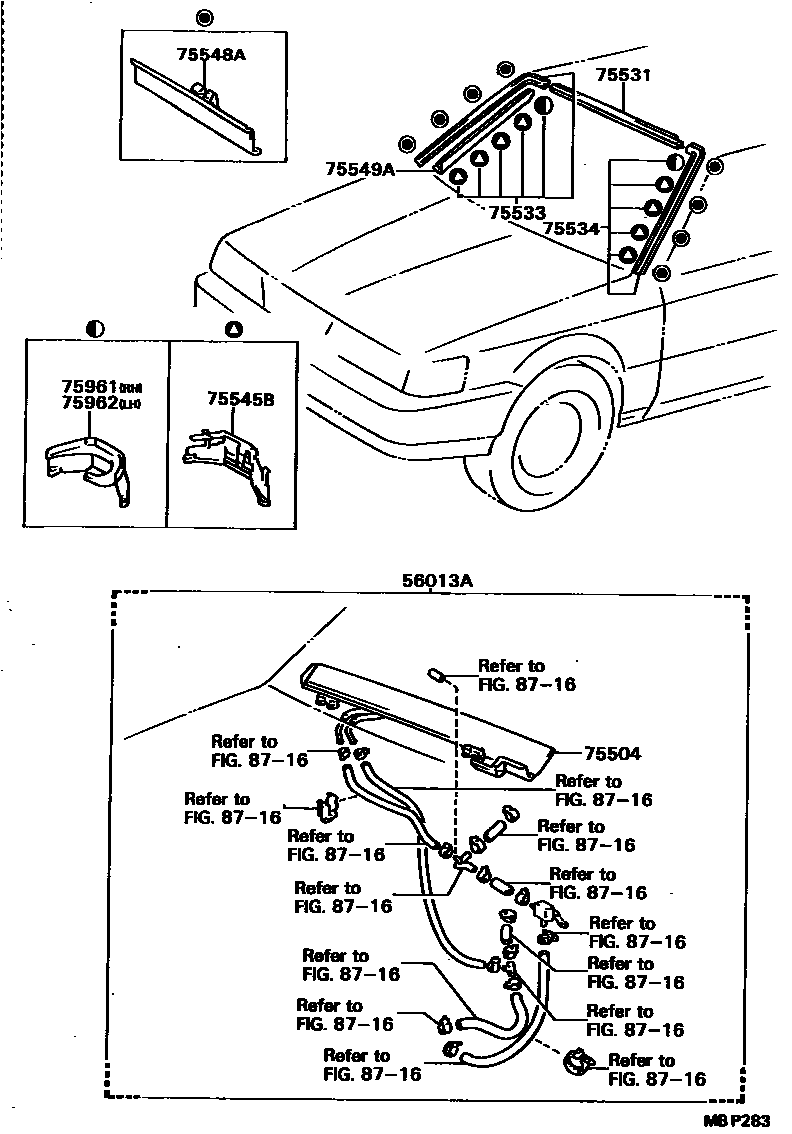

FRONT MOULDING
56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
***
***
75504MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75549AMOULDING, WINDSHIELD OUTSIDE SUB
75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
8716
11 parts on this diagram · 2 diagrams in section
