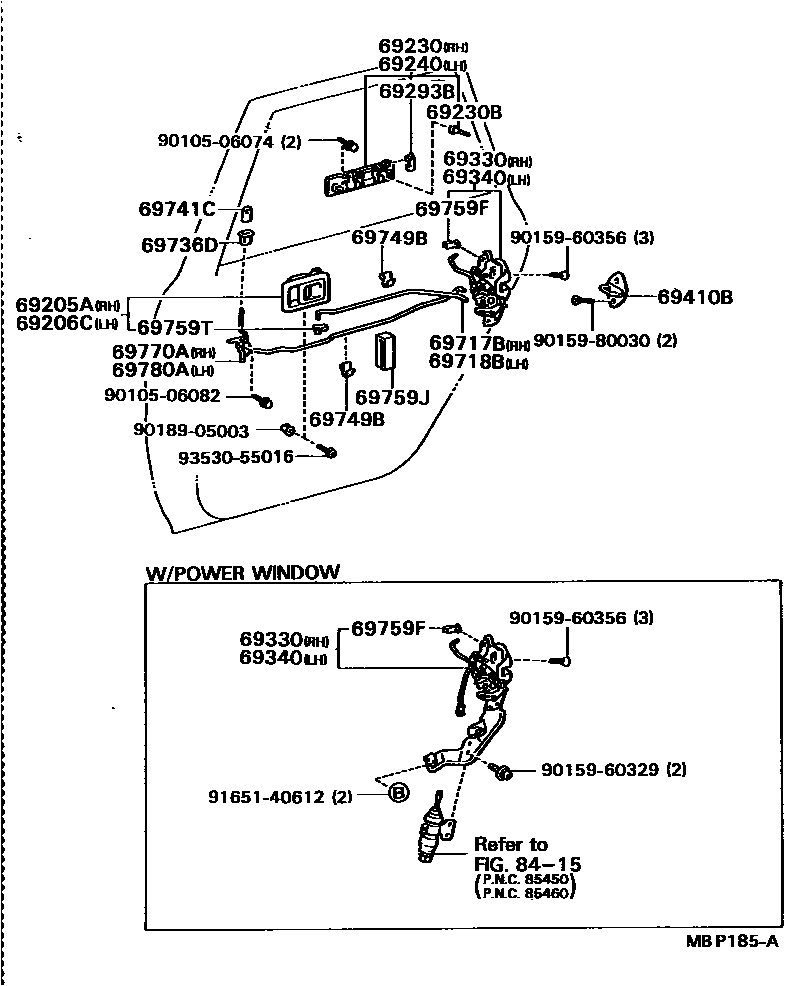

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-32020-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

sub69205-32020

main69205-32020-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32020

main69205-32020-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub69205-32020

main69205-32030-02iSV22..XT199001-199007

sub69205-32030

main69205-32030-02iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-02iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MAROON,TRIM3#

sub69205-32030

main69205-32030-02iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-02iSV22..XT198808-199001

sub69205-32030

main69205-32030-03iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-03iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32030

main69205-32030-03iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-03iSV22..XT199001-199007

sub69205-32030

main69205-32030-03iSV22..XT198808-199001

sub69205-32030

main69205-32030-04iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-04iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-04iSV22..XT198808-199001

sub69205-32030

main69205-32030-04iSV22..XT199001-199007

sub69205-32030

main69205-32051-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

sub69205-32051

main69205-32051-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32051

main69205-32051-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

sub69205-32051

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-32020-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

sub69206-32020

main69206-32020-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub69206-32020

main69206-32020-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub69206-32020

main69206-32030-02iSV22..XT198808-199001

sub69206-32030

main69206-32030-02iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-02iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-02iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MAROON,TRIM3#

sub69206-32030

main69206-32030-02iSV22..XT199001-199007

sub69206-32030

main69206-32030-03iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub69206-32030

main69206-32030-03iSV22..XT198808-199001

sub69206-32030

main69206-32030-03iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-03iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-03iSV22..XT199001-199007

sub69206-32030

main69206-32030-04iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-04iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-04iSV22..XT198808-199001

sub69206-32030

main69206-32030-04iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iSV22..XT199001-199007

sub69206-32030

main69206-32051-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main69206-32051-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main69206-32051-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-32030iCV20,SV2#,VZV20..SED198808-199007

main69230-32020iCV20,SV2#,VZV20..HT198808-199007

main69230-32030-13iSV21..HT..VX199001

main69230-32030-18iCV20,SV22..HT..VL199001-199007

main69230-32030-18iCV20,SV22..HT..VL199001

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV2#,VZV20198808-199007

main90541-04018iCV20,SV22..HT..VL199001-199007

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-32030iCV20,SV2#,VZV20..SED198808-199007

main69240-32020iCV20,SV2#,VZV20..HT198808-199007

main69240-32030-13iSV21..HT..VX199001

main69240-32030-18iCV20,SV22..HT..VL199001-199007

main69240-32030-18iCV20,SV22..HT..VL199001

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iCV20,SV2#,VZV20198808-199007

main69293-12060iCV20,SV2#,VZV20198808-199007

69330LOCK ASSY, REAR DOOR, RH

main69330-32191iCV20,SV22,25..HT..VL198808-199007

main69330-32201iSV21..HT..VX199001-199007

main69330-32201iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

main69330-32201iCV20,SV22..HT..VL198905-199007

main69330-32201iCV20,SV22..HT..VL198808-198905

main69330-32201iSV25..HT..VL198910-199007

main69330-32210iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69330-32220iSV25..SED..VL198906-199007

sub69330-32250

main69330-32220iCV20,SV22..SED..VL198808-198906

sub69330-32250

main69330-32220iSV25..SED..(VL,XT)198905-198906

sub69330-32250

main69330-32220iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub69330-32250

main69330-32220iSV25..SED..VL198906-199007

sub69330-32250

main69330-32220iSV25..SED..VL198906-199007

sub69330-32250

main69330-32220iSV22..XT199001-199007

sub69330-32250

69340LOCK ASSY, REAR DOOR, LH

main69340-32191iCV20,SV22,25..HT..VL198808-199007

main69340-32201iCV20,SV22..HT..VL198808-198905

main69340-32201iCV20,SV22..HT..VL198905-199007

main69340-32201iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

main69340-32201iSV25..HT..VL198910-199007

main69340-32201iSV21..HT..VX199001-199007

main69340-32210iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69340-32220iSV25..XT198906-199007

sub69340-32250

main69340-32220iSV25..XT198906-199007

sub69340-32250

main69340-32220iSV25..XT198906-199007

sub69340-32250

main69340-32220iSV22..XT199001-199007

sub69340-32250

main69340-32220iCV20,SV22..SED..VL198808-198906

sub69340-32250

main69340-32220iSV25..SED..(VL,XT)198905-198906

sub69340-32250

main69340-32220iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub69340-32250

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iCV20,SV2#,VZV20198808-199007

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-32020iCV20,SV2#,VZV20..SED198808-199007

main69713-32040iCV20,SV2#,VZV20..HT198808-199007

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-32020iCV20,SV2#,VZV20..SED198808-199007

main69714-32040iCV20,SV2#,VZV20..HT198808-199007

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12030iCV20,SV2#,VZV20..SED198808-199007

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

sub69741-32020

main69741-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

sub69741-32020

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30020iCV20,SV2#,VZV20..SED198808-199007

main69749-32010iCV20,SV2#,VZV20..HT198808-199007

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-22030iCV20,SV2#,VZV20..HT198808-199007

main69759-24050iCV20,SV2#,VZV20..SED198808-199007

GREEN

main69759-24060iCV20,SV2#,VZV20..SED198808-199007

GRAY

69759JSILENCER, DOOR LOCK LINK

main69759-30021iCV20,SV2#,VZV20..SED198808-199007

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69737-32051iCV20,SV2#,VZV20..HT198808-199007

main69770-32030iCV20,SV2#,VZV20..SED198808-199007

sub69770-32040

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69738-32051iCV20,SV2#,VZV20..HT198808-199007

main69780-32030iCV20,SV2#,VZV20..SED198808-199007

sub69780-32040

8415

9010506074

main90105-06074

9010506082

main90105-06082

9015960329

main90159-60329

9015960356

main90159-60356

9015980030

main90159-80030

9018905003

main90189-05003

9165140612

main91651-40612

9353055016

main93530-55016

27 parts on this diagram · 2 diagrams in section
