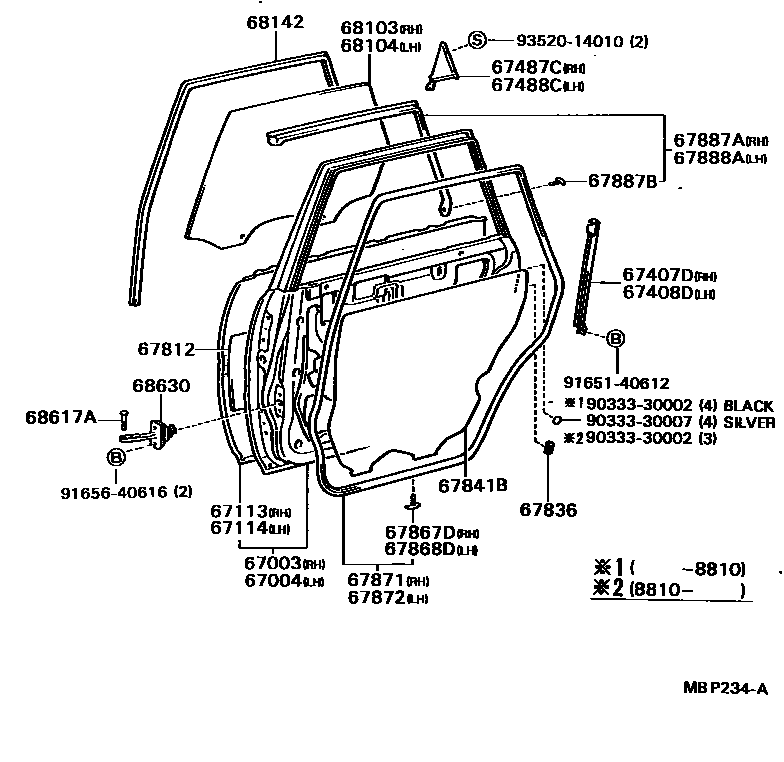

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-32130iCV20,SV2#,VZV20..SED198808-199007

main67003-32200iCV20,SV22,25..HT..VL198808-198906

sub67003-32280

sub90541-09069

sub90950-01682

main67003-32280iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-32130iCV20,SV2#,VZV20..SED198808-199007

main67004-32200iCV20,SV22,25..HT..VL198808-198906

sub67004-32280

sub90541-09069

sub90950-01682

main67004-32280iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

67113PANEL, REAR DOOR, OUTER RH

main67113-32040iCV20,SV2#,VZV20..SED198808-199007

main67113-32060iCV20,SV2#,VZV20..HT198808-199007

67114PANEL, REAR DOOR, OUTER LH

main67114-32040iCV20,SV2#,VZV20..SED198808-199007

main67114-32060iCV20,SV2#,VZV20..HT198808-199007

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-32030iCV20,SV2#,VZV20..SED198808-199007

main67407-32040iCV20,SV2#,VZV20..HT198808-198906

sub67407-32050

main67407-32050iCV20,SV2#,VZV20..HT198906-199007

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-32030iCV20,SV2#,VZV20..SED198808-199007

main67408-32040iCV20,SV2#,VZV20..HT198808-198906

sub67408-32050

main67408-32050iCV20,SV2#,VZV20..HT198906-199007

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-32030iCV20,SV2#,VZV20..SED198808-199007

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-32030iCV20,SV2#,VZV20..SED198808-199007

67812PAD, REAR DOOR SILENCER

main67812-12010iCV20,SV2#,VZV20198808-199007

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iCV20,SV2#,VZV20..SED198808-198810

main67836-20060iCV20,SV2#,VZV20..SED198810-199007

main67836-32010iCV20,SV2#,VZV20..HT198808-199007

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-32050iCV20,SV2#,VZV20..SED198808-199007

main67841-32060iCV20,SV2#,VZV20..HT198808-199007

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-20010iCV20,SV2#,VZV20..SED198808-198810

main67868-30050iCV20,SV2#,VZV20..HT198808-199007

sub67867-12150

main67868-32030iCV20,SV2#,VZV20..SED198810-199007

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-20010iCV20,SV2#,VZV20..SED198808-198810

sub67867-20010

main67868-30050iCV20,SV2#,VZV20..HT198808-199007

sub67867-12150

main67868-32030iCV20,SV2#,VZV20..SED198810-199007

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32050iCV20,SV2#,VZV20..SED198808-199007

main67871-32060iCV20,SV2#,VZV20..HT198808-199007

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32050iCV20,SV2#,VZV20..SED198808-199007

main67872-32060iCV20,SV2#,VZV20..HT198808-199007

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-32010iCV20,SV2#,VZV20..SED198808-199007

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-20020iCV20,SV2#,VZV20..SED198810-199007

main67869-30020iCV20,SV2#,VZV20..SED198808-198810

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-32010iCV20,SV2#,VZV20..SED198808-199007

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-32050iCV20,SV2#,VZV20..SED198808-199007

main68113-32060iCV20,SV22..SED..VL198808-198905

main68113-32060iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

main68113-32070iCV20,SV2#,VZV20..HT198808-199007

main68113-32080iSV25..HT..VR;CV20,SV21,22,VZV20..HT198808-199007

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-32050iCV20,SV2#,VZV20..SED198808-199007

main68114-32060iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-198905

main68114-32060iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

main68114-32070iCV20,SV2#,VZV20..HT198808-199007

main68114-32080iCV20,SV2#,VZV20..HT198808-199007

68142RUN, REAR DOOR GLASS

main68142-32050iCV20,SV2#,VZV20..SED198808-199007

main68152-32010iCV20,SV2#,VZV20..SED198808-199007

68617APIN, REAR DOOR CHECK

main68617-20011iCV20,SV2#,VZV20..HT198908-199007

main68617-32010iCV20,SV2#,VZV20198808-199007

68630CHECK ASSY, REAR DOOR

main68630-32031iCV20,SV2#,VZV20198808-199007

9033330002

main90333-30002

9033330007

main90333-30007

9165140612

main91651-40612

9165640616

main91656-40616

9352014010

main93520-14010

28 parts on this diagram · 3 diagrams in section
