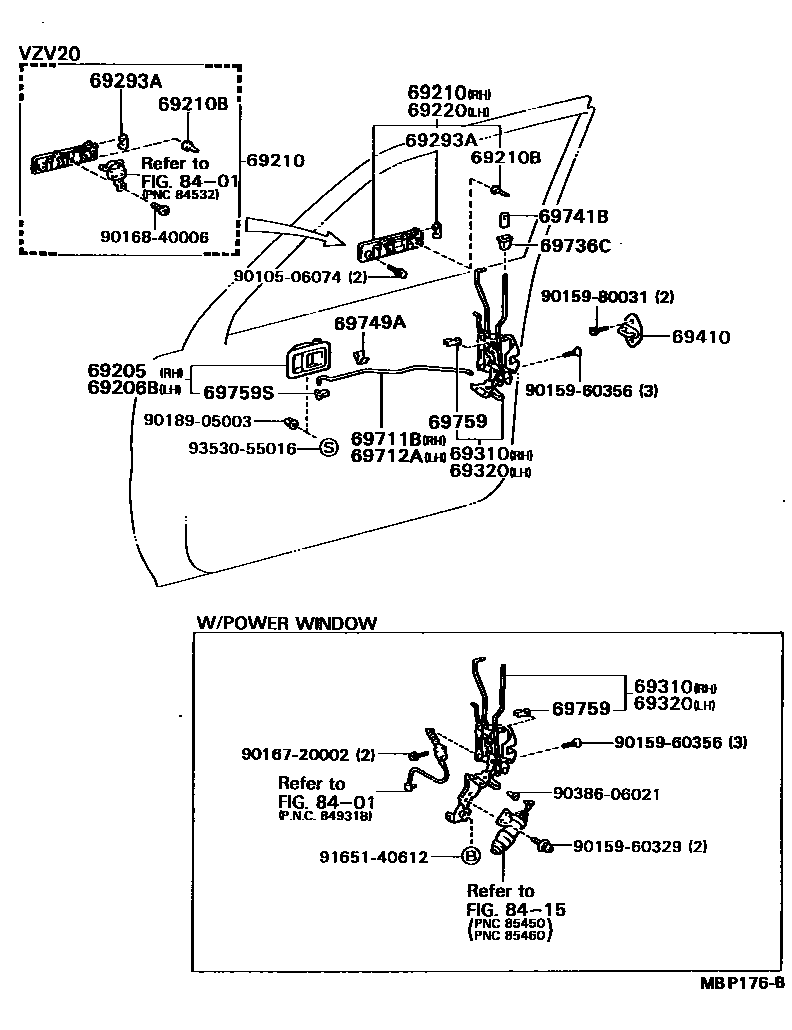

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32020-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

sub69205-32020

main69205-32020-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32020

main69205-32020-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub69205-32020

main69205-32030-02iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-02iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-02iSV22..XT199001-199007

sub69205-32030

main69205-32030-02iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MAROON,TRIM3#

sub69205-32030

main69205-32030-02iSV22..XT198808-199001

sub69205-32030

main69205-32030-03iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32030

main69205-32030-03iSV22..XT198808-199001

sub69205-32030

main69205-32030-03iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-03iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-03iSV22..XT199001-199007

sub69205-32030

main69205-32030-04iSV22..SED..VL198808-198906

sub69205-32030

main69205-32030-04iSV22..XT198808-199001

sub69205-32030

main69205-32030-04iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iSV22..SED..VL198906-199007

sub69205-32030

main69205-32030-04iSV22..XT199001-199007

sub69205-32030

main69205-32051-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

sub69205-32051

main69205-32051-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

sub69205-32051

main69205-32051-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

sub69205-32051

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32020-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

sub69206-32020

main69206-32020-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub69206-32020

main69206-32020-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub69206-32020

main69206-32030-02iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MAROON,TRIM3#

sub69206-32030

main69206-32030-02iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-02iSV22..XT198808-199001

sub69206-32030

main69206-32030-02iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-02iSV22..XT199001-199007

sub69206-32030

main69206-32030-03iSV22..XT198808-199001

sub69206-32030

main69206-32030-03iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-03iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub69206-32030

main69206-32030-03iSV22..XT199001-199007

sub69206-32030

main69206-32030-03iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-04iSV22..XT198808-199001

sub69206-32030

main69206-32030-04iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iSV22..SED..VL198808-198906

sub69206-32030

main69206-32030-04iSV22..SED..VL198906-199007

sub69206-32030

main69206-32030-04iSV22..XT199001-199007

sub69206-32030

main69206-32051-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main69206-32051-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main69206-32051-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32030iCV20,SV2#..SED198808-199007

main69210-32040iVZV20..SED198808-199007

sub69210-32030

main69210-32050iVZV20..HT198808-198905

main69210-32050iCV20,SV2#..HT198808-199007

main69210-32050iVZV20..HT198905-199007

main69210-32060iVZV20..HT198808-199007

main69210-32120-03iSV21..HT..VX199001-199003

main69210-32120-08iCV20,SV22..HT..VL199001-199007

main69210-32120-08iCV20,SV22..HT..VL199001-199007

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV2#,VZV20198808-199007

main90541-04018iCV20,SV22..HT..VL199001-199007

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32030iCV20,SV2#,VZV20..SED198808-199007

main69220-32050iCV20,SV2#,VZV20..HT198808-199007

main69220-32110-03iSV21..HT..VX199001-199003

main69220-32110-08iCV20,SV22..HT..VL199001-199007

main69220-32110-08iCV20,SV22..HT..VL199001-199007

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iCV20,SV2#,VZV20198808-199007

main69293-12060iCV20,SV2#,VZV20198808-199007

69310LOCK ASSY, FRONT DOOR, RH

main69310-32121iCV20,SV22,25..HT..VL198808-199007

main69310-32261iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

main69310-32261iCV20,SV22..HT..VL198905-199007

main69310-32261iSV25..HT..VL198910-199007

main69310-32261iCV20,SV22..HT..VL198808-198905

main69310-32261iSV21..HT..VX199001-199007

main69310-32270iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69310-32280iCV20,SV22..SED..VL198808-198906

sub69310-32310

main69310-32280iSV25..SED..(VL,XT)198905-198906

sub69310-32310

main69310-32280iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub69310-32310

main69310-32280iSV25..SED..VL198906-199007

sub69310-32310

main69310-32280iSV25..SED..VL198906-199007

sub69310-32310

main69310-32280iSV25..SED..VL198906-199007

sub69310-32310

main69310-32280iSV22..XT199001-199007

sub69310-32310

69320LOCK ASSY, FRONT DOOR, LH

main69320-32251iCV20,SV22,25..HT..VL198808-199007

main69320-32261iCV20,SV22..HT..VL198905-199007

main69320-32261iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

main69320-32261iCV20,SV22..HT..VL198808-198905

main69320-32261iSV25..HT..VL198910-199007

main69320-32261iSV21..HT..VX199001-199007

main69320-32270iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69320-32280iSV25..XT198906-199007

main69320-32280iSV25..XT198906-199007

main69320-32280iSV25..XT198906-199007

main69320-32280iSV22..XT199001-199007

main69320-32280iCV20,SV22..SED..VL198808-198906

main69320-32280iSV25..SED..(VL,XT)198905-198906

main69320-32280iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iCV20,SV2#,VZV20198808-199007

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-32030iCV20,SV2#,VZV20..SED198808-199007

main69711-32050iCV20,SV2#,VZV20..HT198808-199007

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-32020iCV20,SV2#,VZV20..SED198808-199007

main69712-32040iCV20,SV2#,VZV20..HT198808-199007

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iCV20,SV2#,VZV20..SED198808-199007

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

sub69741-32020

main69741-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

sub69741-32020

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020iCV20,SV2#,VZV20..SED198808-199007

main69749-32010iCV20,SV2#,VZV20..HT198808-199007

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20020iCV20,SV2#,VZV20..HT198808-199007

NATURAL

main69759-20030iCV20,SV2#,VZV20..HT198808-199007

main69759-20040iCV20,SV2#,VZV20..HT198808-199007

YELLOW

main69759-20050iCV20,SV2#,VZV20..HT198808-199007

BROWN

main69759-24030iCV20,SV2#,VZV20..HT198808-199007

main69759-24040iCV20,SV2#,VZV20..HT198808-199007

PINK

main69759-24050iCV20,SV2#,VZV20..SED198808-199007

GREEN

main69759-24060iCV20,SV2#,VZV20..SED198808-199007

GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iCV20,SV2#,VZV20..HT198808-199007

main69759-24010iSV22..SED..VL198808-198906

main69759-24010iSV22..SED..VL198906-199007

main69759-24010iSV22..XT198808-199001

main69759-24010iSV22..XT199001-199007

main69759-24010iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main69759-24020iSV22..SED..VL198906-199007

main69759-24020iSV22..XT199001-199007

main69759-24020iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main69759-24020iSV22..SED..VL198808-198906

main69759-24020iSV22..XT198808-199001

main69759-24070iSV22..SED..(LT,VC,VL,XT)198808-199007

8401

8415

9010506074

main90105-06074

9015960329

main90159-60329

9015960356

main90159-60356

9015980031

main90159-80031

9016720002

main90167-20002

9016840006

main90168-40006

9018905003

main90189-05003

9038606021

main90386-06021

9165140612

main91651-40612

9353055016

main93530-55016

28 parts on this diagram · 2 diagrams in section
