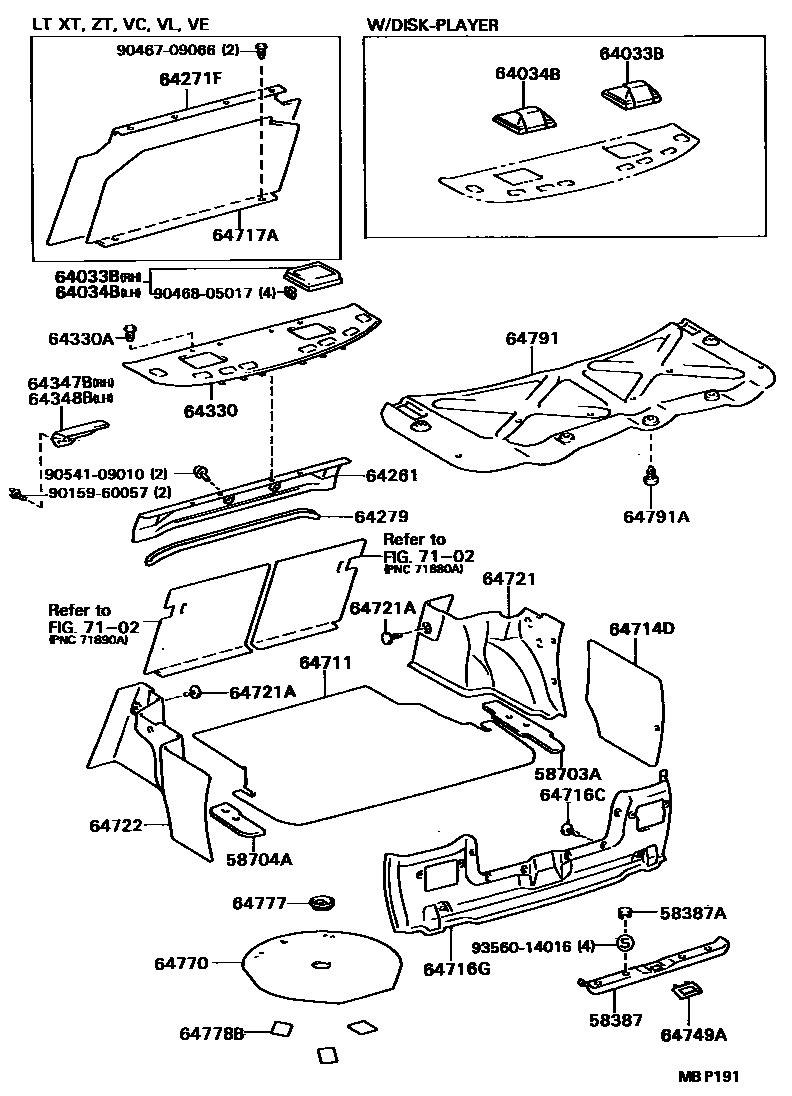

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1 0004 1

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iSV22..SED..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-12iSV22..XT198808-199007

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-14iSV22..XT198808-199007

DARK BLUE,TRIM8#

sub90950-01503

main90950-01503-B0iSV22..XT198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iCV20,SV21,22,VZV20198808-199007

main58703-32020iSV25198808-199007

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iSV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

main58704-32010iCV20,SV21,22..LUM198906-199007

main58704-32020iCV20,SV2#,VZV20..HT198808-199007

main58704-32030iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main58704-32040iSV25..SED198808-199007

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-02iSV22..VL198910-199007

main64033-22040-02iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

MAROON,TRIM3#

main64033-22040-02iCV20..VL198910-199007

main64033-22040-03iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

MEDIUM GRAY,TRIM1#

main64033-22040-03iCV20..VL198910-199007

main64033-22040-04iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

DARK BLUE,TRIM8#

main64033-22040-04iCV20..VL198910-199007

main86269-32010iVZV20..SED198808-199007

main86269-32010iSV21..ZX198810-198812

main86269-32010iSV21..ZX198810-198812

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-02iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

MAROON,TRIM3#

main64033-22040-02iSV22..VL198910-199007

main64033-22040-02iSV22..VL198910-199007

main64033-22040-03iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

MEDIUM GRAY,TRIM1#

main64033-22040-03iCV20..VL198910-199007

main64033-22040-04iSV22..VL198910-199007

main64033-22040-04iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

DARK BLUE,TRIM8#

main86269-32010iSV21..SED..(GT,VX,ZX)198808-199007

main86269-32010iSV21..ZX198810-198812

main86269-32010iSV21..ZX198810-198812

64261GARNISH, ROOM PARTITION

main64261-32010-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MAROON,TRIM3#

sub64261-32010

main64261-32010-02iCV20,SV21,22..LUM198906-199007

sub64261-32010

main64261-32010-03iCV20,SV21,22..LUM198908-199007

sub64261-32010

main64261-32010-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-04iCV20,SV21,22..LUM198906-199007

sub64261-32010

main64261-32020-02iCV20,SV22..HT..VL198905-199007

main64261-32020-02iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

MAROON,TRIM3#

main64261-32020-03iCV20,SV22..HT..VL198905-199007

main64261-32020-03iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

MEDIUM GRAY,TRIM1#

main64261-32020-04iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

DARK GRAY,TRIM8#

main64261-32020-04iCV20,SV22..HT..VL198905-199007

64271FTRIM, ROOM PARTITION

main64271-32030iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

64279PROTECTOR, ROOM PARTITION

main64279-32020-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MAROON,TRIM3#

main64279-32020-02iCV20,SV21,22..LUM198906-199007

main64279-32020-03iSV25..SED..(VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main64279-32020-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198908-199007

main64279-32020-04iCV20,SV21,22..LUM198906-199007

main64279-32020-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

main64279-32030-02iCV20,SV22..HT..VL198905-199007

sub64795-32010

main64279-32030-02iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

MAROON,TRIM3#

sub64795-32010

main64279-32030-03iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

MEDIUM GRAY,TRIM1#

sub64795-32010

main64279-32030-03iCV20,SV22..HT..VL198905-199007

sub64795-32010

main64279-32030-04iCV20,SV22..HT..VL198905-199007

sub64795-32010

main64279-32030-04iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

DARK BLUE,TRIM8#

sub64795-32010

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32130-02iVZV20..HT198808-199007

MAROON,TRIM3#

sub64330-32130

main64330-32130-02iCV20,SV2#..HT..(VE,VL)198808-199007

sub64330-32130

main64330-32130-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

sub64330-32130

main64330-32130-03iCV20,SV2#..HT..(VE,VL)198808-199007

sub64330-32130

main64330-32130-04iVZV20..HT198808-199007

sub64330-32130

main64330-32130-04iCV20,SV2#..HT..(VE,VL)198808-199007

DARK BLUE,TRIM8#

sub64330-32130

main64330-32150-02iCV20,SV21,22..HT..VE198808-199007

sub64330-32150

main64330-32150-02iCV20,SV22..HT..VL198910-199007

sub64330-32150

main64330-32150-02iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

sub64330-32150

main64330-32150-03iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

sub64330-32150

main64330-32150-03iCV20,SV21,22..HT..VE198808-199007

sub64330-32150

main64330-32150-03iCV20,SV22..HT..VL198910-199007

sub64330-32150

main64330-32150-04iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

sub64330-32150

main64330-32150-04iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

sub64330-32150

main64330-32150-04iCV20,SV22..HT..VL198910-199007

sub64330-32150

main64330-32161-02iSV22..SED..VL198908-198910

sub64330-32161

main64330-32161-02iSV22..SED..(LUM,VE);CV20,SV21,25..SED..(LUM,VE,VL,XT)198808-199007

MAROON,TRIM3#

sub64330-32161

main64330-32161-02iSV22..SED..VL198808-199007

sub64330-32161

main64330-32161-02iSV22..XT198808-199001

sub64330-32161

main64330-32161-02iSV22..XT199001-199007

sub64330-32161

main64330-32161-03iSV22..XT199001-199007

sub64330-32161

main64330-32161-03iSV22..SED..(LUM,VE);CV20,SV21,25..SED..(LUM,VE,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub64330-32161

main64330-32161-03iSV22..SED..VL198908-198910

sub64330-32161

main64330-32161-03iSV22..SED..VL198808-199007

sub64330-32161

main64330-32161-03iSV22..XT198808-199001

sub64330-32161

main64330-32161-04iSV22..SED..VL198908-198910

sub64330-32161

main64330-32161-04iSV22..SED..VL198808-199007

sub64330-32161

main64330-32161-04iSV22..XT198808-199001

sub64330-32161

main64330-32161-04iSV22..SED..(LUM,VE);CV20,SV21,25..SED..(LUM,VE,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iSV22..XT199001-199007

sub64330-32161

main64330-32191-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

sub64330-32161

sub64330-32191

main64330-32191-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

sub64330-32161

sub64330-32191

main64330-32191-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

sub64330-32161

sub64330-32191

main64330-32211-02iSV22,25..SED..(VR,ZE)198808-199007

main64330-32211-02iCV20,SV21,22..SED..(LUM,VE)198808-199007

MAROON,TRIM3#

main64330-32211-02iCV20,SV22..SED..VL198910-199007

main64330-32211-03iCV20,SV21,22..SED..(LUM,VE)198808-199007

main64330-32211-03iSV22,25..SED..(VR,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main64330-32211-03iCV20,SV22..SED..VL198910-199007

main64330-32211-04iSV22,25..SED..(VR,ZE)198808-199007

main64330-32211-04iCV20,SV21,22..SED..(LUM,VE)198808-199007

DARK BLUE,TRIM8#

main64330-32211-04iCV20,SV22..SED..VL198910-199007

main64330-32221-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main64330-32221-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main64330-32221-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-B0iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-D0iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-J0iCV20,SV2#,VZV20198808-199007

LIGHT BLUE,TRIM8#

sub90467-08046

sub90467-08037

64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE

main64347-32010iCV20,SV22,25..HT..VL198808-199007

main64347-32010iCV20,SV22..HT..VL198905-199007

main64347-32010iSV25..HT..VL198910-199007

main64347-32010iCV20,SV22..HT..VL198808-198905

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iCV20,SV2#,VZV20..SED198808-199007

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iCV20,SV2#,VZV20..SED198808-199007

sub64348-32020

main64348-32020iVZV20..SED198808-199007

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-03010-B1iSV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198809-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-03010-B1iCV20,SV21,22..LUM198906-199007

main64711-32030-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32040-03iSV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32040-03iCV20,SV21,22..LUM198906-199007

main64711-32050-03iCV20,SV22..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub64711-32060

main64711-32060-03iCV20,SV21,22..HT..VE198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32060-03iCV20,SV22..HT..VL198905-199007

main64711-32070-03iSV21,22,VZV20..HT..(GT,PRO,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32080-03iSV25..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32090-03iSV25..HT..VR198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32100-03iSV25..SED..(VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64711-32110-03iSV25..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-32030-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32040-03iSV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32040-03iCV20,SV21,22..LUM198906-199007

main64714-32060-03iSV25..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32080-03iCV20,SV22..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub64714-32090

main64714-32090-03iCV20,SV22..HT..VL198905-199007

main64714-32090-03iCV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32100-03iSV25..HT..VR198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32110-03iSV25..SED..(VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64714-32120-03iSV25..SED..(VR,ZE)198808-199007

GRAY,TRIM1#,3#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iSV22..XT198808-199007

GRAY,TRIM1#,3#,8#

sub90467-05004

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-32040-03iSV22..XT199001-199007

sub64716-32050

main64716-32040-03iSV22..XT198808-199001

sub64716-32050

main64716-32040-03iSV22..SED..VL198906-199007

sub64716-32050

main64716-32040-03iSV22..SED..VL198808-198906

sub64716-32050

main64716-32040-03iSV22..SED..(LUM,VE);CV20,SV21..SED..(LUM,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub64716-32050

main64716-32050-03iCV20,SV21,22..LUM198906-199007

main64716-32050-03iSV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64716-32080-03iCV20,SV22..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub64716-32090

main64716-32090-03iCV20,SV22..HT..VL198905-199007

main64716-32090-03iCV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64716-32100-03iSV25..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub64716-32110

main64716-32110-03iSV25..HT..VR198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64716-32120-03iSV25..SED..(VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64716-32130-03iSV25..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32030-03iCV20,SV22..HT..VL;CV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64717-32040-03iSV25..VL,XT198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32030-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32040-03iSV25..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32050-03iCV20,SV21,22..LUM198906-199007

main64721-32050-03iSV22..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32061-03iCV20,SV22..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32071-03iCV20,SV22..HT..VL198905-199007

main64721-32071-03iCV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32080-03iSV25..HT..VR198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32090-03iSV25..SED..(VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32100-03iSV25..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64721-32110-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-06114-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198906-199007

LIGHT GRAY,TRIM1#,3#,8#

sub90467-06114

main90467-06114-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198906-199007

sub90467-06114

main90467-07042-B0iCV20,SV22..HT..VL198905-199007

sub90467-07042

sub90467-06175

main90467-07042-B0iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32030-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32040-03iSV25..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32050-03iCV20,SV21,22..LUM198906-199007

main64722-32050-03iSV22..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32060-03iCV20,SV22..HT..VL198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32070-03iCV20,SV22..HT..VL198905-199007

main64722-32070-03iCV20,SV21,22,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32080-03iSV25..HT..VR198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32090-03iSV25..SED..(VL,XT)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32100-03iSV25..SED..(VR,ZE)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

main64722-32110-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-32010iSV22..SED..(LT,VC,VL,XT)198808-199007

main64749-32020-03iCV20,SV2#,VZV20..HT198808-199007

LIGHT GRAY,TRIM1#,3#,8#

64770COVER ASSY, SPARE WHEEL

main64770-32050iSV25198808-199007

main64771-32040iCV20,SV21,22,VZV20198808-199007

64777CLAMP, SPARE WHEEL COVER

main64777-32030iCV20,SV2#,VZV20198808-199007

64778BPROTECTOR, SPARE WHEEL

main64778-14020iCV20,SV22..5F;SV21,25,VZV20198808-199007

main64778-20040iCV20,SV22..4FC198808-199007

sub64778-32020

64791COVER, BACK DOOR TRIM

main64791-32020-03iCV20,SV2#,VZV20..SED198808-199007

GRAY,TRIM1#,3#,8#

main64791-32030-03iCV20,SV2#,VZV20..HT198808-198906

GRAY,TRIM1#,3#,8#

main64791-32040-03iCV20,SV2#,VZV20..HT198906-199007

LIGHT GRAY,TRIM1#,3#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-08056-23iCV20,SV2#,VZV20..HT198808-199007

GRAY,TRIM1#,3#,8#

sub90467-08056

7102

9015960057

main90159-60057

9046709066

main90467-09066

9046805017

main90468-05017

9054109010

main90541-09010

9356014016

main93560-14016

34 parts on this diagram · 4 diagrams in section
