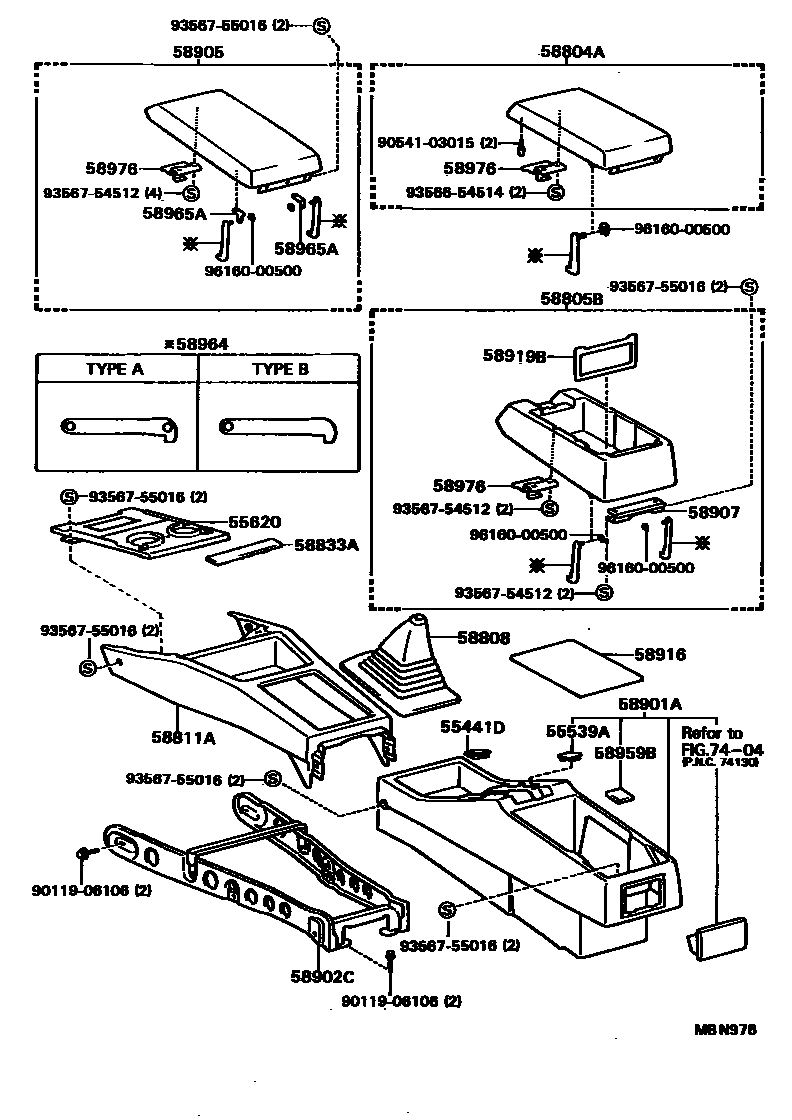

CONSOLE BOX & BRACKET

0001 1 0002 1

55441DBOX, INSTRUMENT PANEL COIN

main55539-20020-B0iCV20,SV2#,VZV20198808-198906

MEDIUM GRAY,TRIM1#

sub55539-20020

main55539-20020-D0iCV20,SV2#,VZV20198808-198906

MAROON,TRIM3#

sub55539-20020

main55539-20020-J0iCV20,SV2#,VZV20198808-198906

DARK BLUE,TRIM8#

sub55539-20020

main55539-32030-02iCV20,SV2#,VZV20198906-199007

MAROON,TRIM3#

sub55539-32030

main55539-32030-03iCV20,SV2#,VZV20198906-199007

MEDIUM GARY,TRIM1#

sub55539-32030

main55539-32030-04iCV20,SV2#,VZV20198906-199007

DARK BLUE,TRIM8#

sub55539-32030

55539ACOVER, SPARE SWITCH HOLE

main55539-20030-12iSV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-20030-13iSV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

MEDIUM GRAY,TRIM1#

sub55539-32010

sub55539-20030

main55539-20030-14iSV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

DARK BLUE,TRIM8#

sub55539-32010

sub55539-20030

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-32010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-32030-02iCV20,SV21,22..5F..LUM198906-199007

sub58804-32030

main58804-32030-02iCV20,SV21,22..5F..LUM198901-198906

sub58804-32030

main58804-32030-02iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MAROON,TRIM3#

sub58804-32030

main58804-32030-03iCV20,SV21,22..5F..LUM198906-199007

sub58804-32030

main58804-32030-03iCV20,SV21,22..5F..LUM198901-198906

sub58804-32030

main58804-32030-03iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MEDIUM GRAY,TRIM1#

sub58804-32030

main58804-32030-04iCV20,SV21,22..5F..LUM198901-198906

sub58804-32030

main58804-32030-04iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

sub58804-32030

main58804-32030-04iCV20,SV21,22..5F..LUM198906-199007

sub58804-32030

main58804-32040-02iCV20,SV21,22..4FC..(LUM,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

sub58804-32051

sub58804-32050

main58804-32040-03iCV20,SV21,22..4FC..(LUM,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub58804-32051

sub58804-32050

main58804-32040-04iCV20,SV21,22..4FC..(LUM,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

sub58804-32051

sub58804-32050

main58804-32051-02iSV21..4FC..(VX,ZX)198808-199007

MAROON,TRIM3#

main58804-32051-03iSV21..4FC..(VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main58804-32051-04iSV21..4FC..(VX,ZX)198808-199007

DARK BLUE,TRIM8#

main58804-32061-02iSV21..4FC..ZX198810-198811

main58804-32061-02iVZV20..4FC198808-199007

MAROON,TRIM3#

main58804-32061-02iSV21..HT..4FC..VX198906-199007

main58804-32061-03iVZV20..4FC198808-199007

MEDIUM GRAY,TRIM1#

main58804-32061-03iSV21..HT..4FC..VX198906-199007

main58804-32061-04iSV21..HT..4FC..VX198906-199007

main58804-32061-04iVZV20..4FC198808-199007

DARK BLUE,TRIM8#

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-32021-02iCV20,SV21,22..5F..LUM198906-199007

main58805-32021-02iCV20,SV21,22..5F..LUM198901-198906

main58805-32021-02iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MAROON,TRIM3#

main58805-32021-03iCV20,SV21,22..5F..LUM198906-199007

main58805-32021-03iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main58805-32021-03iCV20,SV21,22..5F..LUM198901-198906

main58805-32021-04iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

main58805-32021-04iCV20,SV21,22..5F..LUM198906-199007

main58805-32021-04iCV20,SV21,22..5F..LUM198901-198906

main58805-32031-02iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

MAROON,TRIM3#

main58805-32031-03iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main58805-32031-04iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-32020-02iCV20,SV2#,VZV20..5F198808-199007

MAROON,TRIM3#

sub58808-32020

main58808-32020-03iCV20,SV2#,VZV20..5F198808-199007

MEDIUM GRAY,TRIM1#

sub58808-32020

main58808-32020-04iCV20,SV2#,VZV20..5F198808-199007

DARK BLUE,TRIM8#

sub58808-32020

58811ABOX, CONSOLE, FRONT

main58811-32050-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main58811-32050-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main58811-32050-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

58833ACOVER, CONSOLE, UPPER

main58833-32010iCV20,SV22,25..LT,VC,VL,XT198808-199007

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-32012-02iSV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

MAROON,TRIM3#

main58901-32012-03iSV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

MEDIUM GRAY,TRIM1#

main58901-32012-04iSV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

DARK BLUE,TRIM8#

main58901-32020-02iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

MAROON,TRIM3#

main58901-32020-03iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main58901-32020-04iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

DARK BLUE,TRIM8#

main58901-32042-02iSV25198808-199007

MAROON,TRIM3#

main58901-32042-03iSV25198808-199007

MEDIUM GRAY,TRIM1#

main58901-32042-04iSV25198808-199007

DARK BLUE,TRIM8#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-32011iCV20,SV2#,VZV20198808-199007

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-32081-02iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

MAROON,TRIM3#

main58905-32081-03iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

main58905-32081-04iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-89101iCV20,SV21,22..5F..LUM198901-198906

main58907-89101iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

main58907-89101iCV20,SV21,22..5F..LUM198906-199007

58916MAT, BOX BOTTOM

main58916-32040iCV20,SV21,22,VZV20198808-199007

main58916-32070iSV25198808-199007

58919BPLATE, CONSOLE BOX

main58919-32010iCV20,SV21,22..5F..LUM198901-198906

main58919-32010iSV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

main58919-32010iCV20,SV21,22..5F..LUM198906-199007

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iSV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30040iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

main58964-30040iCV20,SV21,22..5F..LUM198901-198906

main58964-30040iCV20,SV21,22..5F..LUM198906-199007

main58964-32040iSV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F198808-199007

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

main58965-20020iSV25..VL,XT;CV20,SV21,22..5F..(LT,LUM,VC,VE,VL,XT)198808-199007

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iSV21..5F..(LUM,VE);SV22..4FC..(VR,ZE);CV20,SV22,25..LT,LUM,VC,VE,VL,XT;SV21,VZV20..4FC..(LUM,PRO,VE,VX,ZX)198808-199007

main58976-22020iCV20,SV21,22..5F..LUM198901-198906

main58976-22020iCV20,SV21,22..5F..LUM198906-199007

7404

9011906106

main90119-06106

9054103015

main90541-03015

9356654514

main93566-54514

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

25 parts on this diagram · 2 diagrams in section
