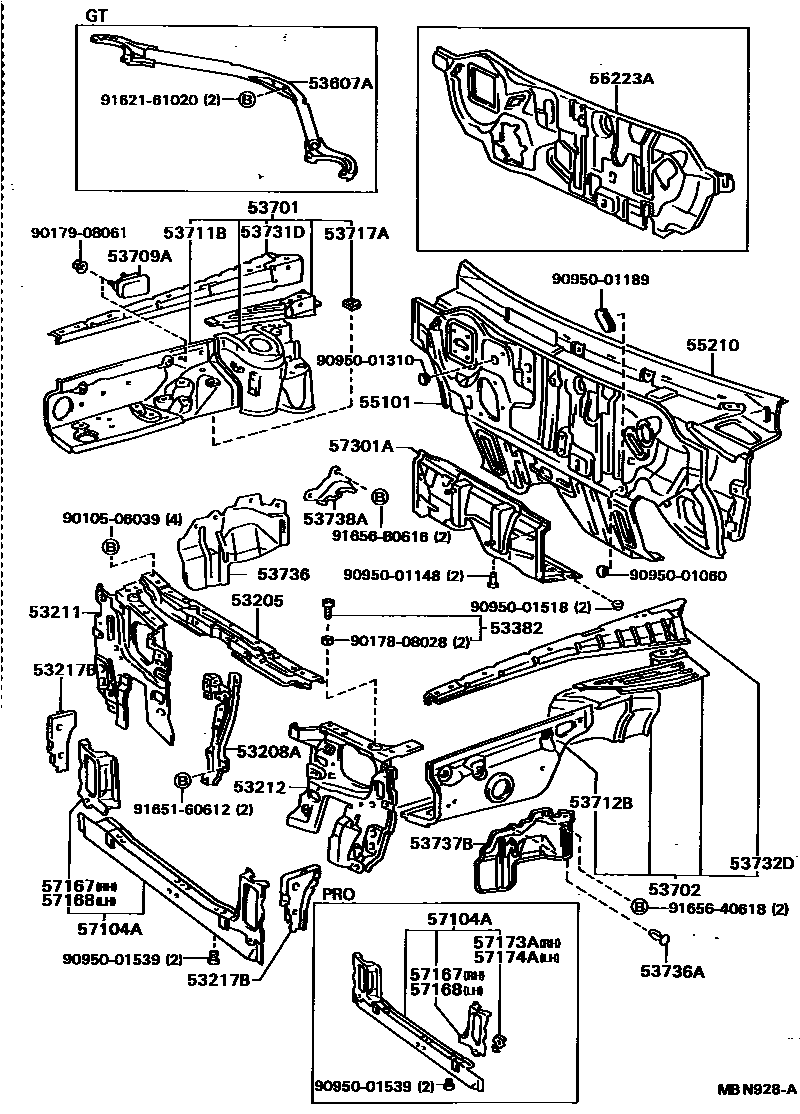

FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-32010iCV20,SV2#,VZV20..SED198808-199007

main53205-32020iCV20,SV2#,VZV20..HT198808-199007

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32040iCV20,SV2#..CAM198808-199007

main53208-32050iCV20,SV2#..VIS..SED198808-199007

main53208-32070iVZV20..SED198808-199007

main53208-32080iCV20,SV2#..HT198808-199007

main53208-32100iVZV20..HT198808-199007

53211SUPPORT, RADIATOR, RH

main53211-32900iCV20,SV2#,VZV20198808-199007

53212SUPPORT, RADIATOR, LH

main53212-32900iCV20,SV2#,VZV20198808-199007

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32030iCV20,SV2#,VZV20198808-199007

main53218-32030iCV20,SV2#,VZV20198808-199007

53382BUMPER, HOOD, FRONT

main53382-32020iCV20,SV2#,VZV20198808-199007

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-32010iSV21..GT198808-199007

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32909iSV21..GT;CV20,SV25198808-199007

sub53701-32911

main53701-32912iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

sub53701-32911

main53701-32913iSV21,22,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub53701-32911

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32908iCV20..5F;SV2#,VZV20198808-199007

sub53702-32911

main53702-32909iCV20..4FC198808-199007

sub53702-32910

53709ADAMPER SUB-ASSY, FRONT FENDER APRON

main53709-32020iCV20,SV2#,VZV20198808-199007

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32030iSV21..GT;CV20,SV25198808-199007

main53711-32071iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-199007

main53711-32110iSV21,22,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32030iCV20,SV2#,VZV20198808-199007

53717APLATE, FENDER APRON

main53717-32010iSV21,25..GT,VL,VR,XT,ZE198808-199007

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32020iCV20,SV2#,VZV20198808-199007

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32020iCV20,SV2#,VZV20198808-199007

53736SEAL, FRONT FENDER APRON, RH

main53736-32020iCV20,SV2#,VZV20198808-199007

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09063iCV20,SV2#,VZV20198808-199007

53737BSEAL, FRONT FENDER APRON, LH

main53737-32020iCV20,SV2#,VZV20198808-199007

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-32020iSV21,25,VZV20198808-199007

55101PANEL SUB-ASSY, DASH

main55101-32140iSV21,25..4FC..(GT,VL,VR,XT,ZE)198808-198810

sub55101-32141

main55101-32141iSV21,25..4FC..(GT,VL,VR,XT,ZE)198810-199007

sub55101-32161

sub90333-15002

sub90333-40001

main55101-32150iCV20,SV21,25,VZV20..5F198808-198810

sub55101-32151

main55101-32151iSV22..5F198808-199007

main55101-32160iCV20,SV21,VZV20..4FC..(LUM,PRO,VE,VL,VX,XT,ZX)198808-198810

sub55101-32161

main55101-32161iCV20,SV21,22,VZV20..4FC..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

55210INSULATOR ASSY, DASH PANEL

main55210-32030iCV20,SV2#,VZV20198808-199007

55223AINSULATOR, DASH PANEL, OUTER

main55223-32030iCV20,SV21,25,VZV20198808-199007

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-32900iCV20,SV2#198808-199007

main57104-32901iVZV20..SED198808-199007

sub57104-32905

main57104-32904iVZV20..HT198808-198906

sub57104-32905

main57104-32905iVZV20..HT198906-199007

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32030iCV20,SV2#,VZV20198808-199007

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32030iCV20,SV2#,VZV20198808-199007

57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH

main57173-32020iVZV20198808-199007

57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-32010iVZV20198808-199007

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32040iCV20,SV2#,VZV20..5F198808-199007

main57301-32050iCV20,SV2#,VZV20..4FC198808-199007

9010506039

main90105-06039

9017808028

main90178-08028

9017908061

main90179-08061

9095001060

main90950-01060

9095001148

main90950-01148

9095001189

main90950-01189

9095001310

main90950-01310

9095001518

main90950-01518

9095001539

main90950-01539

9162161020

main91621-61020

9165160612

main91651-60612

9165640618

main91656-40618

91656B0616

main91656-B0616

41 parts on this diagram · 1 diagram in section
