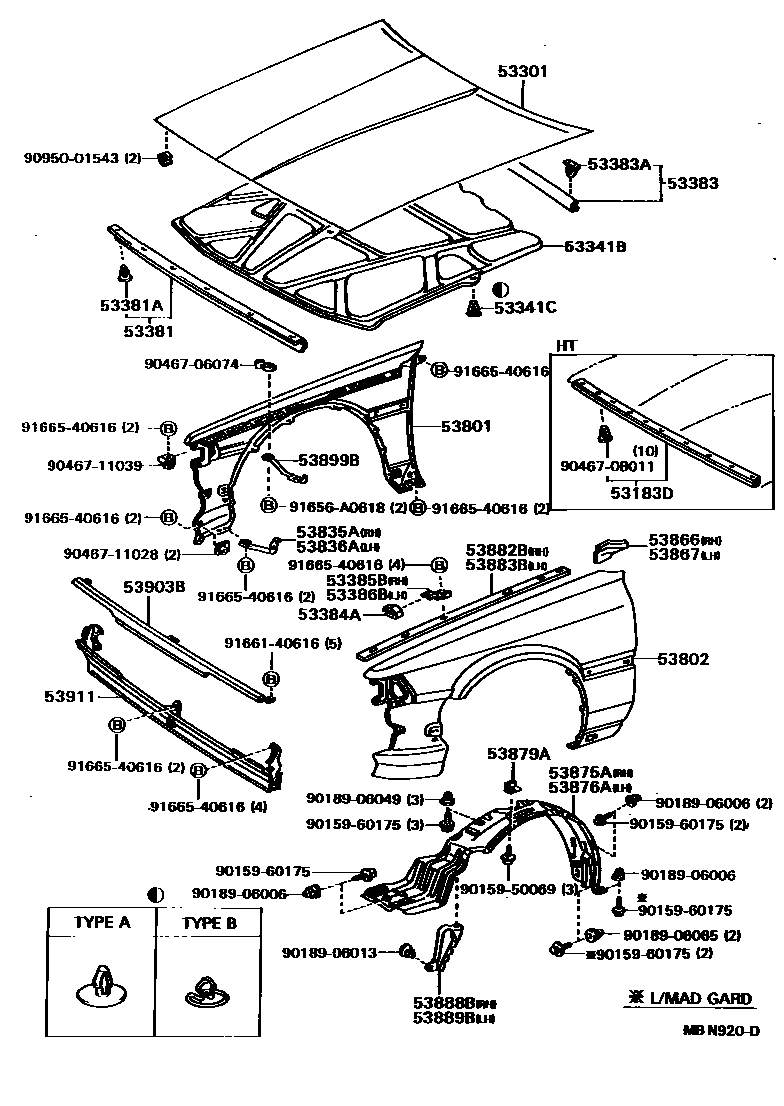

HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-32020iCV20,SV2#,VZV20..HT198808-199007

53301HOOD SUB-ASSY

main53301-32051iCV20,SV2#,VZV20..SED198808-199007

main53301-32081iCV20,SV2#,VZV20..HT198808-199007

53341BINSULATOR, HOOD

main53341-32030iCV20,SV21,25,VZV20198808-199007

sub53341-32050

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iSV21,25,VZV20198808-199007

main90467-11020iCV20198808-199007

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-32020iCV20,SV2#,VZV20198808-199007

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCV20,SV2#,VZV20198808-199007

53383SEAL, HOOD TO COWL TOP

main53383-32020iCV20,SV2#,VZV20198808-199007

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08044iCV20,SV2#,VZV20198808-199007

sub90467-08011

53384ABUMPER, FENDER TO HOOD

main53384-14030iCV20,SV2#,VZV20198808-199007

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iCV20,SV2#,VZV20198808-198911

main53385-20020iCV20,SV2#,VZV20198911-199007

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iCV20,SV2#,VZV20198808-198911

main53386-20020iCV20,SV2#,VZV20198911-199007

53801FENDER SUB-ASSY, FRONT RH

main53801-32070iSV22..SED..(VL,XT)198808-199007

main53801-32100iSV22..SED..(VL,XT)198808-199007

main53801-32120iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

sub53801-32130

main53801-32120iSV22..SED..VL198808-198905

sub53801-32130

main53801-32120iSV22..SED..VL198905-199007

sub53801-32130

main53801-32120iSV22..XT198808-199001

sub53801-32130

main53801-32120iSV22..XT199001-199007

sub53801-32130

main53801-32130iSV22..SED..VL198808-198905

main53801-32130iSV22..XT198808-199001

main53801-32130iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main53801-32130iSV22..SED..VL198905-199007

main53801-32130iSV22..XT199001-199007

main53801-32150iVZV20..HT198808-199007

main53801-32180iCV20,SV2#..HT198808-199007

main53801-32190iCV20,SV2#..HT198808-199007

main53801-32200iVZV20..HT198808-199007

53802FENDER SUB-ASSY, FRONT LH

main53802-32060iSV22..SED..(VL,XT)198808-199007

main53802-32090iSV22..SED..(VL,XT)198808-199007

main53802-32110iSV22..SED..VL198808-198905

sub53802-32120

main53802-32110iSV22..XT199001-199007

sub53802-32120

main53802-32110iSV22..XT198808-199001

sub53802-32120

main53802-32110iSV22..SED..VL198905-199007

sub53802-32120

main53802-32110iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

sub53802-32120

main53802-32120iSV22..SED..VL198905-199007

main53802-32120iSV22..SED..VL198808-198905

main53802-32120iSV22..XT198808-199001

main53802-32120iCV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main53802-32120iSV22..XT199001-199007

main53802-32140iVZV20..HT198808-199007

main53802-32170iCV20,SV2#..HT198808-199007

main53802-32180iCV20,SV2#..HT198808-199007

main53802-32190iVZV20..HT198808-199007

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-32020iCV20,SV2#;VZV20..SED198808-199007

main53835-32030iVZV20..HT198808-199007

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-32020iCV20,SV2#;VZV20..SED198808-199007

main53835-32030iVZV20..HT198808-199007

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-32020iCV20,SV2#,VZV20..SED198808-199007

main53866-32030iCV20,SV2#,VZV20..HT198808-199007

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-32020iCV20,SV2#,VZV20..SED198808-199007

main53867-32030iCV20,SV2#,VZV20..HT198808-199007

53875ALINER, FRONT FENDER, RH

main53875-32020iCV20,SV2#,VZV20198808-199007

53876ALINER, FRONT FENDER, LH

main53876-32020iCV20,SV2#,VZV20198808-199007

53879ARETAINER, FRONT FENDER LINER

main53879-14010iCV20,SV2#,VZV20198808-199007

53882BSEAL, FRONT FENDER, RH

main53882-32020iCV20,SV2#,VZV20198808-199007

53883BSEAL, FRONT FENDER, LH

main53882-32020iCV20,SV2#,VZV20198808-199007

53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2

main53888-32010iCV20,SV2#;VZV20..SED198808-199007

main53888-32020iVZV20..HT198808-199007

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-32010iCV20,SV2#;VZV20..SED198808-199007

main53889-32020iVZV20..HT198808-199007

53899BSUPPORT, FRONT FENDER PANEL

main53899-32010iCV20,SV2#,VZV20198808-199007

53903BPANEL SUB-ASSY, FRONT END

main53903-32050iVZV20..SED198808-199007

main53903-32060iCV20,SV2#..SED198808-199007

53911PANEL, FRONT VALANCE

main53901-32010iVZV20..SED198808-199007

main53901-32020iSV22..SED..(LT,VC,VL,XT)198808-199007

main53901-32040iCV20,SV2#..HT198808-199007

main53901-32060iSV22..SED..VL198808-198905

main53901-32060iSV22..XT198808-199001

main53901-32060iSV22..SED..VL198905-199007

main53901-32060iSV22..XT199001-199007

main53901-32060iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main53901-32070iVZV20..HT198808-198906

sub53901-32080

main53901-32080iVZV20..HT198906-199007

9015950069

main90159-50069

9015960175

main90159-60175

9018906006

main90189-06006

9018906013

main90189-06013

9018906049

main90189-06049

9018906065

main90189-06065

9046706074

main90467-06074

9046708011

main90467-08011

9046711028

main90467-11028

9046711039

main90467-11039

9095001543

main90950-01543

91656A0618

main91656-A0618

9166140616

main91661-40616

9166540616

main91665-40616

41 parts on this diagram · 1 diagram in section
