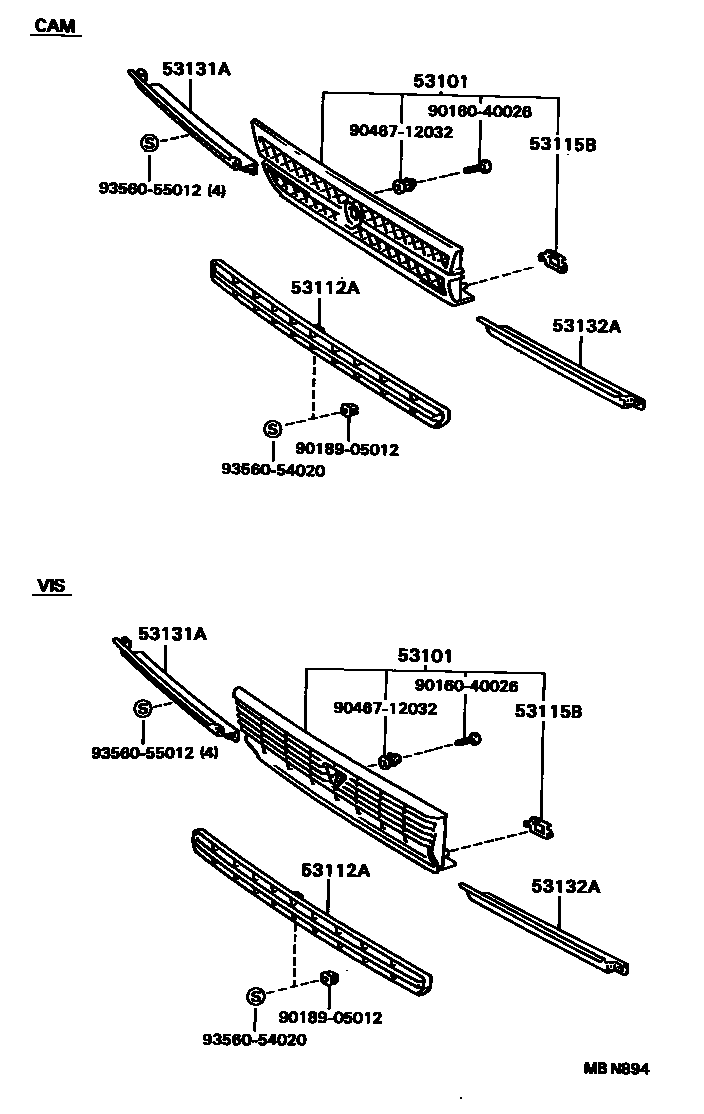

RADIATOR GRILLE

0001 1 0002 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-32110iVZV20..HT198808-199007

main53101-32130iVZV20..SED198808-199007

main53101-32140iCV20,SV2#..CAM198808-199007

main53101-32150iCV20,SV2#..VIS..SED198808-199007

main53101-32160iCV20,SV2#..HT198808-199007

53112AGRILLE, RADIATOR, LOWER

main53112-32030iSV22..SED..VL198905-199007

main53112-32030iSV22..SED..VL198808-198905

main53112-32030iSV22..XT198808-199001

main53112-32030iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main53112-32030iSV22..XT199001-199007

main53112-32040iCV20,SV2#..HT198808-199007

main53112-32050iVZV20..HT198808-199007

sub53112-32070

53115BBRACKET, RADIATOR GRILLE

main53115-32010iCV20,SV2#..SED198808-199007

53131ADOOR, HEADLAMP, RH

main53131-32100iVZV20..SED198808-199007

main53131-32110iCV20,SV2#..SED198808-199007

main53131-32120iCV20,SV2#..HT198808-199007

main53131-32130iVZV20..HT198808-199007

53132ADOOR, HEADLAMP, LH

main53132-32100iVZV20..SED198808-199007

main53132-32110iCV20,SV2#..SED198808-199007

main53132-32120iCV20,SV2#..HT198808-199007

main53132-32130iVZV20..HT198808-199007

9016040026

main90160-40026

9018905012

main90189-05012

9046712032

main90467-12032

9356054020

main93560-54020

9356055012

main93560-55012

10 parts on this diagram · 3 diagrams in section
