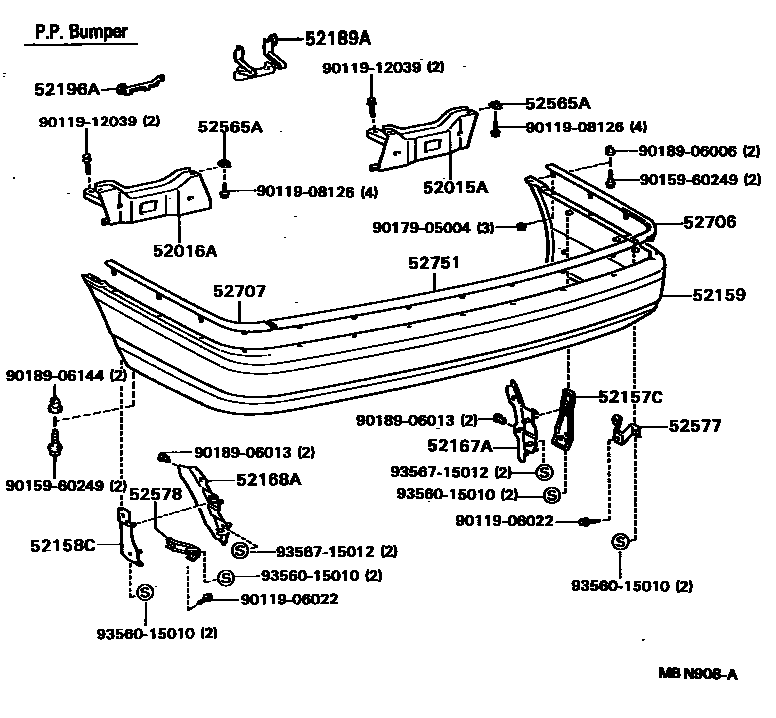

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-32070iSV22..SED..(LT,VC,VL,XT)198808-199007

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-32010iSV22..SED..(LT,VC,VL,XT)198808-199007

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-32050iSV22..SED..VL198905-199007

main52157-32050iSV22..SED..VL198808-198905

main52157-32050iSV22..XT198808-199001

main52157-32050iCV20,SV21;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52157-32050iSV22..XT199001-199007

main52157-32060iSV22..SED..(LT,VC,VL,XT)198808-199007

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-32030iSV22..SED..VL198808-198905

main52158-32030iSV22..XT198808-199001

main52158-32030iCV20,SV21;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52158-32030iSV22..XT199001-199007

main52158-32030iSV22..SED..VL198905-199007

main52158-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

52159COVER, REAR BUMPER

main52159-32150-03iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

GRAY METALLIC,167

sub52159-32909

main52159-32150-03iSV22..XT199001-199007

sub52159-32909

main52159-32150-03iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-03iSV22..SED..VL198905-199007

sub52159-32909

main52159-32150-03iSV22..XT198808-199001

sub52159-32909

main52159-32150-08iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

SUPER WHITE 2,040

sub52159-32909

main52159-32150-08iSV22..XT199001-199007

sub52159-32909

main52159-32150-08iSV22..SED..VL198905-199007

sub52159-32909

main52159-32150-08iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-08iSV22..XT198808-199001

sub52159-32909

main52159-32150-12iSV22..XT199001-199007

sub52159-32909

main52159-32150-12iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-12iSV22..SED..VL198905-199007

sub52159-32909

main52159-32150-12iSV22..XT198808-199001

sub52159-32909

main52159-32150-12iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

RED MICA,3H4

sub52159-32909

main52159-32150-14iSV22..XT198808-199001

sub52159-32909

main52159-32150-14iSV22..XT199001-199007

sub52159-32909

main52159-32150-14iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-14iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

BLACKISH BLUE MICA M,8E4

sub52159-32909

main52159-32150-14iSV22..SED..VL198905-199007

sub52159-32909

main52159-32150-15iSV21..SED..(GT,VX,ZX)198808-199007

LIGHT BEIGE M,29J ,4K1

sub52159-32909

main52159-32150-15iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-15iSV22..XT198808-199001

sub52159-32909

main52159-32150-15iSV21..SED..(GT,VX,ZX)198808-199007

LIGHT BEIGE M,4K1

sub52159-32909

main52159-32150-15iSV22..SED..VL198905-199007

sub52159-32909

main52159-32150-15iSV22..XT199001-199007

sub52159-32909

main52159-32150-23iSV22..XT199001-199007

sub52159-32909

main52159-32150-23iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

SILVER M,173

sub52159-32909

main52159-32150-23iSV22..SED..VL198808-198905

sub52159-32909

main52159-32150-23iSV22..XT198808-199001

sub52159-32909

main52159-32150-23iSV22..SED..VL198905-199007

sub52159-32909

main52159-32170iSV22..SED..(LT,VC,VL,XT)198808-199007

main52159-32190-03iCV20,SV2#..HT198808-199007

GRAY METALLIC,167

sub52159-32909

main52159-32190-08iCV20,SV2#..HT198808-199007

SUPER WHITE 2,040

sub52159-32909

main52159-32190-12iCV20,SV2#..HT198808-199007

RED MICA,3H4

sub52159-32909

main52159-32190-15iCV20,SV2#..HT198808-199007

LIGHT BEIGE M,4K1

sub52159-32909

main52159-32190-18iCV20,SV22..VL198901-198910

sub52159-32909

main52159-32190-23iCV20,SV2#..HT198808-199007

SILVER M,173

sub52159-32909

main52159-32190-24iCV20,SV2#..HT198808-199007

BLACKISH BLUE MICA M,8E4

sub52159-32909

main52159-32190-25iSV21..HT..(GT,VX)198808-199007

PEARL FRAGRANCE T0 2,29J

sub52159-32909

main52159-32190-28iSV25..HT198910-199007

sub52159-32909

main52159-32190-28iCV20,SV21,22..HT..(VL,VX)198905-199001

sub52159-32909

main52159-32190-33iSV21..HT..(GT,VX)198808-199007

M GRAY M,20K

sub52159-32909

main52159-32190-38iCV20,SV22..HT..VL199001-199007

sub52159-32909

main52159-32190-43iSV21..HT..VX199001-199003

sub52159-32909

main52159-32220-03iVZV20..SED198808-199007

SILVER M,173

sub52159-32911

main52159-32220-05iVZV20..SED198808-199007

LIGHT BEIGE M,29J ,4K1

sub52159-32911

main52159-32220-08iVZV20..SED198808-199007

SUPER WHITE 2,040

sub52159-32911

main52159-32220-13iVZV20..SED198808-199007

GRAY M,167

sub52159-32911

main52159-32250-03iVZV20..HT198808-199007

SILVER M,173

sub52159-32913

main52159-32250-04iVZV20..HT198808-199007

BLACKISH BLUE MICA M,8E4

sub52159-32913

main52159-32250-05iVZV20..HT198808-199007

LIGHT BEIGE M,4K1

sub52159-32913

main52159-32250-08iVZV20..HT198808-199007

SUPER WITE 2,040

sub52159-32913

main52159-32250-13iVZV20..HT198808-199007

GRAY M,167

sub52159-32913

main52159-32250-15iVZV20..HT198808-199007

PEARL FRAGRANCE T0 2,29J

sub52159-32913

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-32020iCV20,SV2#,VZV20198808-199007

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-32020iCV20,SV2#,VZV20198808-199007

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-32010iCV20,SV2#..SED198808-199007

main52189-32020iCV20,SV2#..HT198808-199007

52196APROTECTOR, REAR BUMPER ARM EDGE, LH

main52196-32030iCV20,SV2#198808-199007

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52565-32030iVZV20198808-199007

main52565-32040iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52565-32040iSV22..SED..VL198808-198905

main52565-32040iSV22..XT198808-199001

main52565-32040iSV22..SED..VL198905-199007

main52565-32040iSV22..XT199001-199007

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-32030iSV22..SED..VL198808-198905

main52706-32030iSV22..XT199001-199007

main52706-32030iSV22..XT198808-199001

main52706-32030iSV22..SED..VL198905-199007

main52706-32030iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52706-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52706-32050iSV22..SED..(LT,VC,VL,XT)198901-199007

main52706-32060iSV22..XT199001-199007

sub52706-32030

main52706-32060iSV22..SED..VL198901-198905

sub52706-32030

main52706-32060iSV22..XT198901-199001

sub52706-32030

main52706-32060iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198901-199007

sub52706-32030

main52706-32060iSV22..SED..VL198905-199007

sub52706-32030

52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-32030iSV22..SED..VL198808-198905

main52707-32030iSV22..XT199001-199007

main52707-32030iSV22..XT198808-199001

main52707-32030iSV22..SED..VL198905-199007

main52707-32030iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52707-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52707-32050iSV22..SED..(LT,VC,VL,XT)198901-199007

main52707-32060iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198901-199007

sub52707-32030

main52707-32060iSV22..XT198901-199001

sub52707-32030

main52707-32060iSV22..SED..VL198905-199007

sub52707-32030

main52707-32060iSV22..SED..VL198901-198905

sub52707-32030

main52707-32060iSV22..XT199001-199007

sub52707-32030

52751MOULDING, REAR BUMPER

main52751-32030iSV22..SED..VL198808-198905

main52751-32030iSV22..XT198808-199001

main52751-32030iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198808-199007

main52751-32030iSV22..SED..VL198905-199007

main52751-32030iSV22..XT199001-199007

main52751-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52751-32050iVZV20..HT198808-199007

main52751-32060iSV22..SED..(LT,VC,VL,XT)198901-199007

main52751-32070iCV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE198901-199007

sub52751-32030

main52751-32070iSV22..SED..VL198901-198905

sub52751-32030

main52751-32070iSV22..XT199001-199007

sub52751-32030

main52751-32070iSV22..XT198901-199001

sub52751-32030

main52751-32070iSV22..SED..VL198905-199007

sub52751-32030

9011906022

main90119-06022

9011908126

main90119-08126

9011912039

main90119-12039

9015960249

main90159-60249

9017905004

main90179-05004

9018906006

main90189-06006

9018906013

main90189-06013

9018906144

main90189-06144

9356015010

main93560-15010

9356715012

main93567-15012

25 parts on this diagram · 4 diagrams in section
