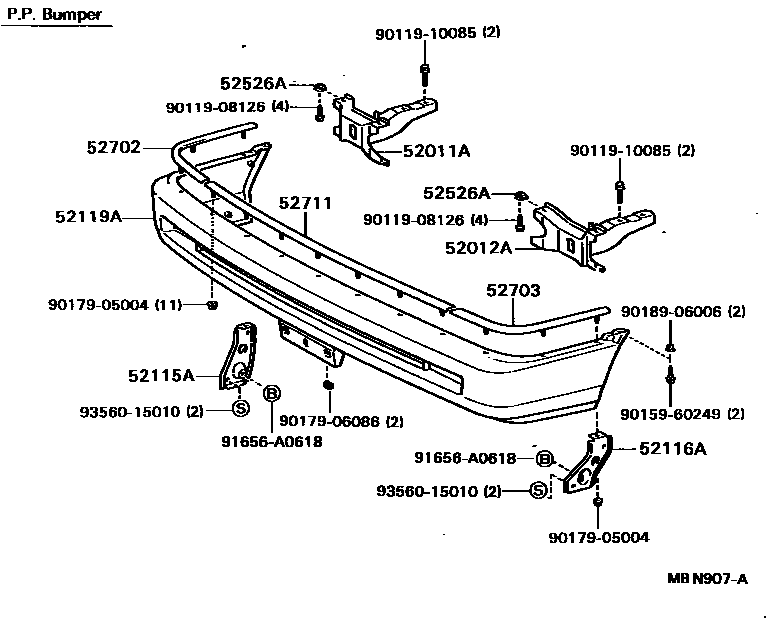

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32070iSV22..SED..(LT,VC,VL,XT)198808-199007

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32050iSV22..SED..(LT,VC,VL,XT)198808-199007

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52061-32020iCV20,SV2#..HT198808-199007

main52061-32030iVZV20..SED198808-199007

main52115-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52115-32070iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52115-32070iSV22..XT199001-199007

main52115-32070iSV22..XT198808-199001

main52115-32070iSV22..SED..VL198808-198905

main52115-32070iSV22..SED..VL198905-199007

main52115-32090iVZV20..HT198808-199007

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52062-32020iCV20,SV2#..HT198808-199007

main52062-32030iVZV20..SED198808-199007

main52116-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52116-32070iSV22..XT199001-199007

main52116-32070iSV22..SED..VL198808-198905

main52116-32070iSV22..XT198808-199001

main52116-32070iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52116-32070iSV22..SED..VL198905-199007

main52116-32090iVZV20..HT198808-199007

52119ACOVER, FRONT BUMPER

main52119-32210-03iVZV20..SED198808-199007

SILVER M,173

main52119-32210-05iVZV20..SED198808-199007

LIGHT BEIGE M,29J ,4K1

main52119-32210-08iVZV20..SED198808-199007

SUPER WHITE 2,040

main52119-32210-13iVZV20..SED198808-199007

GRAY M,167

main52119-32230iSV22..SED..(LT,VC,VL,XT)198808-199007

main52119-32290-02iSV22..SED..VL198905-199007

main52119-32290-02iSV22..XT199001-199007

main52119-32290-02iSV22..SED..VL198808-198905

main52119-32290-02iSV22..XT198808-199001

main52119-32290-02iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

RED MICA,3H4

main52119-32290-03iSV22..SED..VL198808-198905

main52119-32290-03iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

SILVER M,173

main52119-32290-03iSV22..XT199001-199007

main52119-32290-03iSV22..XT198808-199001

main52119-32290-03iSV22..SED..VL198905-199007

main52119-32290-04iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

BLACKISH BLUE MICA M,8E4

main52119-32290-04iSV22..SED..VL198808-198905

main52119-32290-04iSV22..XT198808-199001

main52119-32290-04iSV22..XT199001-199007

main52119-32290-04iSV22..SED..VL198905-199007

main52119-32290-05iSV22..XT199001-199007

main52119-32290-05iSV22..SED..VL198905-199007

main52119-32290-05iSV22..SED..VL198808-198905

main52119-32290-05iSV21..SED..(GT,VX,ZX)198808-199007

LIGHT BEIGE M,29J ,4K1

main52119-32290-05iSV21..SED..(GT,VX,ZX)198808-199007

LIGHT BEIGE M,4K1

main52119-32290-05iSV22..XT198808-199001

main52119-32290-08iSV22..XT199001-199007

main52119-32290-08iSV22..XT198808-199001

main52119-32290-08iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

SUPER WHITE 2,040

main52119-32290-08iSV22..SED..VL198808-198905

main52119-32290-08iSV22..SED..VL198905-199007

main52119-32290-13iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

GRAY M,167

main52119-32290-13iSV22..SED..VL198905-199007

main52119-32290-13iSV22..XT198808-199001

main52119-32290-13iSV22..XT199001-199007

main52119-32290-13iSV22..SED..VL198808-198905

main52119-32300-02iCV20,SV2#..HT198808-199007

RED MICA,3H4

sub52119-32916

main52119-32300-03iCV20,SV2#..HT198808-199007

SILVER M,173

sub52119-32916

main52119-32300-04iCV20,SV2#..HT198808-199007

BLACKISH BLUE MICA M,8E4

sub52119-32916

main52119-32300-05iCV20,SV2#..HT198808-199007

LIGHT BEIGE M,4K1

sub52119-32916

main52119-32300-08iCV20,SV2#..HT198808-199007

SUPER WHITE 2,040

sub52119-32916

main52119-32300-13iCV20,SV2#..HT198808-199007

GRAY M,167

sub52119-32916

main52119-32300-15iSV21..HT..(GT,VX)198808-199007

PEARL FRAGRANCE T0 2,29J

sub52119-32916

main52119-32300-18iCV20,SV22..HT..VL198901-198910

sub52119-32916

main52119-32300-23iSV21..HT..(GT,VX)198808-199007

M GRAY M,20K

sub52119-32916

main52119-32300-28iSV25..HT198910-199007

sub52119-32916

main52119-32300-28iCV20,SV21,22..HT..(VL,VX)198905-199001

sub52119-32916

main52119-32300-33iSV21..HT..VX199001-199003

sub52119-32916

main52119-32300-38iCV20,SV22..HT..VL199001-199007

sub52119-32916

main52119-32320-03iVZV20..HT198808-199007

SILVER M,173

sub52119-32911

main52119-32320-04iVZV20..HT198808-199007

BLACKISH BLUE MICA M,8E4

sub52119-32911

main52119-32320-05iVZV20..HT198808-199007

LIGHT BEIGE M,4K1

sub52119-32911

main52119-32320-08iVZV20..HT198808-199007

SUPER WHITE 2,040

sub52119-32911

main52119-32320-13iVZV20..HT198808-199007

GRAY M,167

sub52119-32911

main52119-32320-15iVZV20..HT198808-199007

PEARL FRAGRANCE T0 2,29J

sub52119-32911

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-32040iVZV20..SED198808-199007

main52526-32060iCV20,SV2#..HT198808-199007

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32050iSV22..XT199001-199007

main52526-32050iSV22..XT198808-199001

main52526-32050iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52526-32050iSV22..SED..VL198808-198905

main52526-32050iSV22..SED..VL198905-199007

main52565-12040iSV22..SED..(LT,VC,VL,XT)198808-199007

52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH

main52702-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52702-32050iCV20,SV2#..HT198808-199007

main52702-32060iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52702-32060iSV22..SED..VL198808-198905

main52702-32060iSV22..XT198808-199001

main52702-32060iSV22..SED..VL198905-199007

main52702-32060iSV22..XT199001-199007

main52702-32070iCV20,SV2#..HT198812-199007

main52702-32090iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198901-199007

sub52702-32060

main52702-32090iSV22..SED..VL198901-198905

sub52702-32060

main52702-32090iSV22..SED..VL198905-199007

sub52702-32060

main52702-32090iSV22..XT199001-199007

sub52702-32060

main52702-32090iSV22..XT198901-199001

sub52702-32060

52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH

main52703-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

sub52703-32030

main52703-32050iCV20,SV2#..HT198808-199007

main52703-32060iSV22..SED..VL198905-199007

main52703-32060iSV22..SED..VL198808-198905

main52703-32060iSV22..XT198808-199001

main52703-32060iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52703-32060iSV22..XT199001-199007

main52703-32070iCV20,SV2#..HT198812-199007

sub52703-32050

main52703-32090iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198901-199007

sub52703-32060

main52703-32090iSV22..XT198901-199001

sub52703-32060

main52703-32090iSV22..SED..VL198901-198905

sub52703-32060

main52703-32090iSV22..SED..VL198905-199007

sub52703-32060

main52703-32090iSV22..XT199001-199007

sub52703-32060

52711MOULDING, FRONT BUMPER

main52711-32030iSV22..XT199001-199007

main52711-32030iSV22..SED..VL198808-198905

main52711-32030iSV22..XT198808-199001

main52711-32030iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main52711-32030iSV22..SED..VL198905-199007

main52711-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main52711-32050iCV20,SV2#..HT198808-199007

main52711-32060iVZV20..HT198808-199007

main52711-32070iCV20,SV2#..HT198812-199007

sub52711-32050

main52711-32090iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198901-199007

sub52711-32030

main52711-32090iSV22..XT199001-199007

sub52711-32030

main52711-32090iSV22..SED..VL198905-199007

sub52711-32030

main52711-32090iSV22..XT198901-199001

sub52711-32030

main52711-32090iSV22..SED..VL198901-198905

sub52711-32030

9011908126

main90119-08126

9011910085

main90119-10085

9015960249

main90159-60249

9017905004

main90179-05004

9017906086

main90179-06086

9018906006

main90189-06006

91656A0618

main91656-A0618

9356015010

main93560-15010

18 parts on this diagram · 5 diagrams in section
