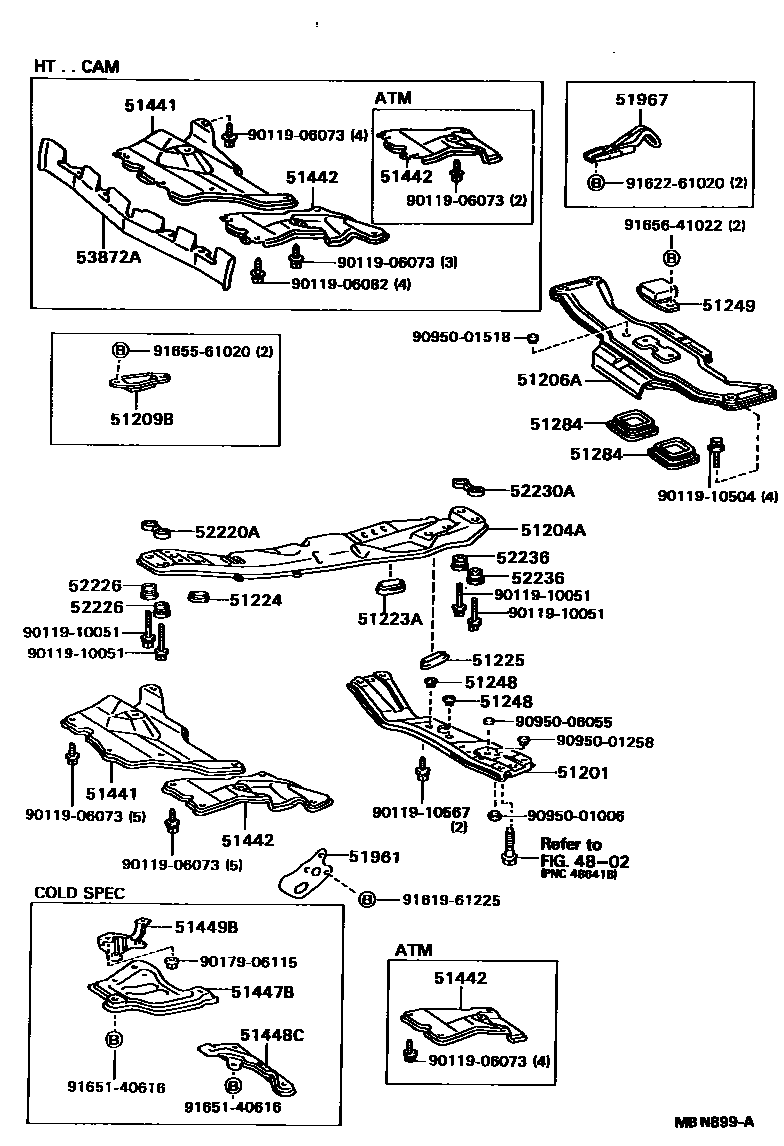

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32020iCV20,SV21,22,VZV20198808-199007

main51201-32030iSV25198808-199007

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32021iCV20,SV21,22,VZV20198808-198904

sub51204-32022

main51204-32022iCV20,SV21,22,VZV20198904-199004

sub51204-32024

sub90119-10567

main51204-32024iCV20,SV21,22,VZV20199004-199007

main51204-32041iSV25198808-199007

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20011iSV25198808-199007

main51206-32010iCV20,SV21,22,VZV20198808-199007

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-32010iCV20,SV22..4FC198808-199007

main51209-32030iSV25198808-199007

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iCV20,SV2#,VZV20198808-199007

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iCV20,SV21,22,VZV20198808-199007

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iCV20,SV21,22,VZV20198808-199007

main51225-32020iSV25198808-199007

51248SPACER, FLAME CROSSMEMBER

main51248-32010iCV20,SV21,22,VZV20198808-199004

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iCV20,SV21,22,VZV20198808-199007

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-32010iCV20,SV21,22,VZV20198808-199007

51441COVER, ENGINE UNDER, NO.1

main51441-32030iCV20,SV2#,VZV20198808-199007

51442COVER, ENGINE UNDER, NO.2

main51442-32030iCV20,SV2#,VZV20..5F198808-199007

main51442-32040iCV20,SV2#,VZV20..4FC198808-199007

51447BPROTECTOR, OIL PAN

main51447-32020iCV20,SV2#,VZV20198808-199007

51448CPROTECTER, OIL PAN, LH

main51448-32020iCV20,SV2#,VZV20198808-199007

51449BBRACKET, OIL PAN PROTECTOR

main51449-32020iCV20,SV2#,VZV20198808-199007

51961HOOK, NO.1

main51963-32020iCV20,SV2#,VZV20198808-199007

51967HOOK, TRANSPORT, REAR

main51095-32020iSV22..SED..(LT,VC,VL,XT)198808-199007

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32040iSV25198808-199007

main52220-32050iCV20,SV21,22,VZV20198808-199007

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iSV25198808-199007

main52226-32030iCV20,SV21,22,VZV20198808-199007

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32030iSV25198808-199007

main52230-32040iCV20,SV21,22,VZV20198808-199007

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32020iSV25198808-199007

main52236-32030iCV20,SV21,22,VZV20198808-199007

53872ADUCT, AIR, LOWER

main53872-32020iVZV20..HT198808-199007

9011906073

main90119-06073

9011906082

main90119-06082

9011910051

main90119-10051

9011910504

main90119-10504

9011910567

main90119-10567

9017906115

main90179-06115

9095001006

main90950-01006

9095001258

main90950-01258

9095001518

main90950-01518

9095006055

main90950-06055

9161961225

main91619-61225

9162261020

main91622-61020

9165140616

main91651-40616

9165561020

main91655-61020

9165641022

main91656-41022

38 parts on this diagram · 2 diagrams in section
